E202-00003
Wall Inlet
【MWM】WALL INLET FOR AC CAP
Donwload data
-

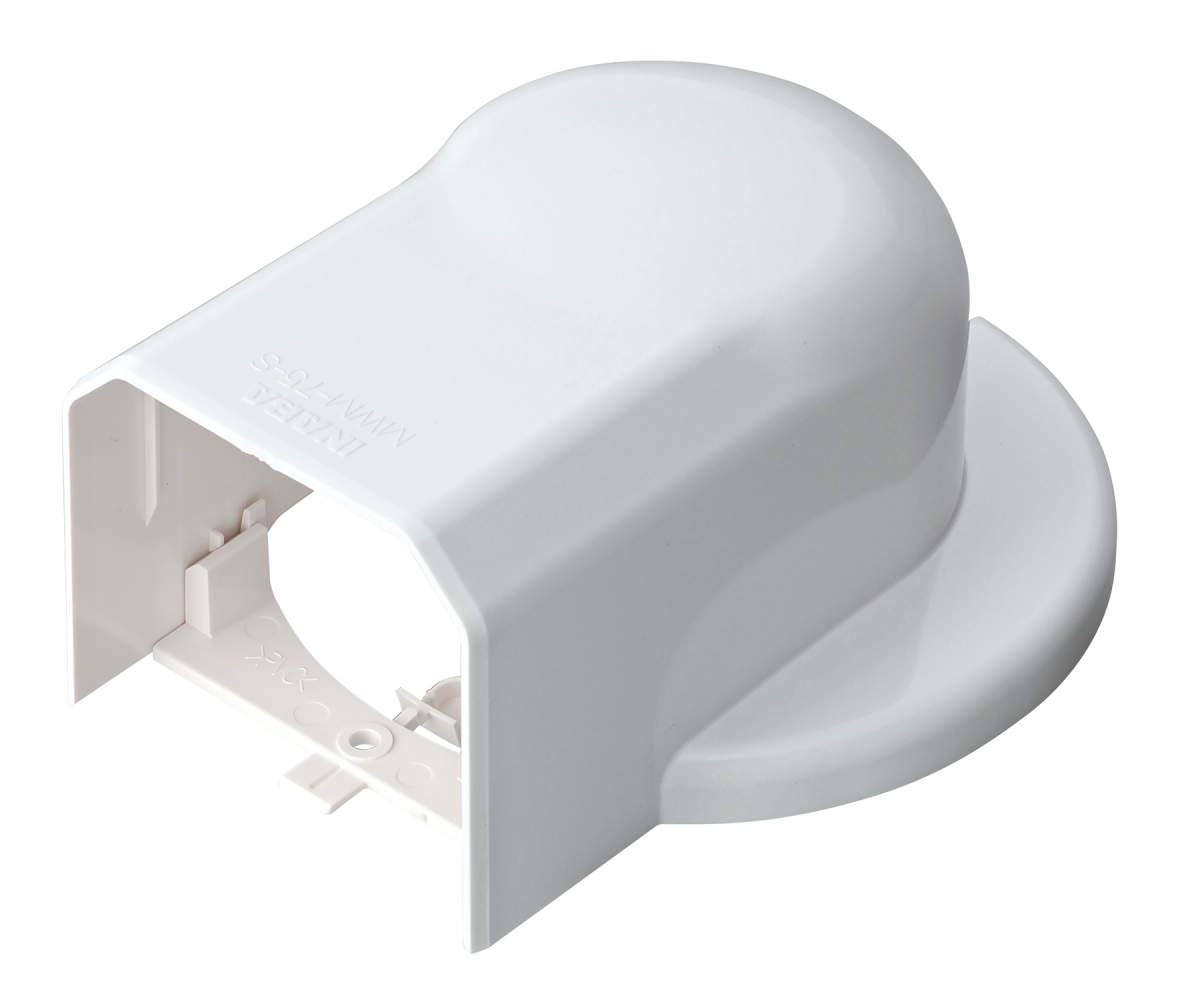

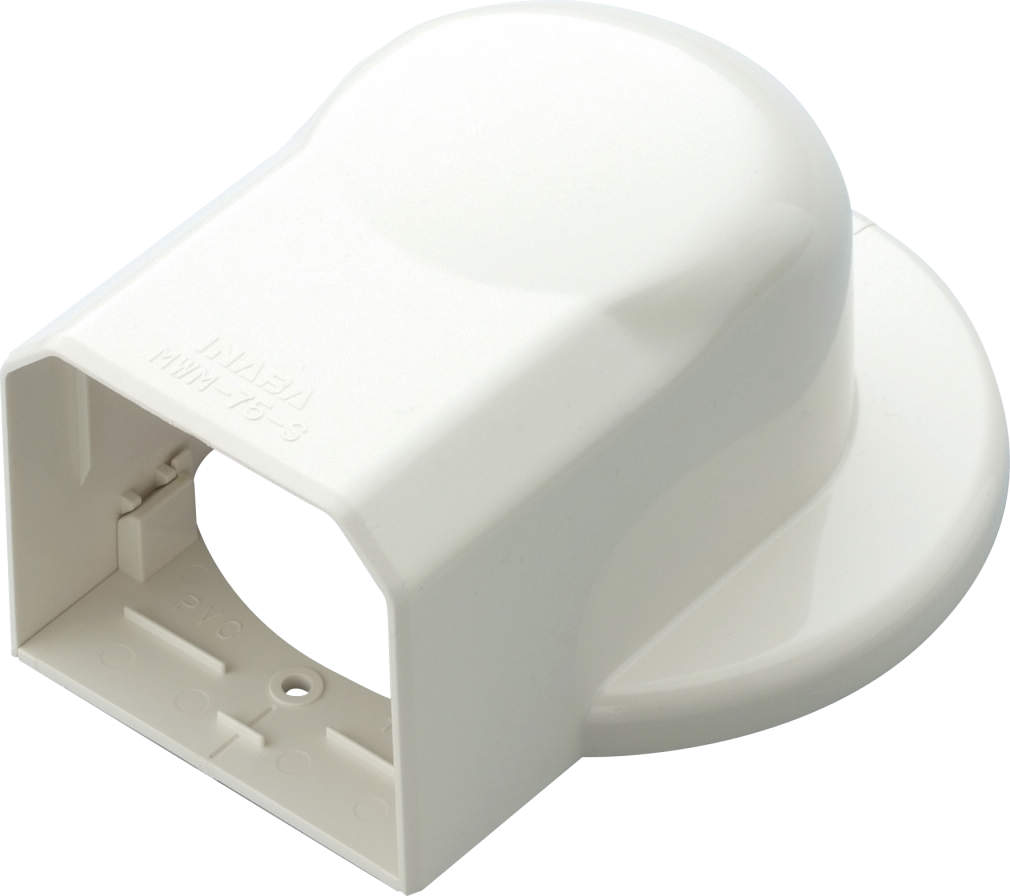

Product Image
Contact Us
Details
| Code number | Model number | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H (mm) | I (mm) | Applicable products | Applicable products: Others | A (inch) | B (inch) | C (inch) | D (inch) | E (inch) | F (inch) | G (inch) | H (inch) | I (inch) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 60874061115 | MWM-75-S-W | 80 | 68 | 126 | 154 | 71.5 | 26 | 102 | 75 | 128 | AC-67,75 | Others：Frange O.D. ～φ108mm＋Frange Height～8mm | 3 1/4 | 2 3/4 | 5 | 6 1/8 | 2 7/8 | 1 1/8 | 4 1/8 | 3 | 5 1/8 |
| 60874061125 | MWM-75-L-W | 80 | 68 | 146.5 | 177 | 71.5 | 27 | 114 | 75 | 151 | AC-67,75,100／WC-60N,65N,75N | Others：Frange O.D. ～φ136mm＋Frange Height～10mm | 3 1/4 | 2 3/4 | 5 7/8 | 7 | 2 7/8 | 1 1/8 | 4 1/2 | 3 | 6 |
| 60874061155 | MWM-85 | 90 | 73 | 146.5 | 177 | 76 | 27 | 119 | 85 | 151 | AC-67,75,100／WC-60N,65N,75N | Others：Frange O.D. ～φ136mm＋Frange Height～10mm | 3 5/8 | 2 7/8 | 5 7/8 | 7 | 3 | 1 1/8 | 4 3/4 | 3 3/8 | 6 |
- OBuild to order
- EEnd production
- SAs long as stock
