【SKF】45°FLAT ELBOW

E201-00010

45°Flat Ell

【SKF】45°FLAT ELBOW

Donwload data

Contact Us

Details

SKF_e.flg.eps
Code number Model number A (mm) B (mm) C (mm) D (mm) A (inch) B (inch) C (inch) D (inch)

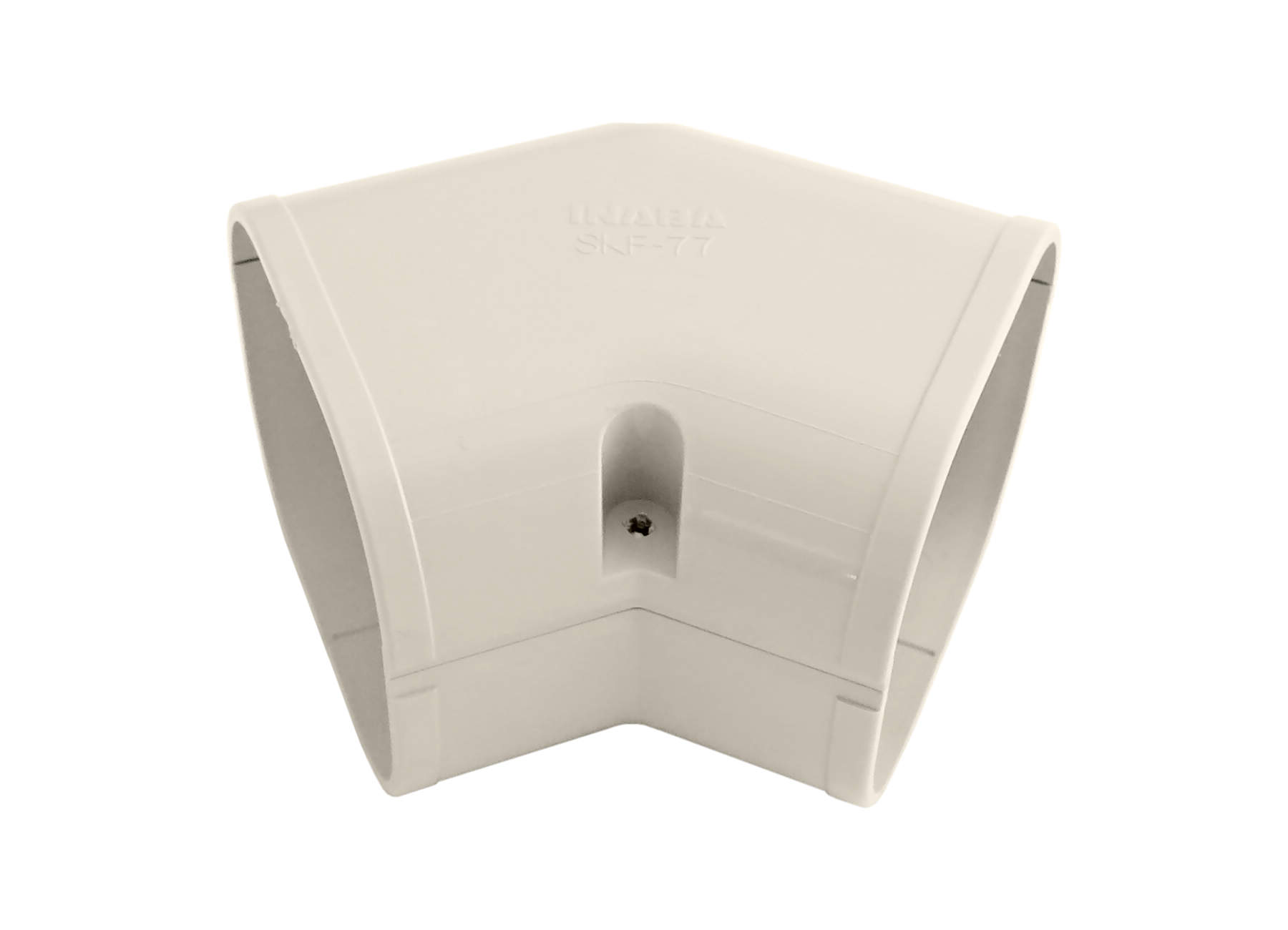

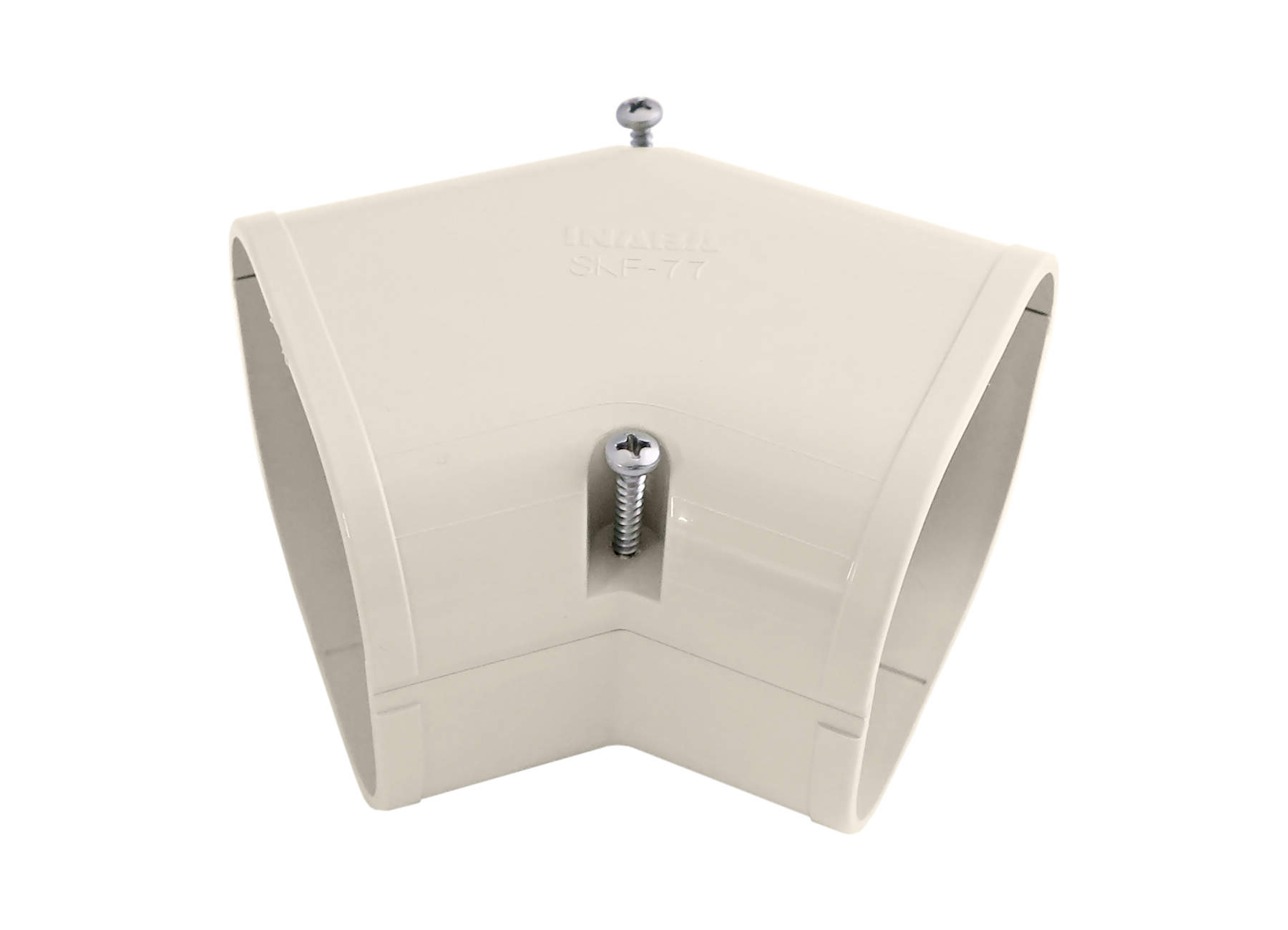

60874073122 SKF-77-I 82 68 65 33 3 1/4 2 3/4 2 5/8 1 3/8

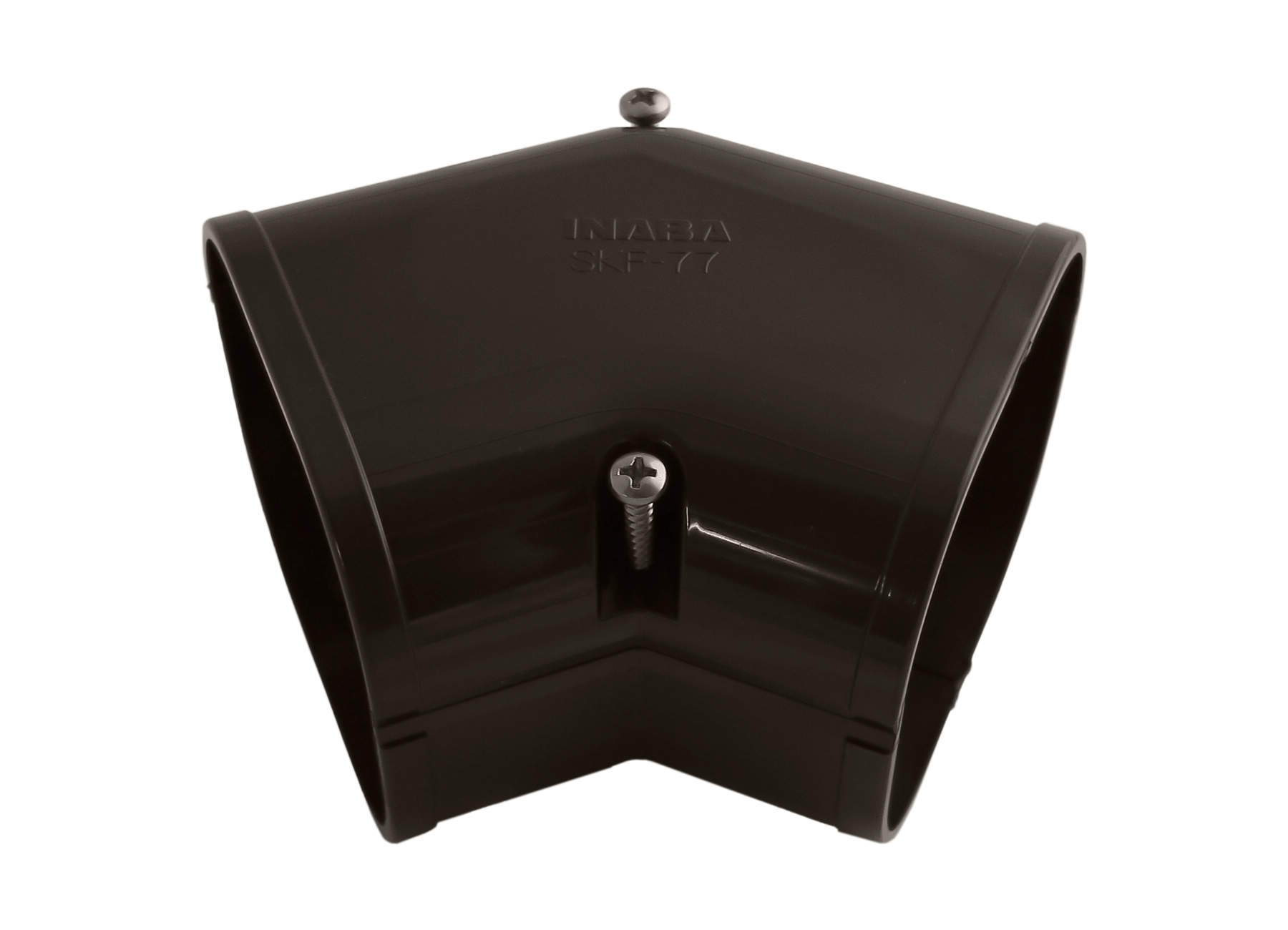

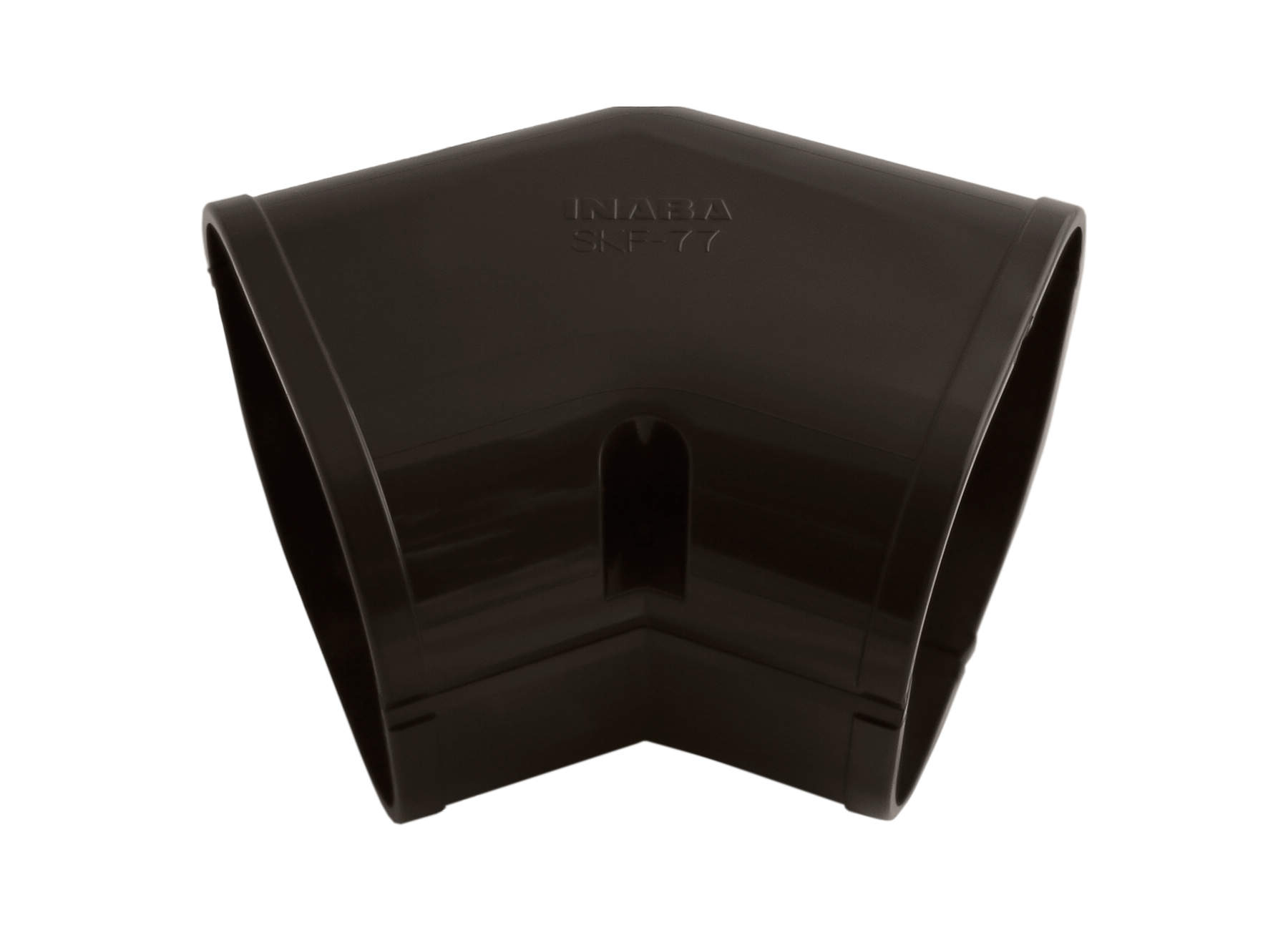

60874073123 SKF-77-B 82 68 65 33 3 1/4 2 3/4 2 5/8 1 3/8

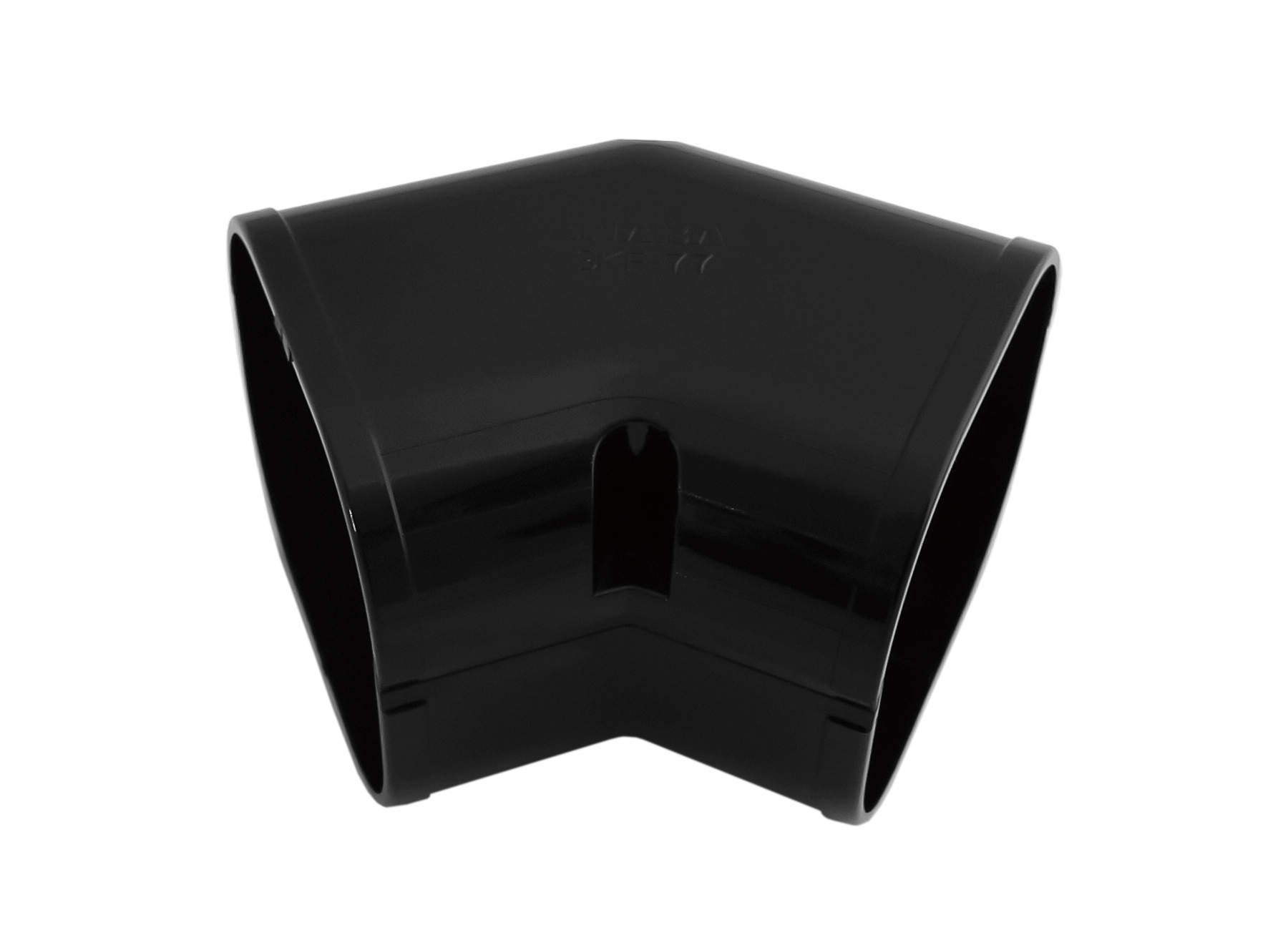

60874073124 SKF-77-K 82 68 65 33 3 1/4 2 3/4 2 5/8 1 3/8
60874073125 SKF-77-W 82 68 65 33 3 1/4 2 3/4 2 5/8 1 3/8

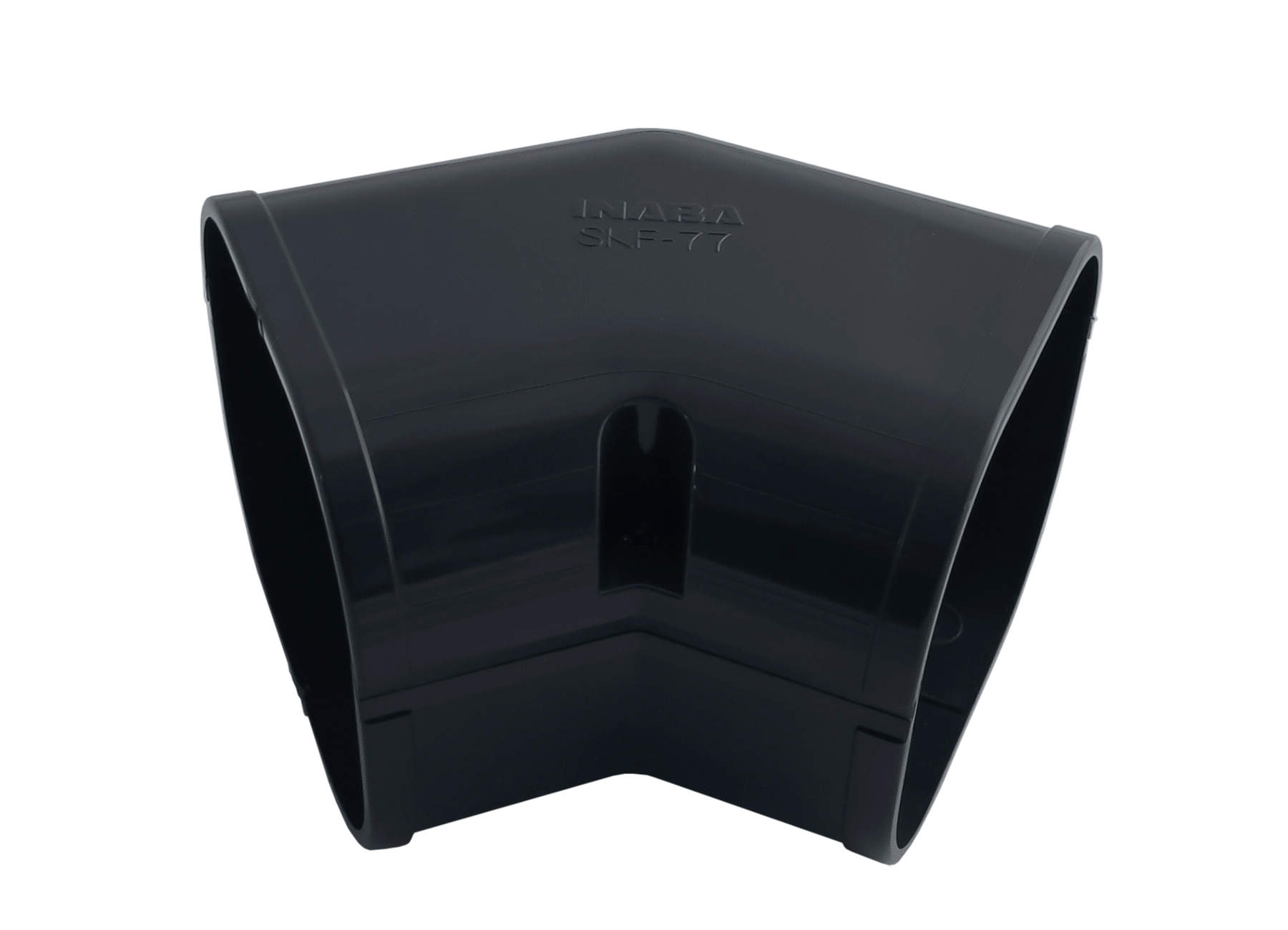

60874073126 SKF-77-A 82 68 65 33 3 1/4 2 3/4 2 5/8 1 3/8

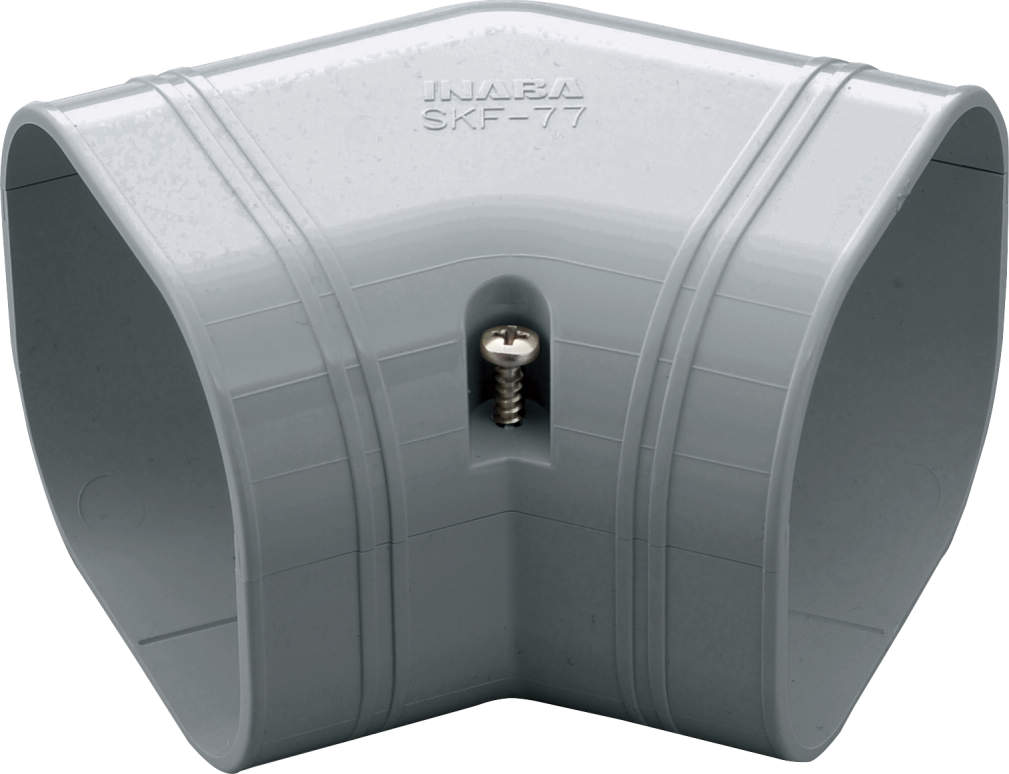

60874073127 SKF-77-G 82 68 65 33 3 1/4 2 3/4 2 5/8 1 3/8

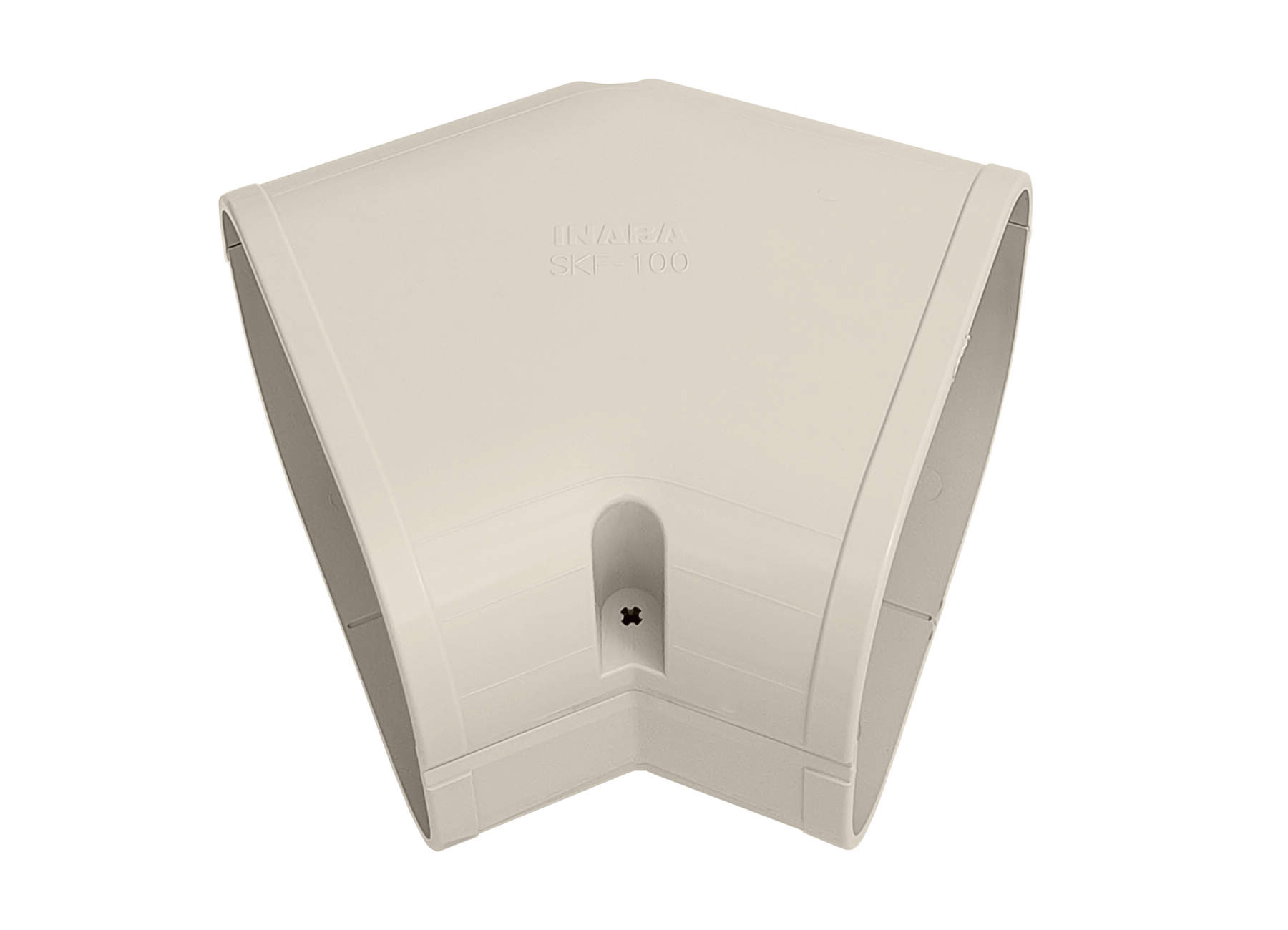

60874073132 SKF-100-I 107 75 75 33 4 1/4 3 3 1 3/8

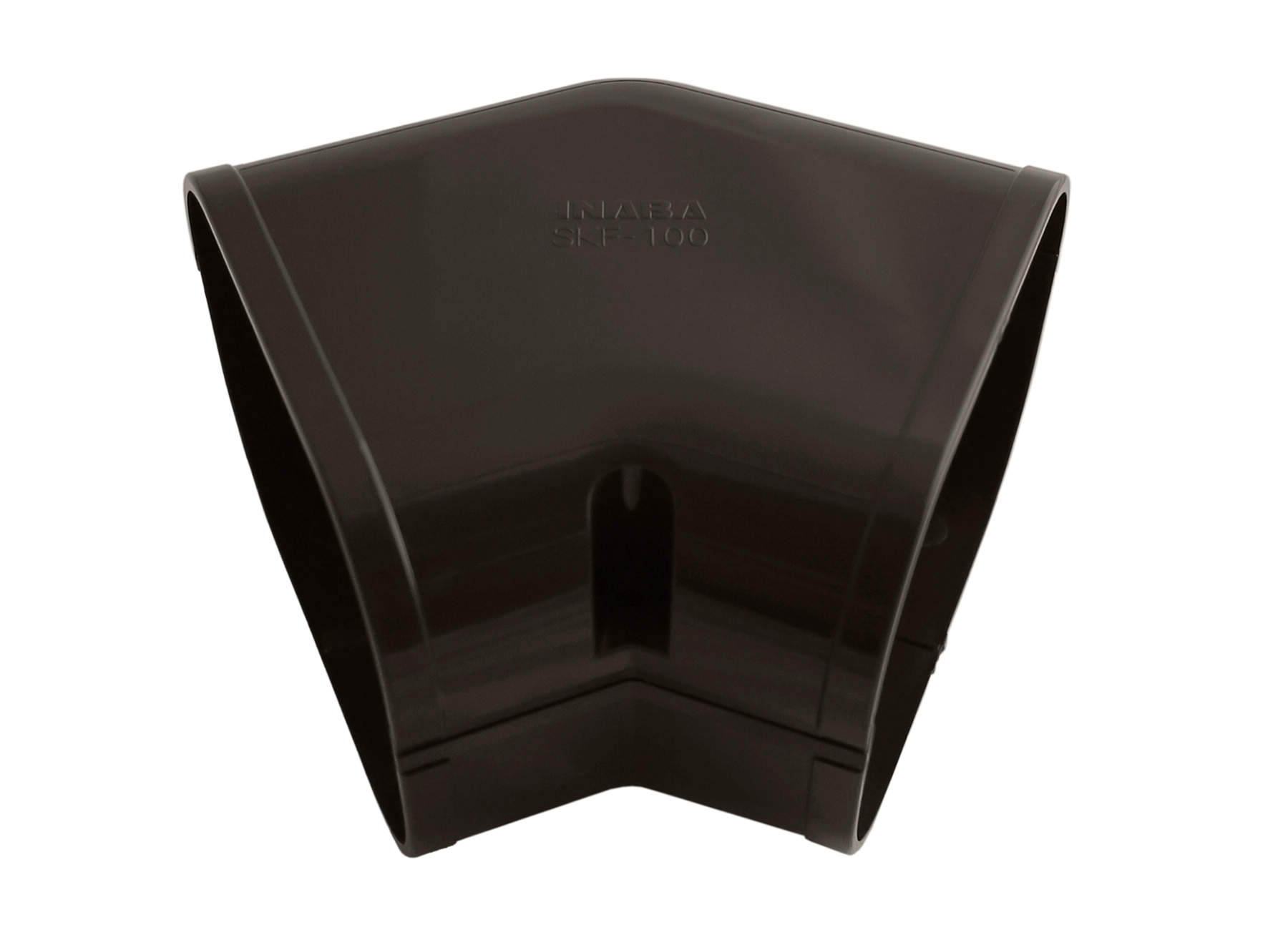

60874073133 SKF-100-B 107 75 75 33 4 1/4 3 3 1 3/8

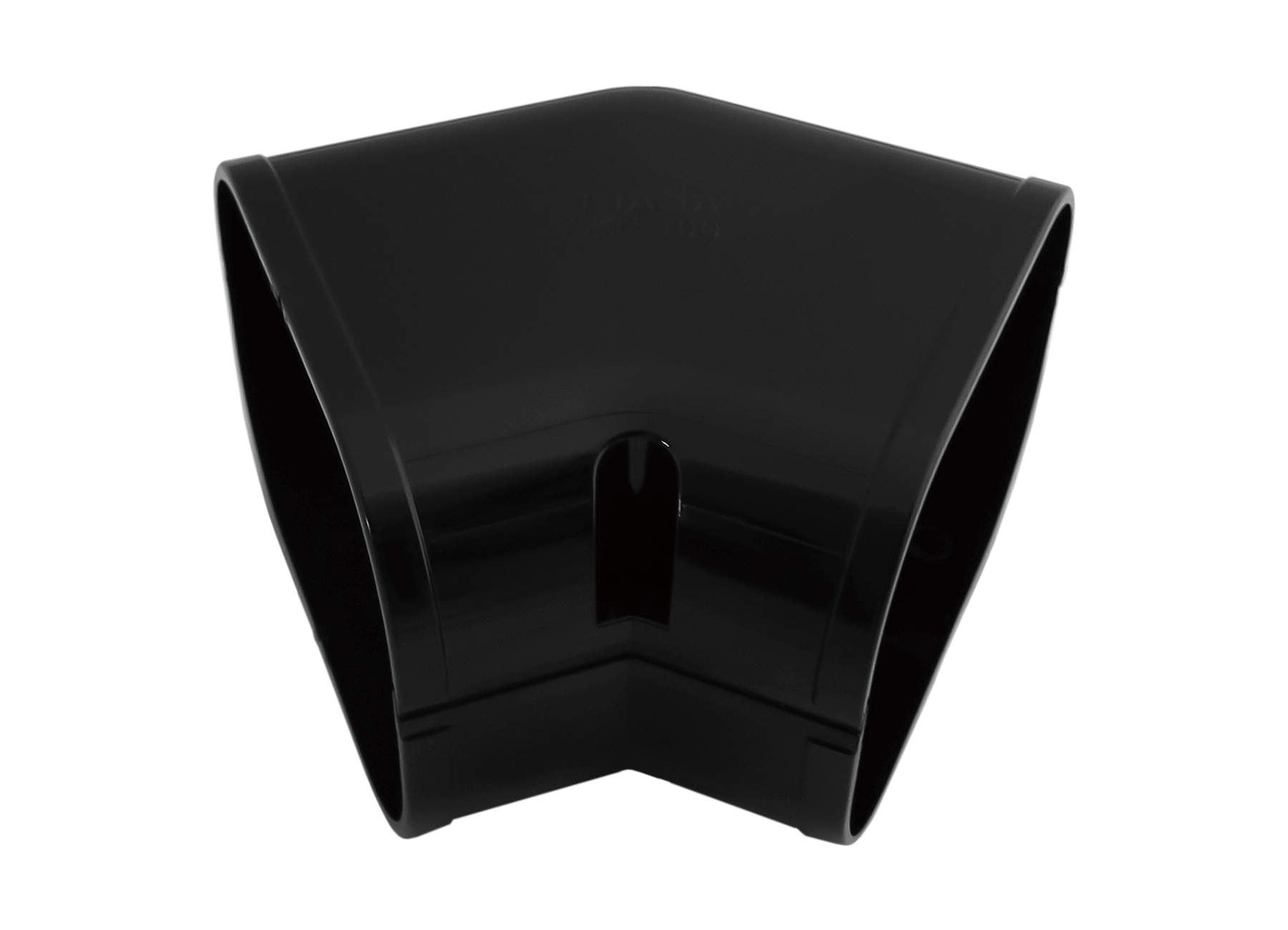

60874073134 SKF-100-K 107 75 75 33 4 1/4 3 3 1 3/8

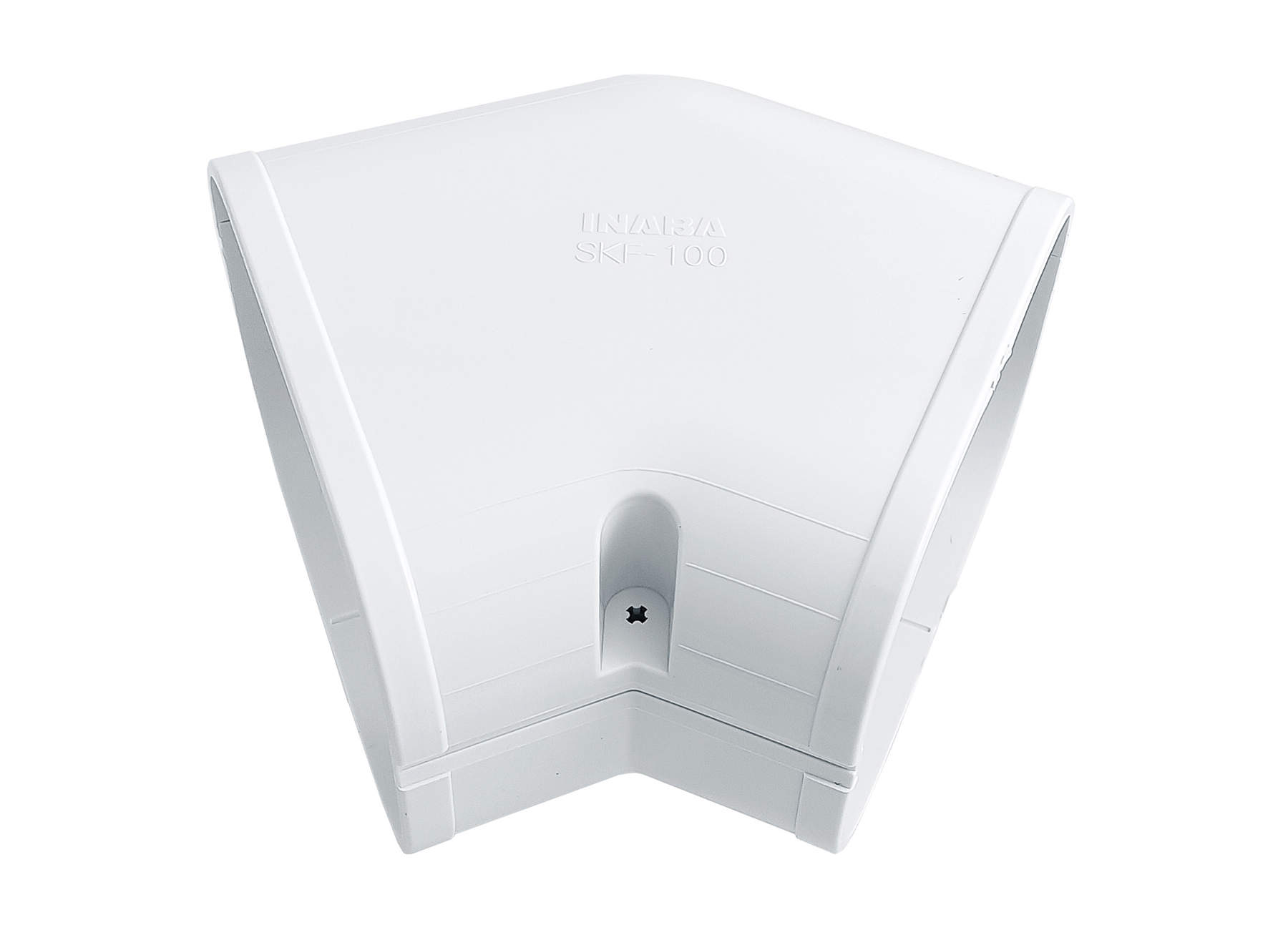

60874073135 SKF-100-W 107 75 75 33 4 1/4 3 3 1 3/8
60874073136 SKF-100-A 107 75 75 33 4 1/4 3 3 1 3/8
60874073137 SKF-100-G 107 75 75 33 4 1/4 3 3 1 3/8

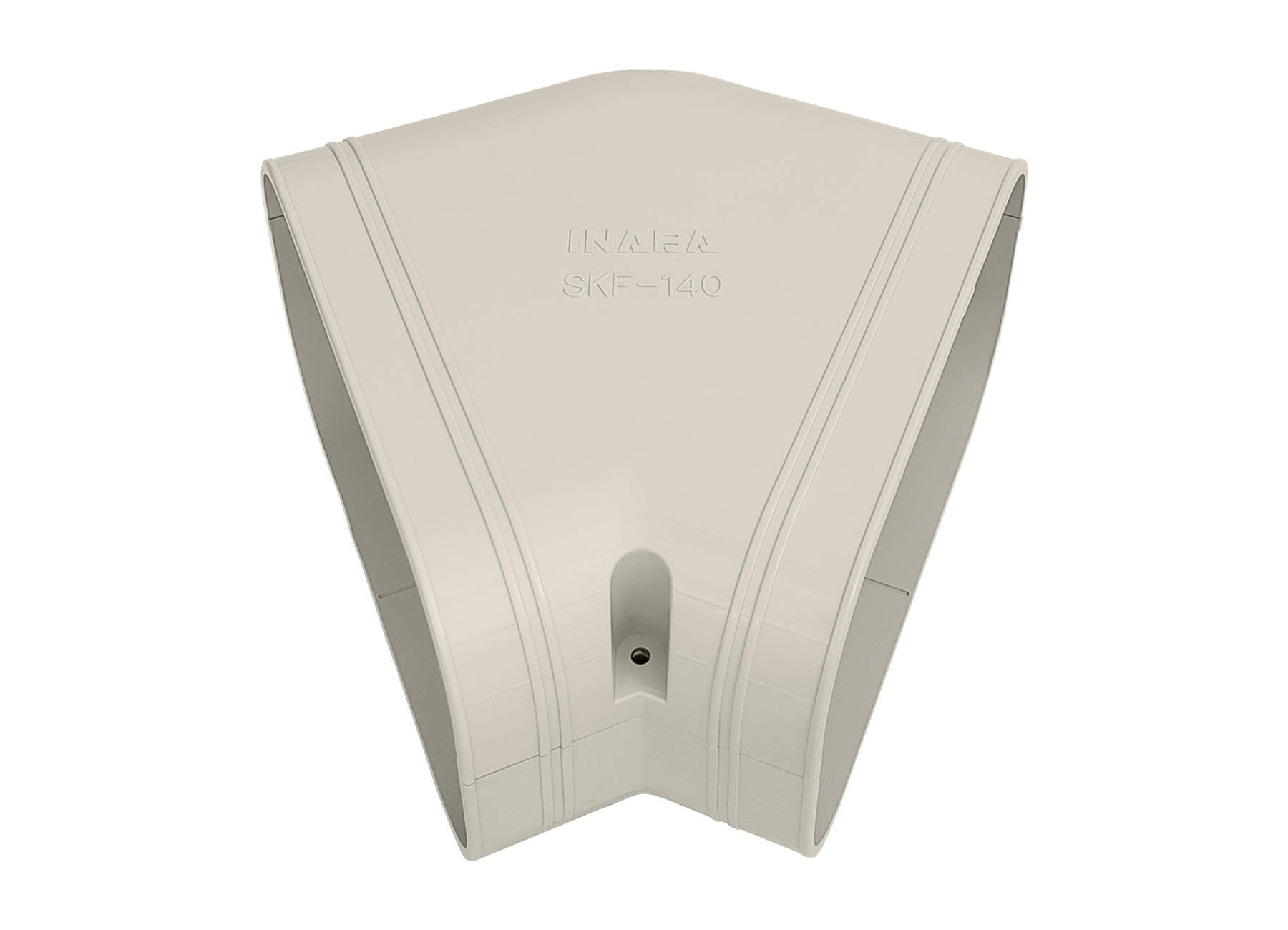

60874073142 SKF-140-I 147 85 92 33 5 7/8 3 3/8 3 5/8 1 3/8

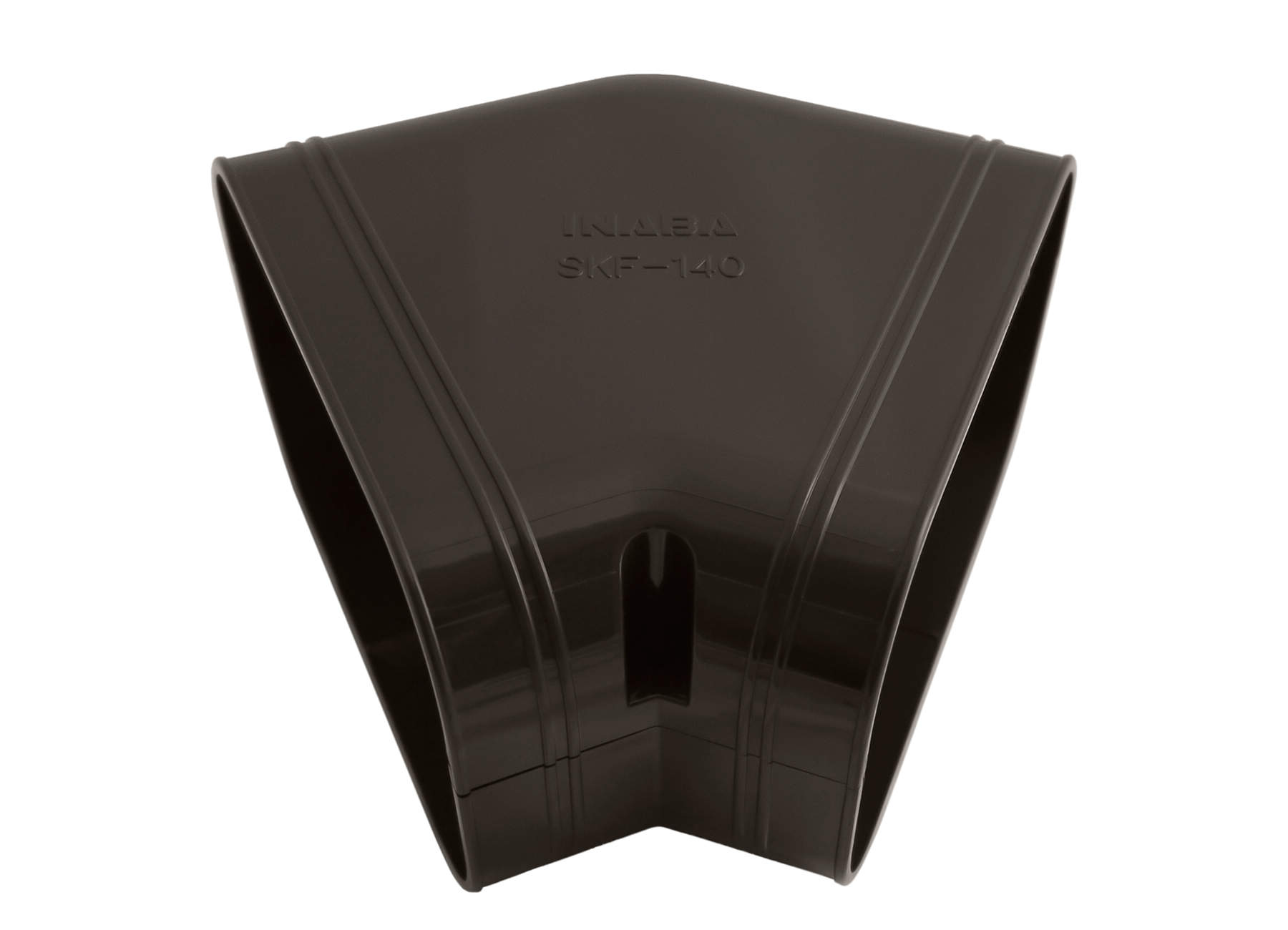

60874073143 SKF-140-B 147 85 92 33 5 7/8 3 3/8 3 5/8 1 3/8
60874073144 SKF-140-K 147 85 92 33 5 7/8 3 3/8 3 5/8 1 3/8

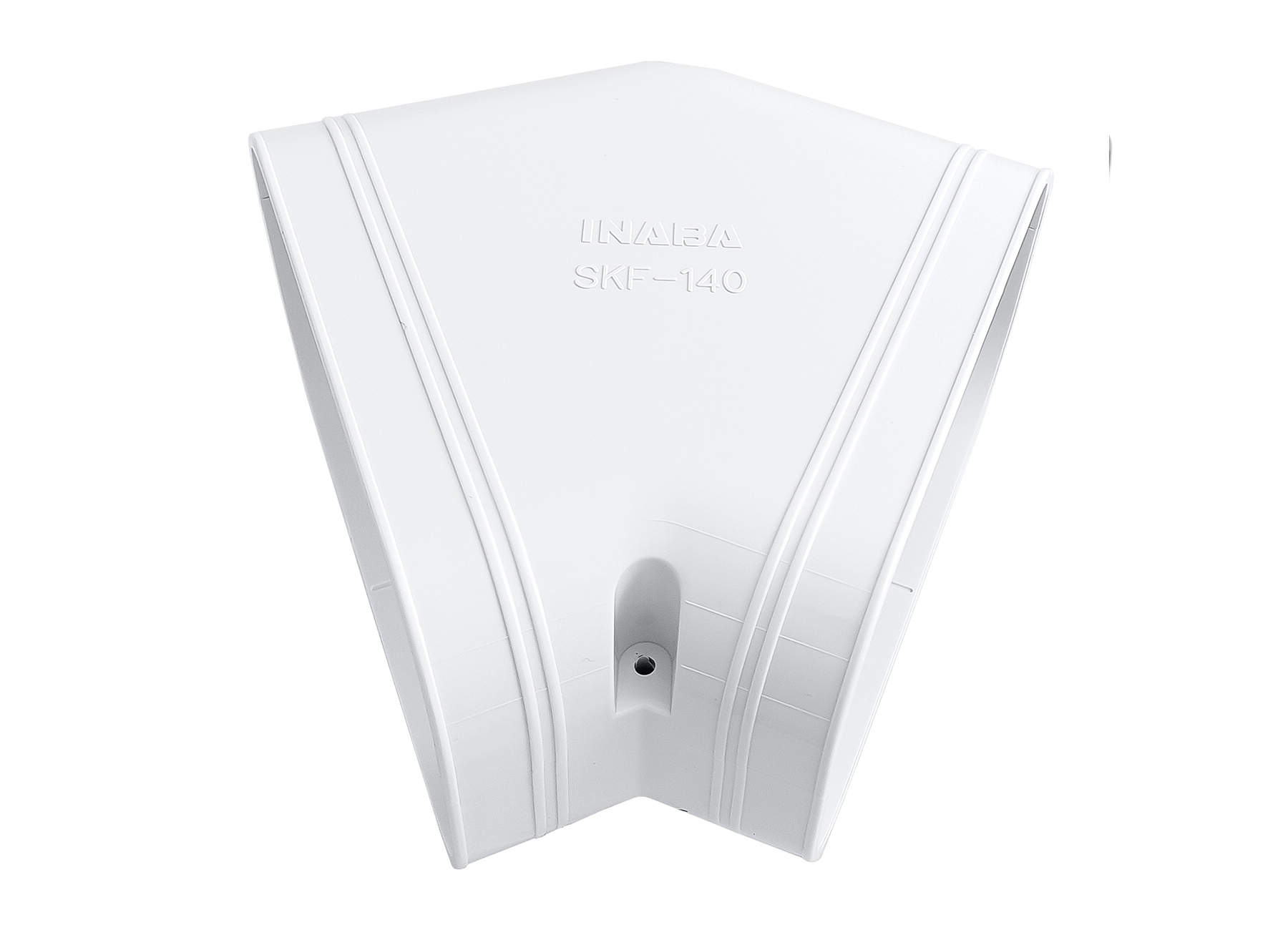

60874073145 SKF-140-W 147 85 92 33 5 7/8 3 3/8 3 5/8 1 3/8
60874073146 SKF-140-G 147 85 92 33 5 7/8 3 3/8 3 5/8 1 3/8
  • OBuild to order
  • EEnd production
  • SAs long as stock
