【SDR】REDUCER

E201-00017

Reducer

【SDR】REDUCER

Donwload data

Contact Us

Details

SDR_e.flg.eps
Code number Model number A (mm) B (mm) C (mm) D (mm) E (mm) A (inch) B (inch) C (inch) D (inch) E (inch)

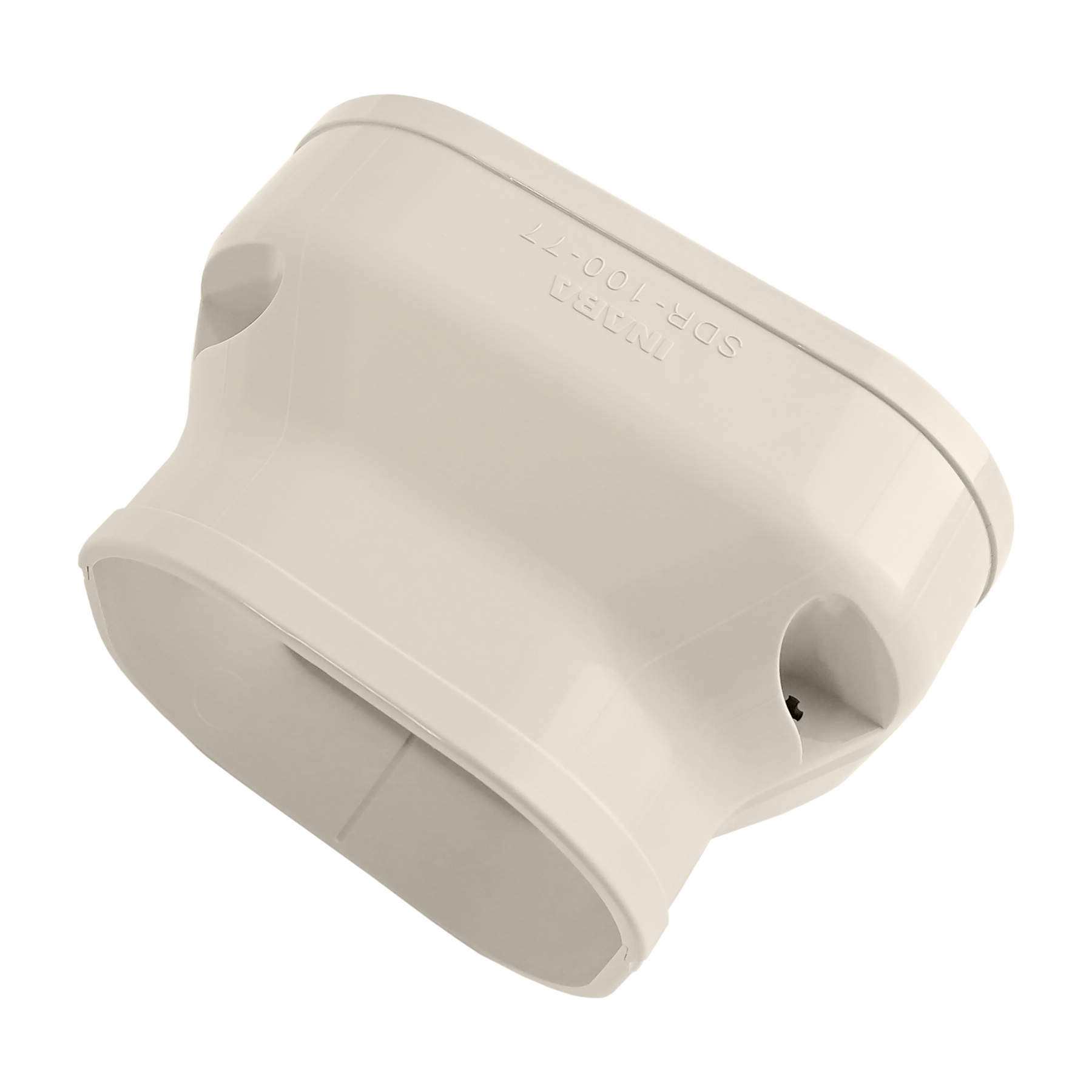

60874004772 SDR-100-77-I 66 75 82 107 66 2 5/8 3 3 1/4 4 1/4 2 5/8
60874004773 SDR-100-77-B 66 75 82 107 66 2 5/8 3 3 1/4 4 1/4 2 5/8

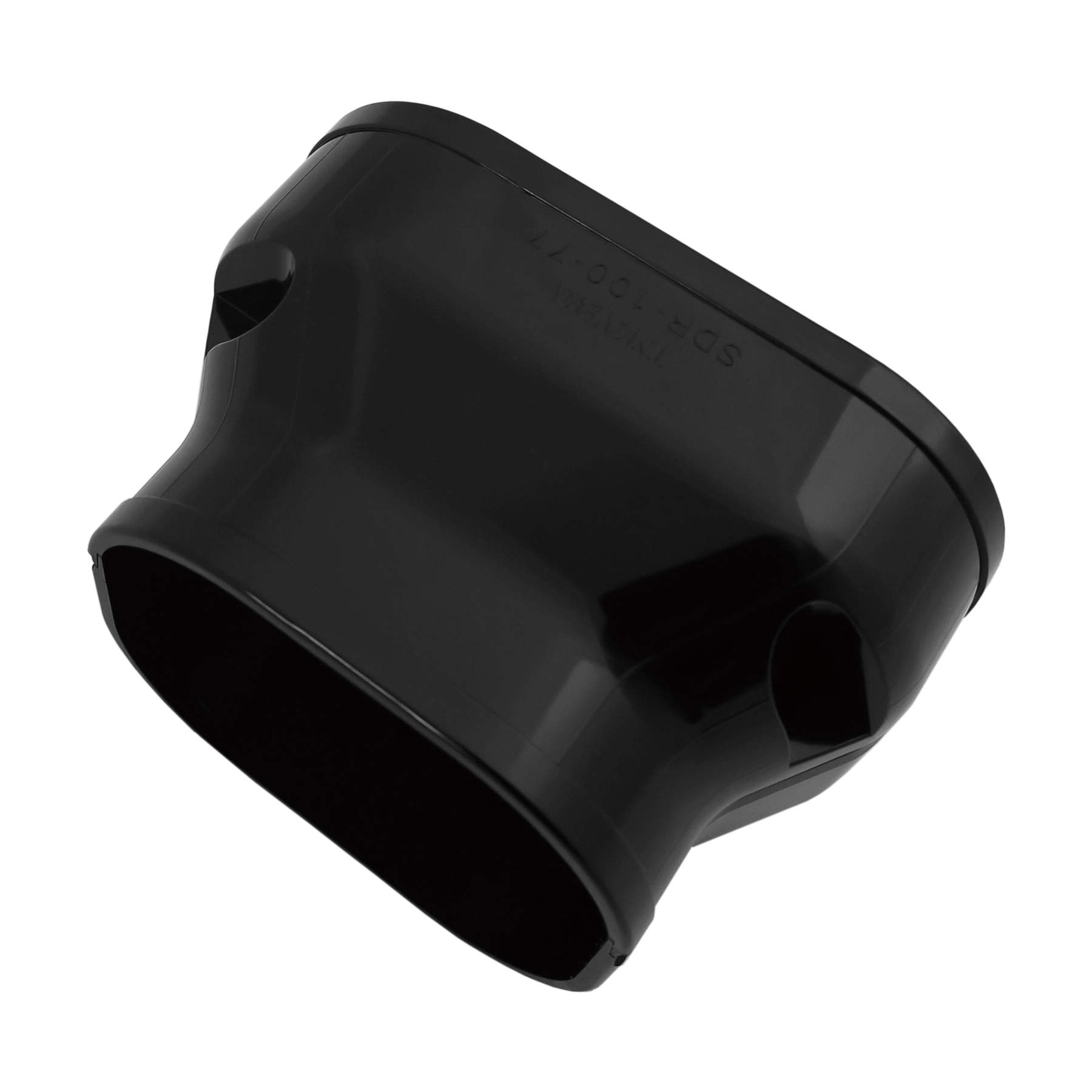

60874004774 SDR-100-77-K 66 75 82 107 66 2 5/8 3 3 1/4 4 1/4 2 5/8
60874004775 SDR-100-77-W 66 75 82 107 66 2 5/8 3 3 1/4 4 1/4 2 5/8
60874004782 SDR-140-100-I 75 84 109 147 100 3 3 3/8 4 3/8 5 7/8 4

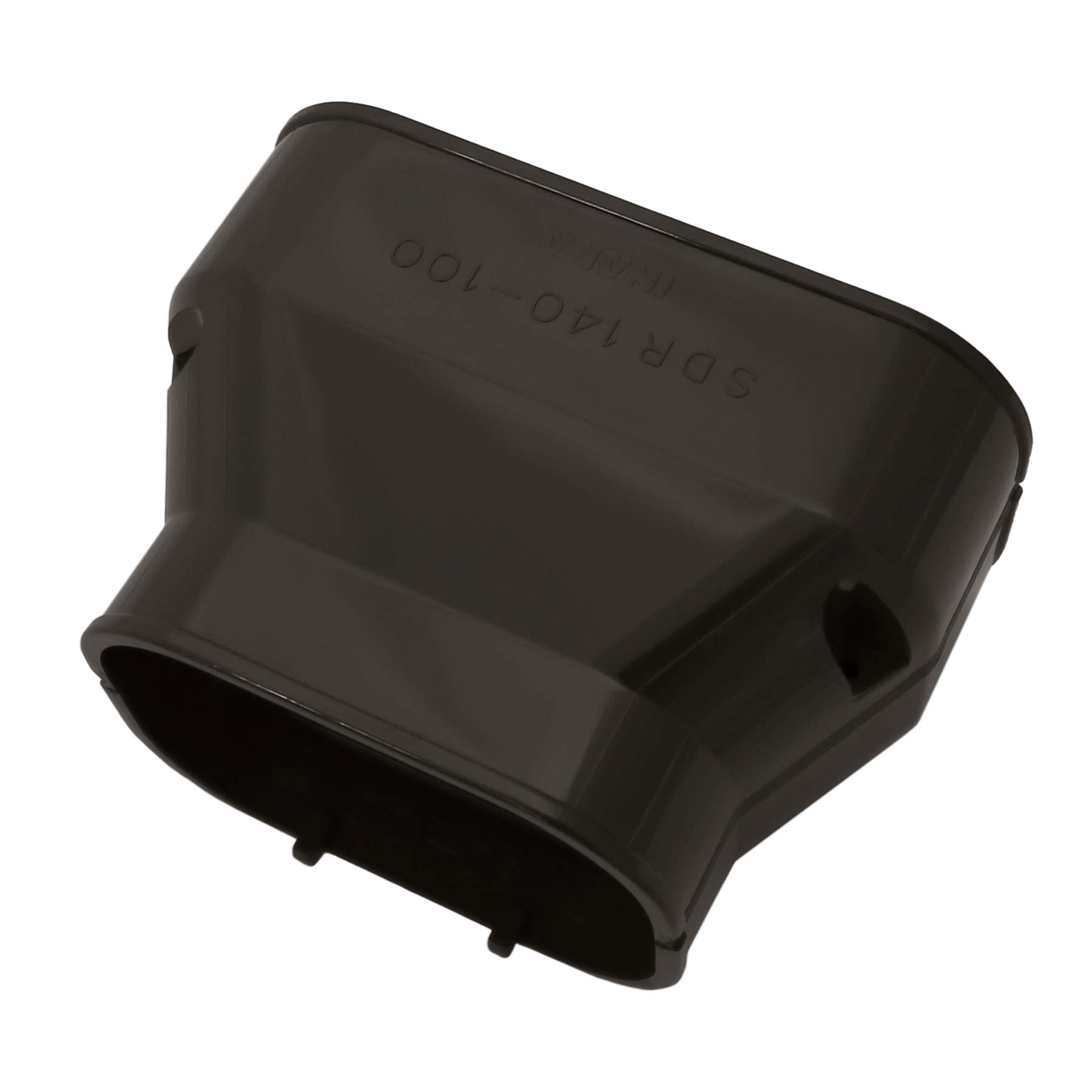

60874004783 SDR-140-100-B 75 84 109 147 100 3 3 3/8 4 3/8 5 7/8 4

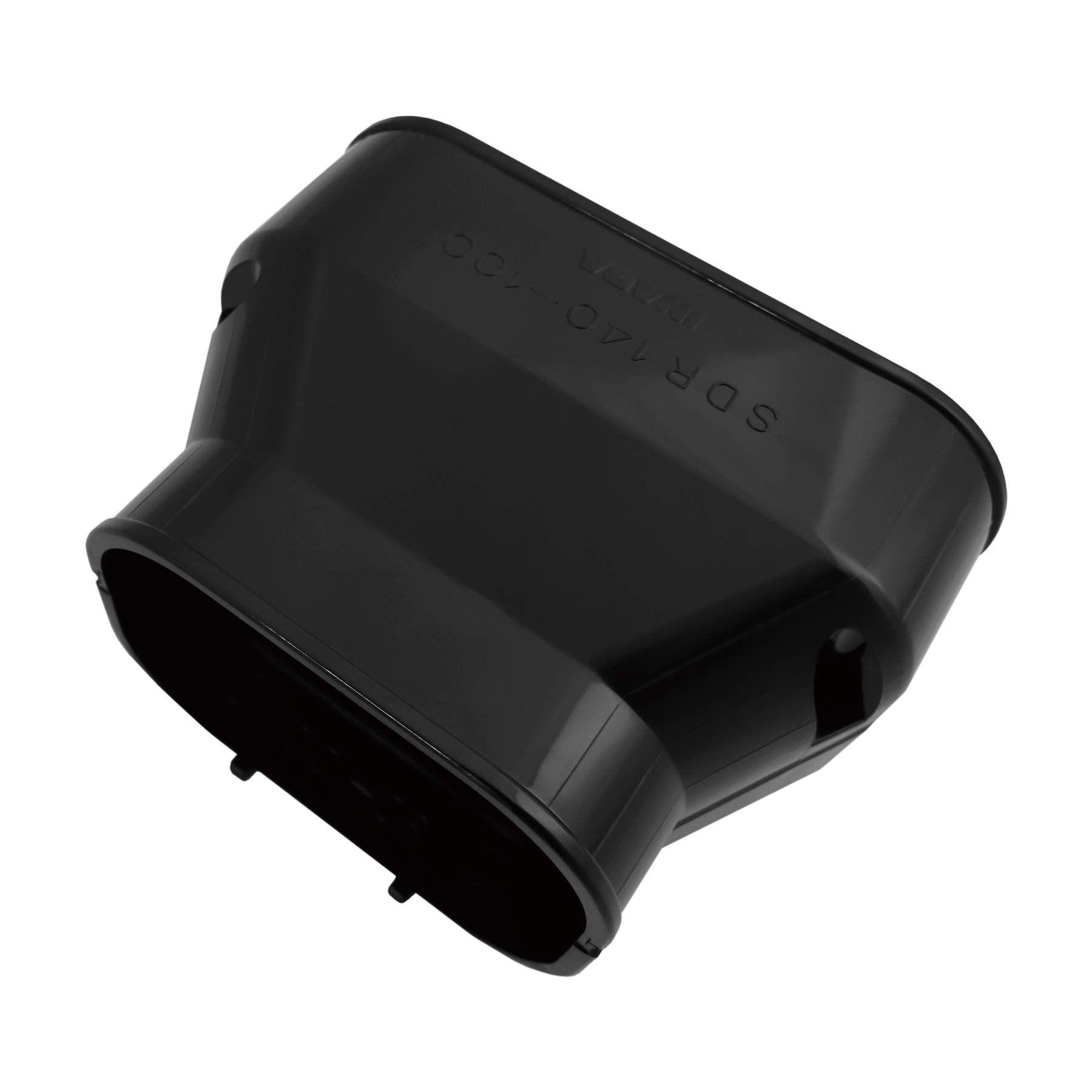

60874004784 SDR-140-100-K 75 84 109 147 100 3 3 3/8 4 3/8 5 7/8 4

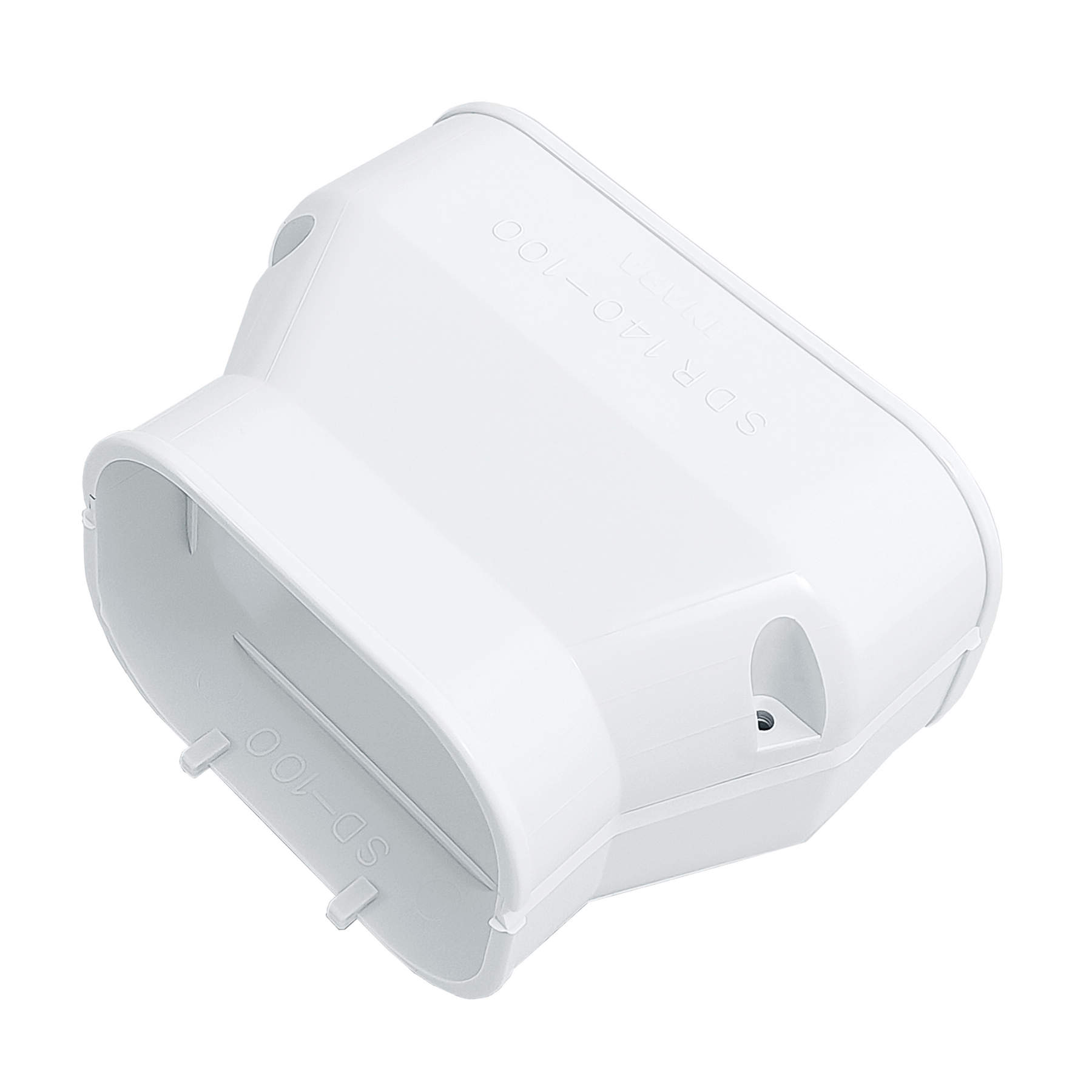

60874004785 SDR-140-100-W 75 84 109 147 100 3 3 3/8 4 3/8 5 7/8 4
  • OBuild to order
  • EEnd production
  • SAs long as stock
