Wall-mounted outlet IHM
Create a clean, professional finish around HVAC pipe penetrations with IHM. Designed to conceal and protect exposed entry points, IHM helps installers achieve a neat result with minimal effort.
Key Facts

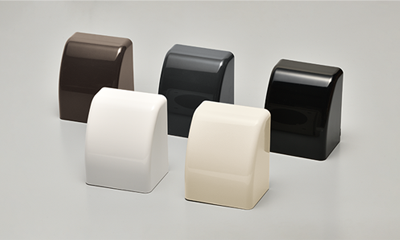

■Premium Protection
Constructed from high-grade UV-resistant and flame-retardant PVC.

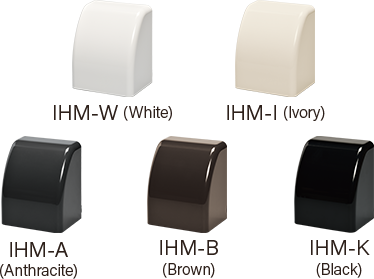

■Clean and Professional Finish
The gloss finish comes in five colors: white, ivory, brown, anthracite grey and black to complement the aesthetics of any building.

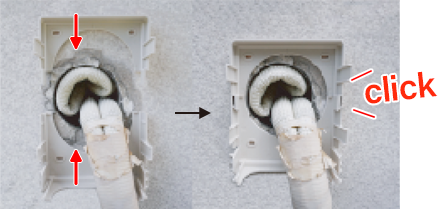

■The two-part base design
Enables easy installation and is ideal for retrofitting.
Q&A
Q. When is IHM the right choice?
A. IHM is designed for installations where a standard duct system may not be necessary, including:
- When the wall entry point is close to the piping connection.
- When you want to neatly conceal and protect the wall entry point without installing a full-length duct.
Q. Why choose IHM?
A. Key benefits include:
- Protects wall entry points from weather and damage.
- Creates a clean, professional finish.
- Quick and easy to install.
Q. How easy is it to install IHM?
A. IHM features a simple three-step installation process, helping to reduce installation time and labor costs.
Application
Perfect for both residential and commercial applications.

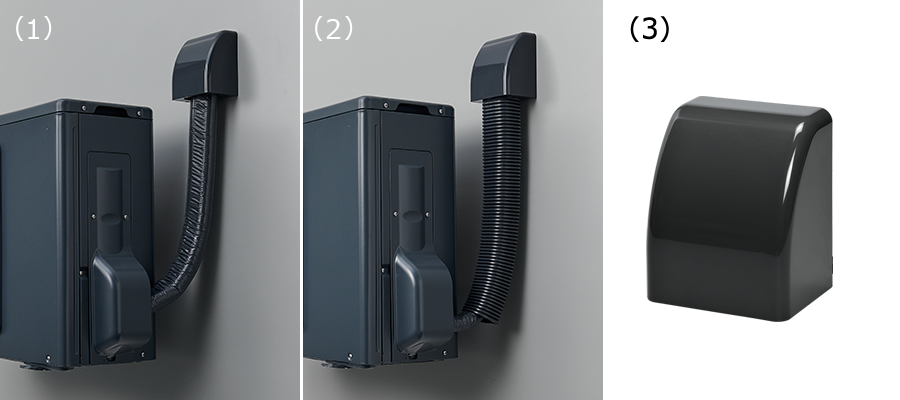

(1)With INABA's A/C tape (2)With SLIMDUCT Flexible Bend (3)IHM is fully effective on its own
Technical Info
- Temperature Range:-20 ~ 60℃
- Application:Wall Mounted
- Material:PVC
- Colour:White, Ivory, Brown, Anthracite grey, Black

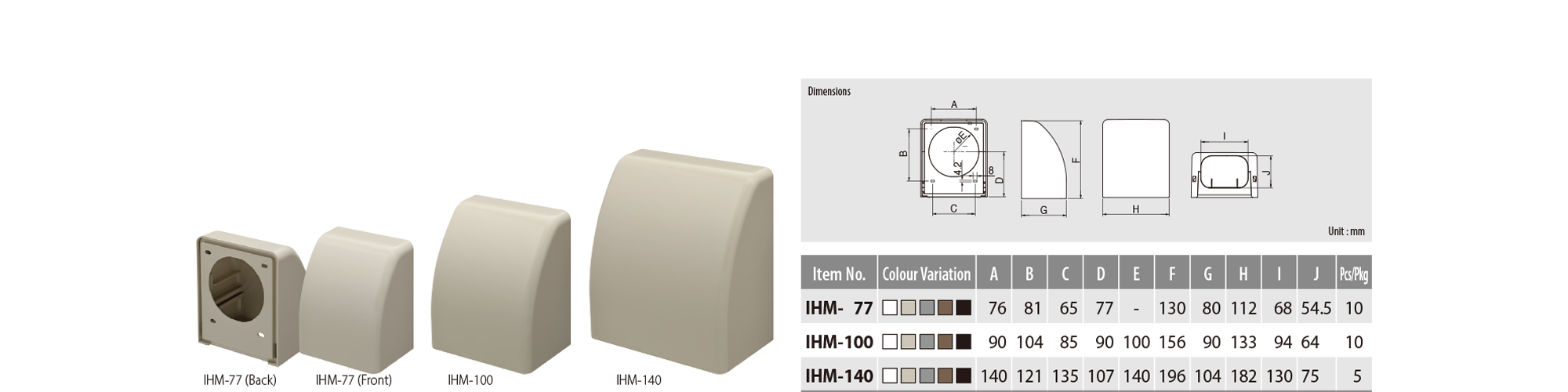

- Sizes:3 sizes available (75mm, 100mm, and 140mm)

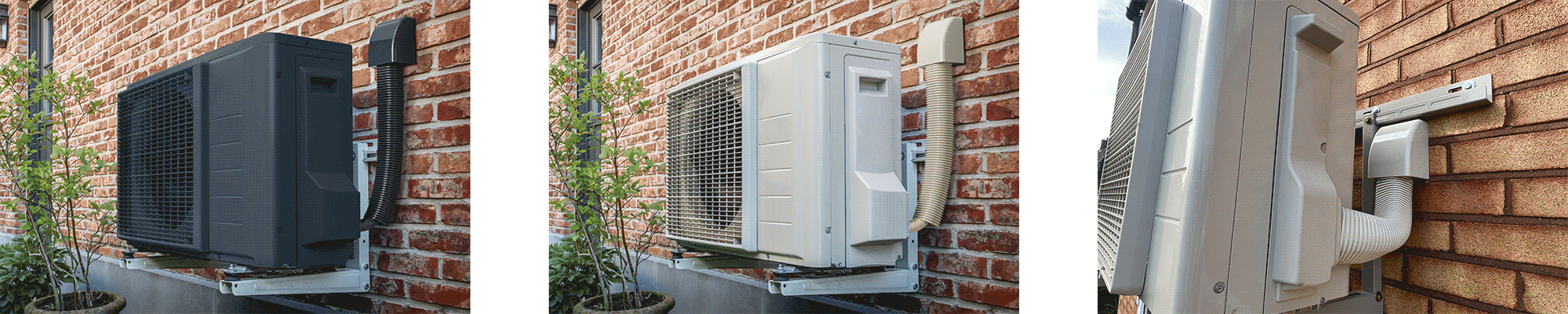

Installation image
