E201-00005
Wall Inlet for AC Cap
【SWM】WALL INLET FOR AC CAP
Contact Us
Details
| Code number | Model number | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | Applicable collar size O.D.(mm) |
Applicable collar hight O.D.(mm) |
A (inch) | B (inch) | C (inch) | D (inch) | E (inch) | Applicable collar size O.D.(inch) |
Applicable collar hight O.D.(inch) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 60874004071 | SWM-77L-G | 161 | 82 | 208 | 67 | 84 | 153 or less | 10or less | 6 3/8 | 3 1/4 | 8 1/4 | 2 3/4 | 3 3/8 | 6 or less | 3/8 or less |
| 60874004072 | SWM-77L-I | 161 | 82 | 208 | 67 | 84 | 153 or less | 10or less | 6 3/8 | 3 1/4 | 8 1/4 | 2 3/4 | 3 3/8 | 6 or less | 3/8 or less |
| 60874004073 | SWM-77L-B | 161 | 82 | 208 | 67 | 84 | 153 or less | 10or less | 6 3/8 | 3 1/4 | 8 1/4 | 2 3/4 | 3 3/8 | 6 or less | 3/8 or less |
| 60874004074 | SWM-77L-K | 161 | 82 | 208 | 67 | 84 | 153 or less | 10or less | 6 3/8 | 3 1/4 | 8 1/4 | 2 3/4 | 3 3/8 | 6 or less | 3/8 or less |
| 60874004075 | SWM-77L-W | 161 | 82 | 208 | 67 | 84 | 153 or less | 10or less | 6 3/8 | 3 1/4 | 8 1/4 | 2 3/4 | 3 3/8 | 6 or less | 3/8 or less |

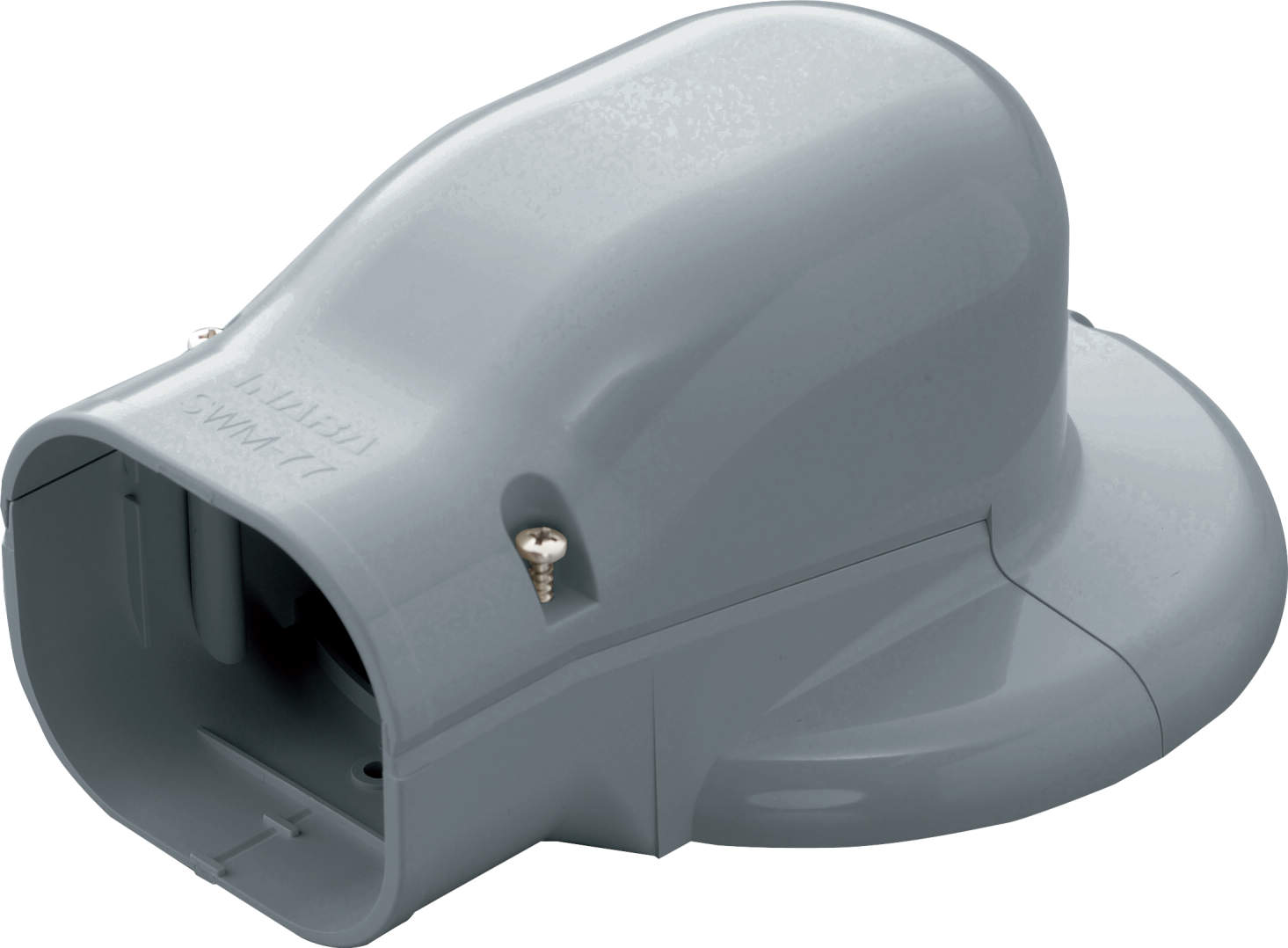

| 60874004081 | SWM-77-G | 146.5 | 82 | 188 | 67 | 84 | 130 or less | 10or less | 5 7/8 | 3 1/4 | 7 1/2 | 2 3/4 | 3 3/8 | 5 1/8 or less | 3/8 or less |
| 60874004082 | SWM-77-I | 146.5 | 82 | 188 | 67 | 84 | 130 or less | 10or less | 5 7/8 | 3 1/4 | 7 1/2 | 2 3/4 | 3 3/8 | 5 1/8 or less | 3/8 or less |

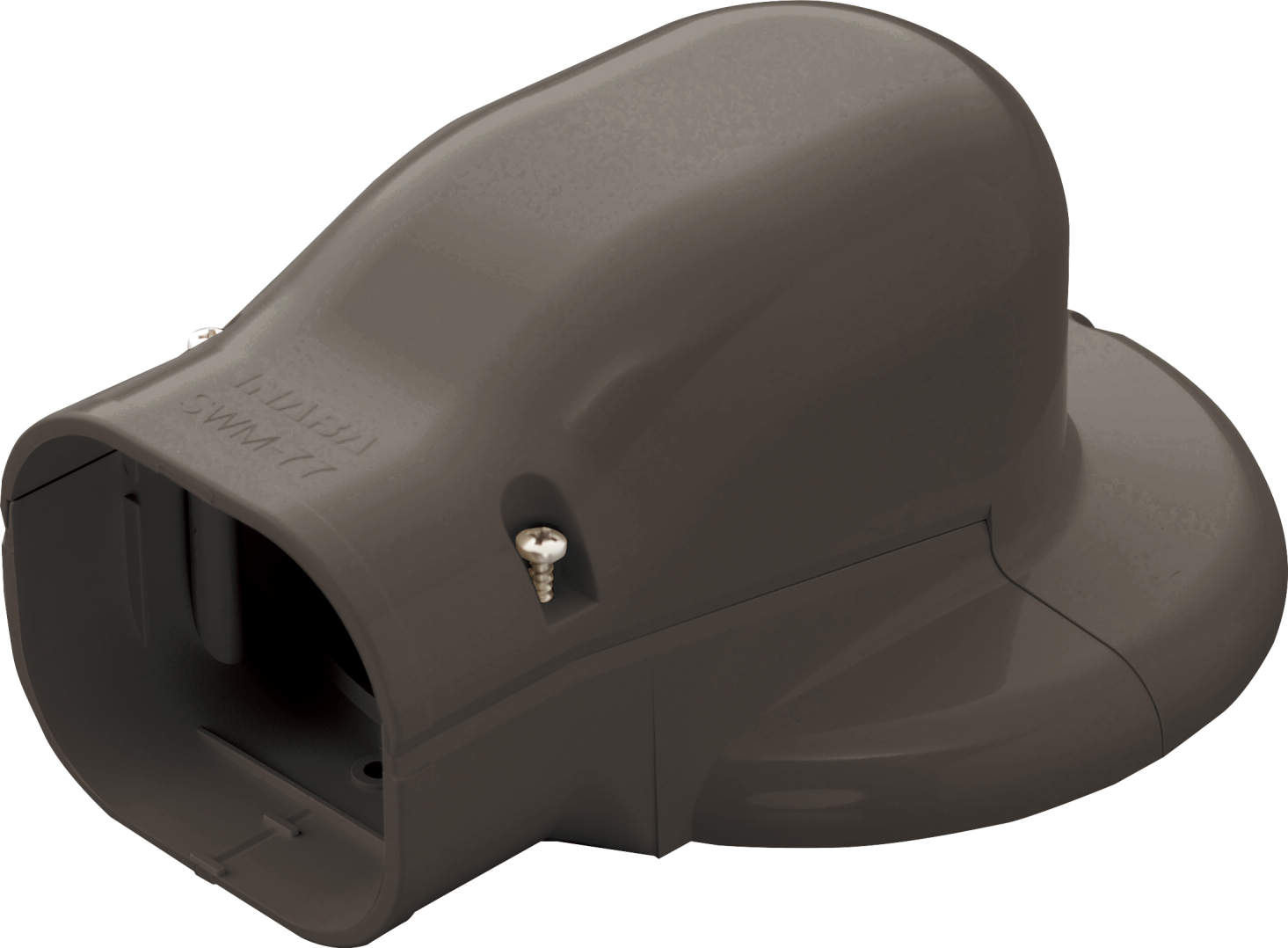

| 60874004083 | SWM-77-B | 146.5 | 82 | 188 | 67 | 84 | 130 or less | 10or less | 5 7/8 | 3 1/4 | 7 1/2 | 2 3/4 | 3 3/8 | 5 1/8 or less | 3/8 or less |
| 60874004084 | SWM-77-K | 146.5 | 82 | 188 | 67 | 84 | 130 or less | 10or less | 5 7/8 | 3 1/4 | 7 1/2 | 2 3/4 | 3 3/8 | 5 1/8 or less | 3/8 or less |

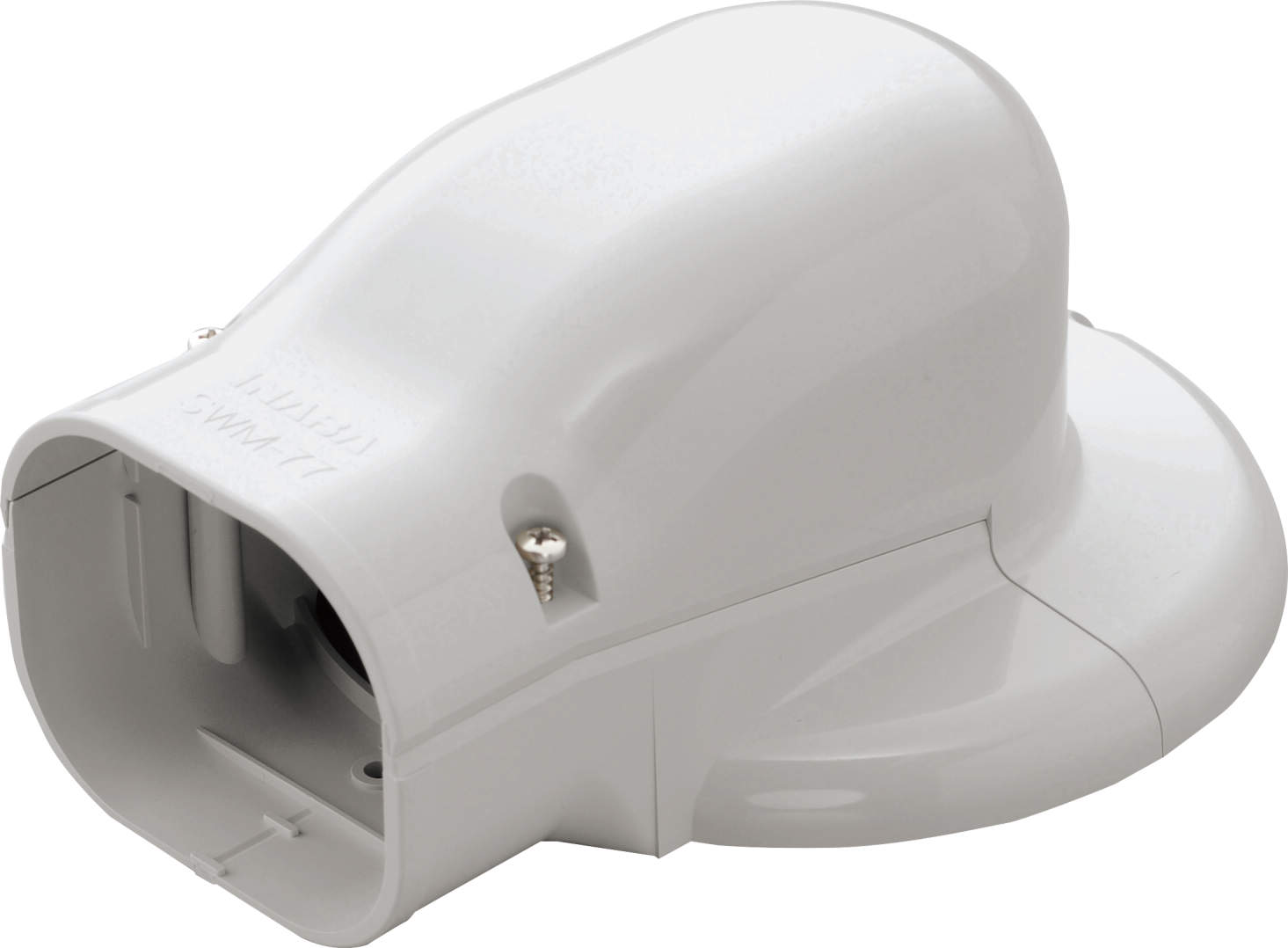

| 60874004085 | SWM-77-W | 146.5 | 82 | 188 | 67 | 84 | 130 or less | 10or less | 5 7/8 | 3 1/4 | 7 1/2 | 2 3/4 | 3 3/8 | 5 1/8 or less | 3/8 or less |
| 60874004091 | SWM-100-G | 166 | 107 | 215 | 75 | 94 | 150 or less | 10or less | 6 5/8 | 4 1/4 | 8 1/2 | 3 | 3 3/4 | 6 or less | 3/8 or less |
| 60874004092 | SWM-100-I | 166 | 107 | 215 | 75 | 94 | 150 or less | 10or less | 6 5/8 | 4 1/4 | 8 1/2 | 3 | 3 3/4 | 6 or less | 3/8 or less |
| 60874004093 | SWM-100-B | 166 | 107 | 215 | 75 | 94 | 150 or less | 10or less | 6 5/8 | 4 1/4 | 8 1/2 | 3 | 3 3/4 | 6 or less | 3/8 or less |
| 60874004094 | SWM-100-K | 166 | 107 | 215 | 75 | 94 | 150 or less | 10or less | 6 5/8 | 4 1/4 | 8 1/2 | 3 | 3 3/4 | 6 or less | 3/8 or less |
| 60874004095 | SWM-100-W | 166 | 107 | 215 | 75 | 94 | 150 or less | 10or less | 6 5/8 | 4 1/4 | 8 1/2 | 3 | 3 3/4 | 6 or less | 3/8 or less |
- OBuild to order
- EEnd production
- SAs long as stock
