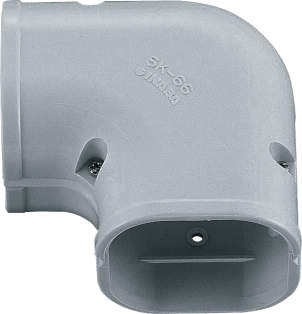

【SK】90°FLAT ELBOW

E002-00007

90°Flat Ell

【SK】90°FLAT ELBOW

Installation Materials for Air-Conditioners 2020 12

Donwload data

Contact Us

Contact Us
Office network

Details

SK_e.flg.eps
Code number Model number A (mm) B (mm) C (mm) A (inch) B (inch) C (inch)
60874004221 SK-77-G 81 66 128 3 1/4 2 5/8 5 1/8
60874004222 SK-77-I 81 66 128 3 1/4 2 5/8 5 1/8
60874004223 SK-77-B 81 66 128 3 1/4 2 5/8 5 1/8
60874004224 SK-77-K 81 66 128 3 1/4 2 5/8 5 1/8
60874004225 SK-77-W 81 66 128 3 1/4 2 5/8 5 1/8
60874004231 SK-100-G 106 74 151 4 1/4 3 6
60874004232 SK-100-I 106 74 151 4 1/4 3 6
60874004233 SK-100-B 106 74 151 4 1/4 3 6
60874004234 SK-100-K 106 74 151 4 1/4 3 6
60874004235 SK-100-W 106 74 151 4 1/4 3 6
60874004241 SK-140-G 146 84 190 5 3/4 3 3/8 7 1/2
60874004242 SK-140-I 146 84 190 5 3/4 3 3/8 7 1/2
60874004244 SK-140-K 146 84 190 5 3/4 3 3/8 7 1/2
60974004227 SK-77-A 81 66 128 3 1/4 2 5/8 5 1/8
60974004237 SK-100-A 106 74 151 4 1/4 3 6
60974004243 SK-140-B 146 84 190 5 3/4 3 3/8 7 1/2
60974004245 SK-140-W 146 84 190 5 3/4 3 3/8 7 1/2

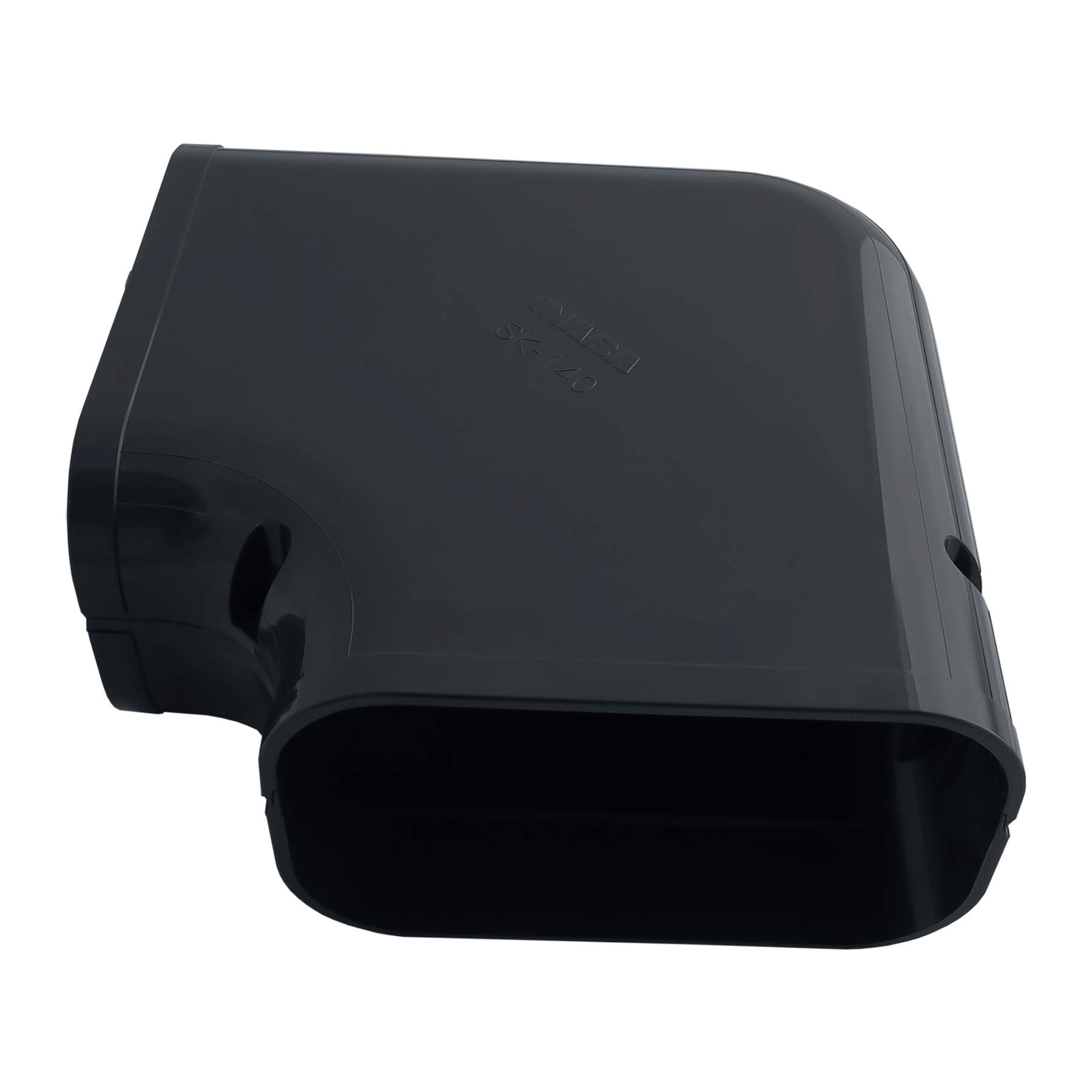

60974004247 SK-140-A 146 84 190 5.75 3.375 7.5
  • OBuild to order
  • EEnd production
  • SAs long as stock
