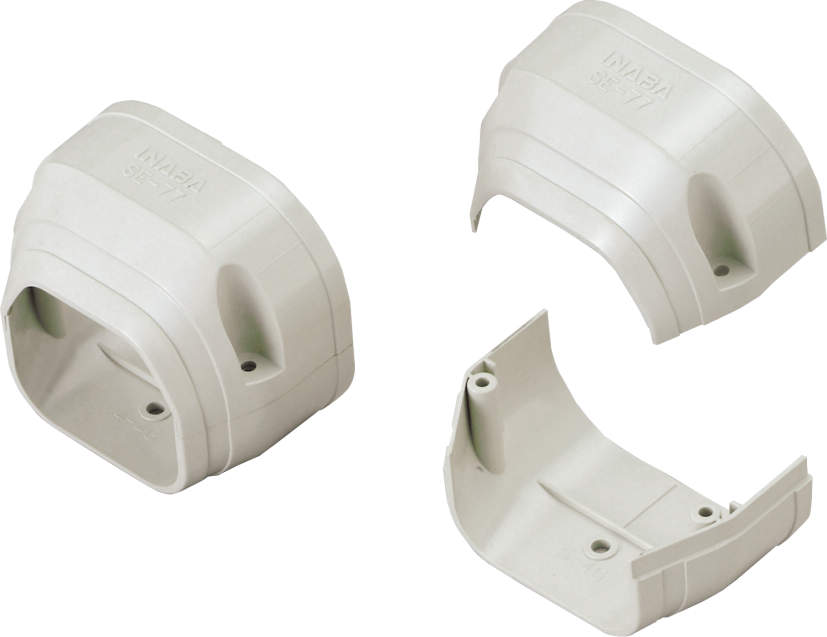

【SE】END FITTING

Installation Materials for Air-Conditioners 2020 13

Donwload data

Code number	Model number	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	A (inch)	B (inch)	C (inch)	D (inch)	E (inch)
60874004491	SE-77-G	53	43	45	82	67	2 1/8	1 3/4	1 7/8	3 1/4	2 3/4
60874004492	SE-77-I	53	43	45	82	67	2 1/8	1 3/4	1 7/8	3 1/4	2 3/4
60874004493	SE-77-B	53	43	45	82	67	2 1/8	1 3/4	1 7/8	3 1/4	2 3/4
60874004494	SE-77-K	53	43	45	82	67	2 1/8	1 3/4	1 7/8	3 1/4	2 3/4
60874004495	SE-77-W	53	43	45	82	67	2 1/8	1 3/4	1 7/8	3 1/4	2 3/4
60874004931	SE-100-G	84	60	46.5	107	74
60874004932	SE-100-I	84	60	46.5	107	74
60874004933	SE-100-B	84	60	46.5	107	74
60874004934	SE-100-K	84	60	46.5	107	74
60874004935	SE-100-W	84	60	46.5	107	74
60874004941	SE-140-G	84	60	79.5	146	84
60874004942	SE-140-I	84	60	79.5	146	84
60874004943	SE-140-B	84	60	79.5	146	84
60874004944	SE-140-K	84	60	79.5	146	84
60874004945	SE-140-W	84	60	79.5	146	84
60974004497	SE-77-A	53	43	45	82	67	2 1/8	1 3/4	1 7/8	3 1/4	2 3/4

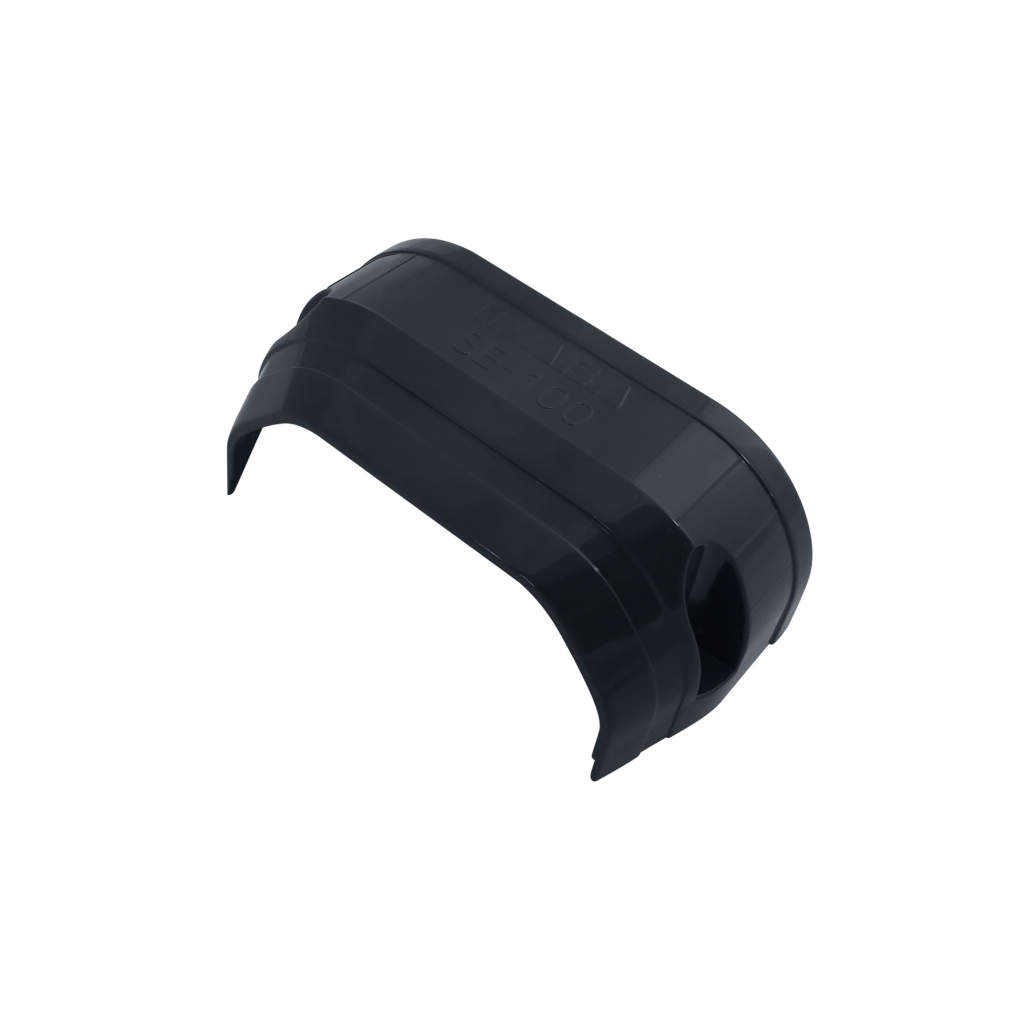

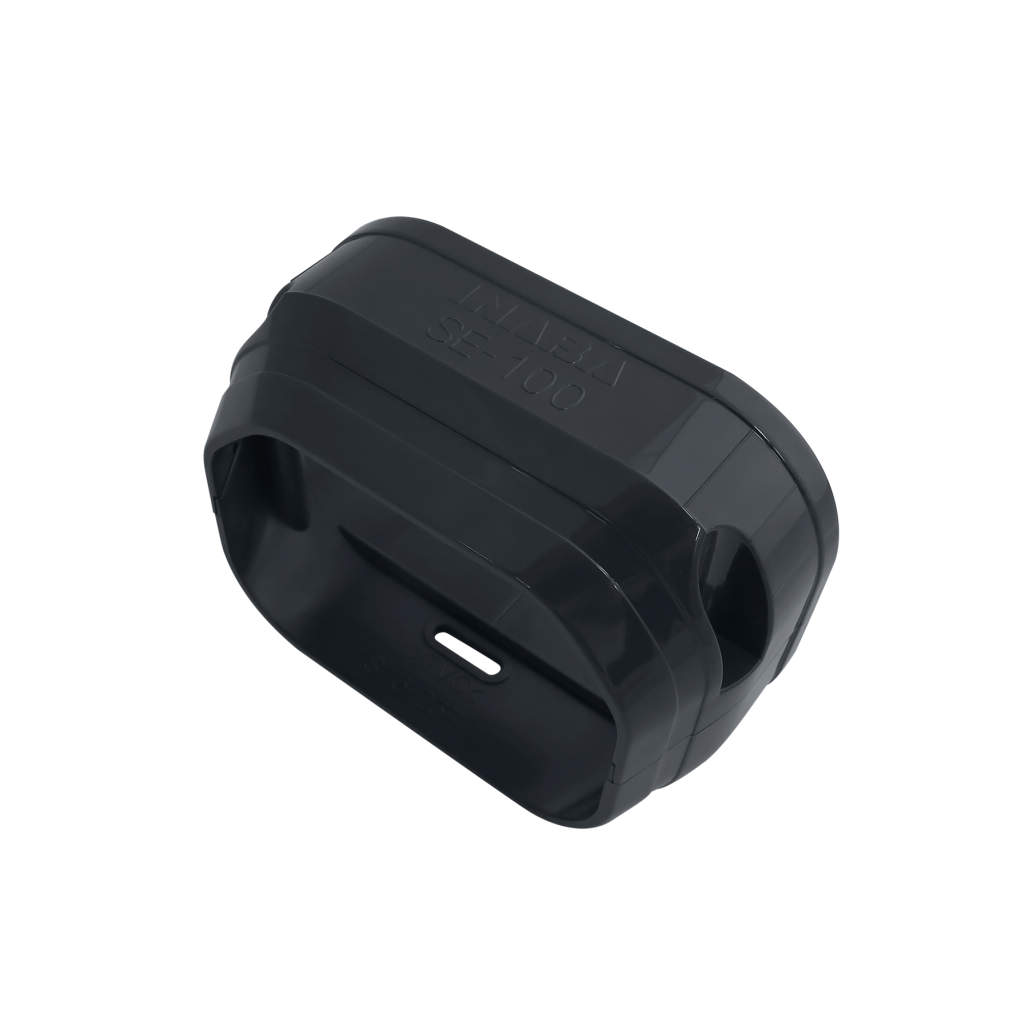

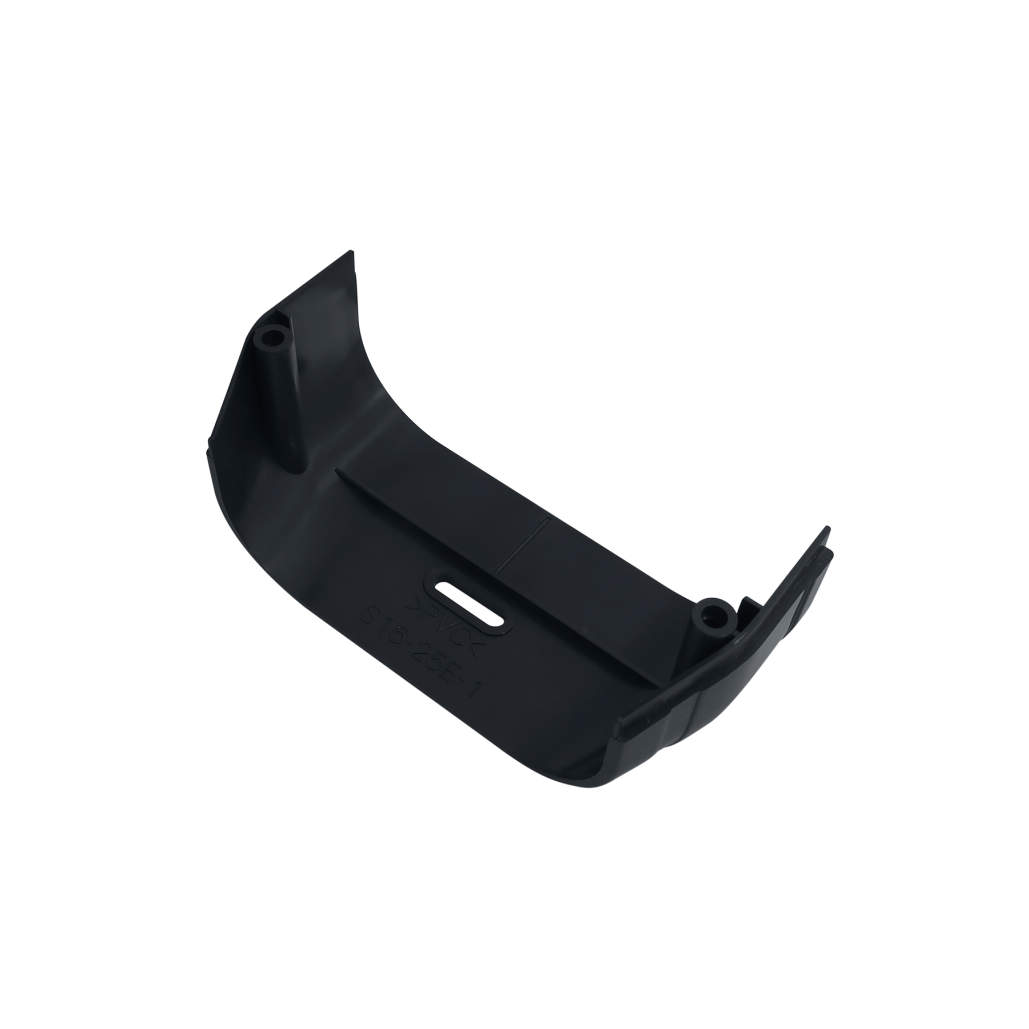

60974004937	SE-100-A	84	60	46.5	107	74

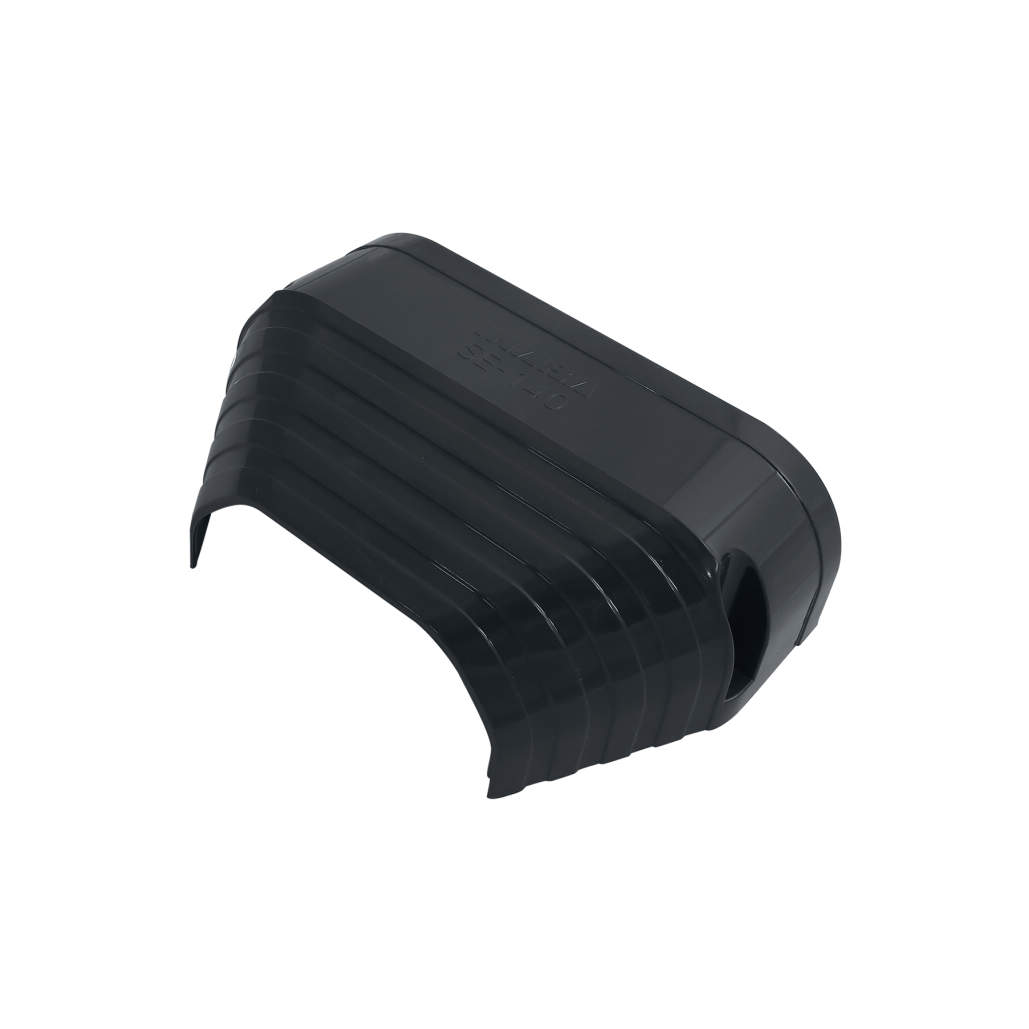

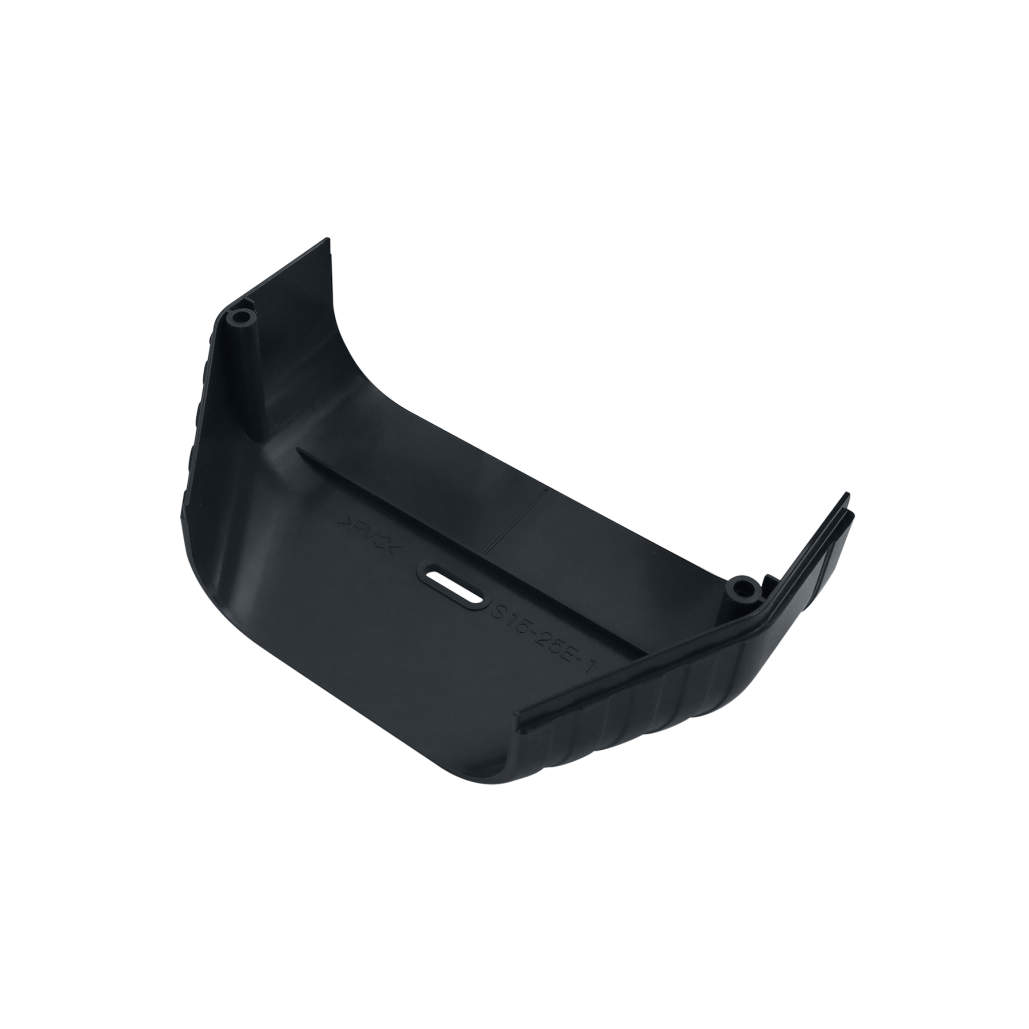

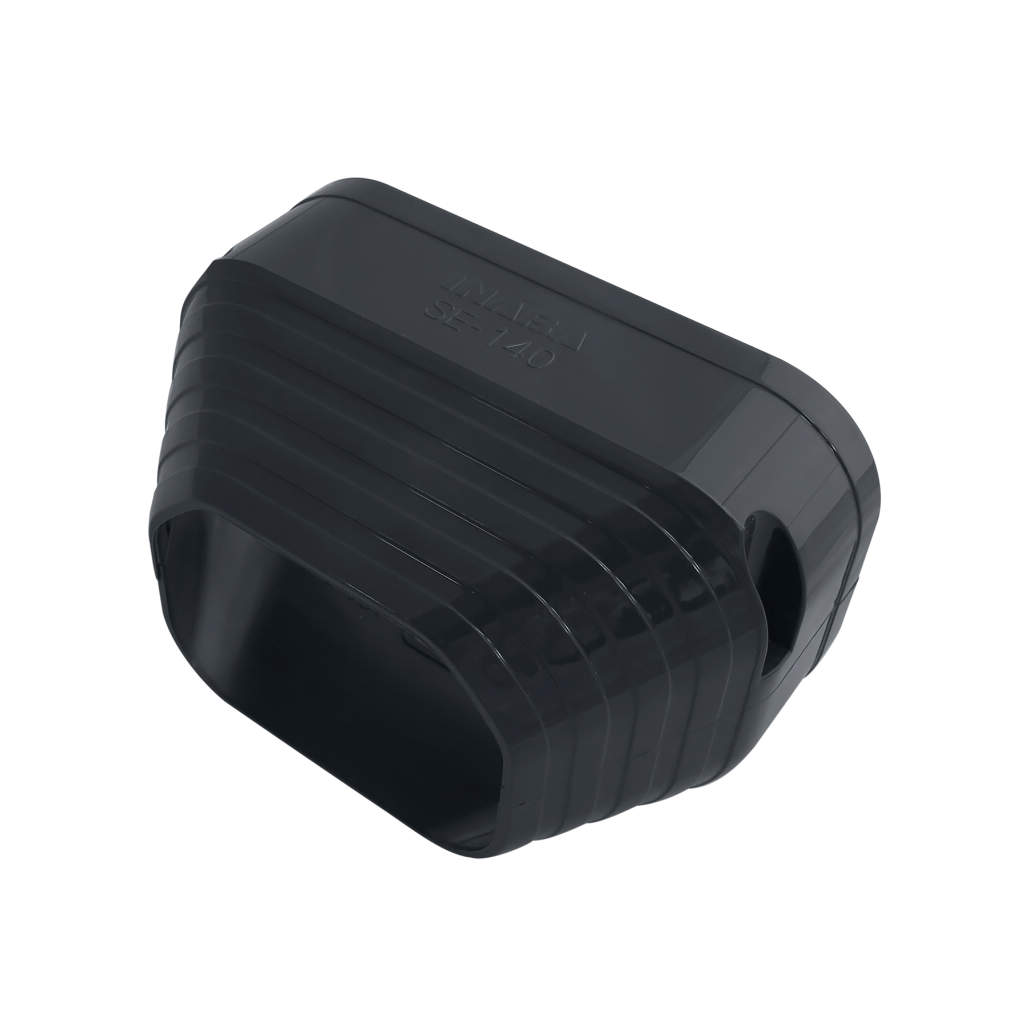

60974004947	SE-140-A	84	60	79.5	146	84
