E202-00004
Wall Inlet Near to Beam or Wall

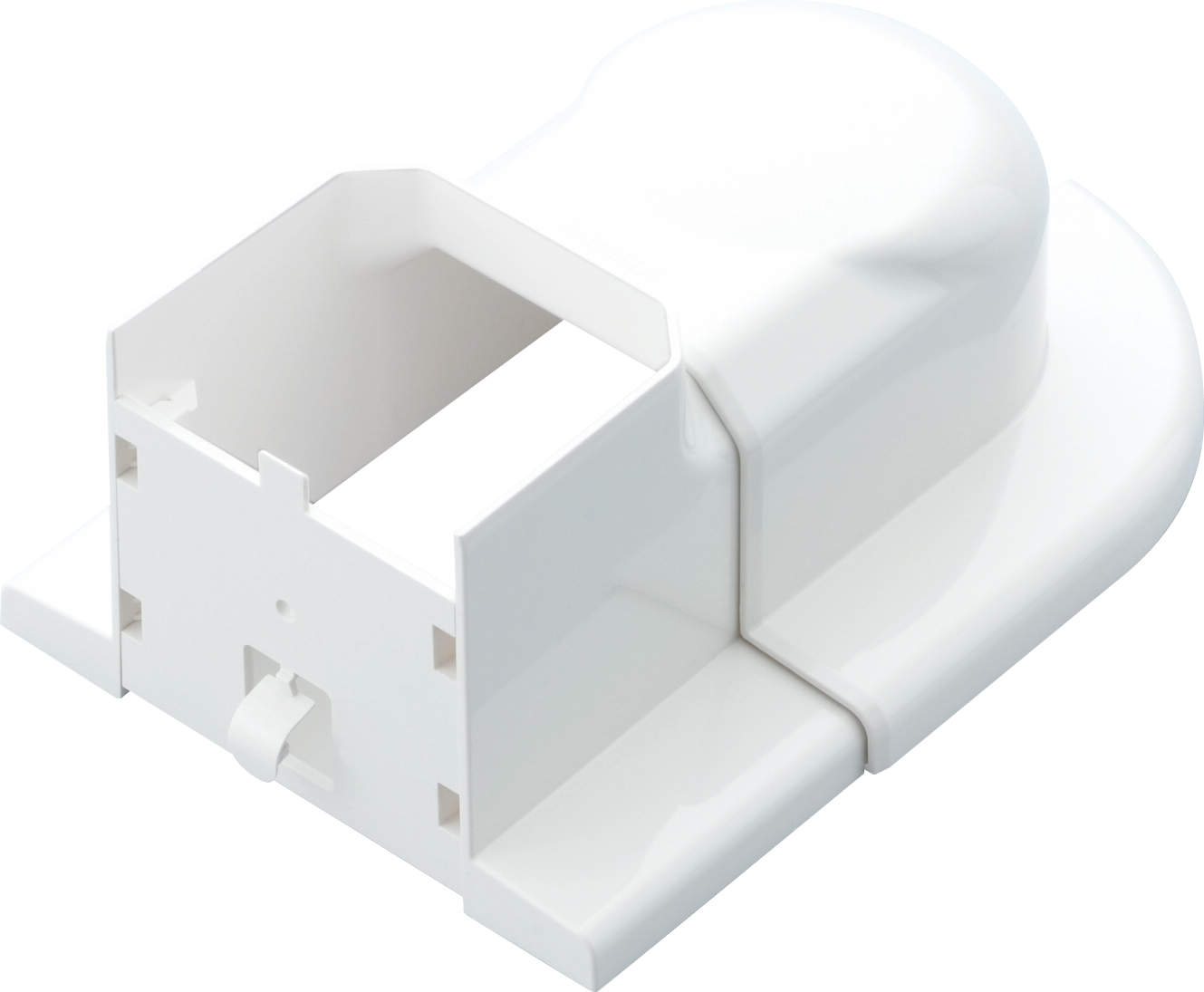

【MWS】SLIDE ADJUSTABLE WALL INLET
Contact Us
Details

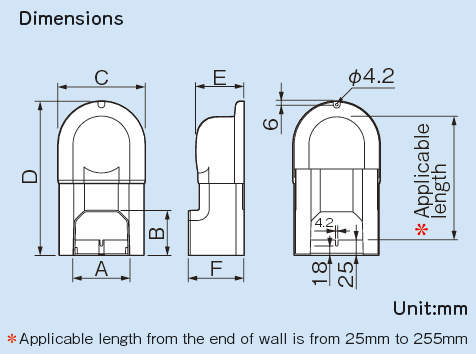

| Code number | Model number | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | Applicable products | Applicable products:other | A (inch) | B (inch) | C (inch) | D (inch) | E (inch) | F (inch) | 【ｉ】Applicable products：Others | Applicable products：Others |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 60874061175 | MWS-75-L-W | 80 | 67.5 | 147.5 | 210～266 | 73.5 | 85 | AC-67,75,100／WC-60N,65,65N,75N | Others：Frange O.D. ～φ136mm＋Frange Height～10mm | 3 1/4 | 2 3/4 | 5 7/8 | 8 3/8～10 1/2 | 3 | 3 3/8 | AC-67,75,100／WC-60N,65,65N,75N | Others : Frange O.D.～φ5 3/8 + Frange Height ～1/2 |
| 60874061185 | MWS-85 | 90 | 73 | 141 | 209～266 | 78 | 90 | AC-67,75,100／WC-60N,65,65N,75N | Others：Frange O.D. ～φ130mm＋Frange Height～10mm | 3 5/8 | 2 7/8 | 5 5/8 | 8 1/4～10 1/2 | 3 1/8 | 3 5/8 | AC-67,75,100／WC-60N,65,65N,75N | Others : Frange O.D.～φ5 1/8 + Frange Height ～1/2 |
- OBuild to order
- EEnd production
- SAs long as stock
