E202-00010

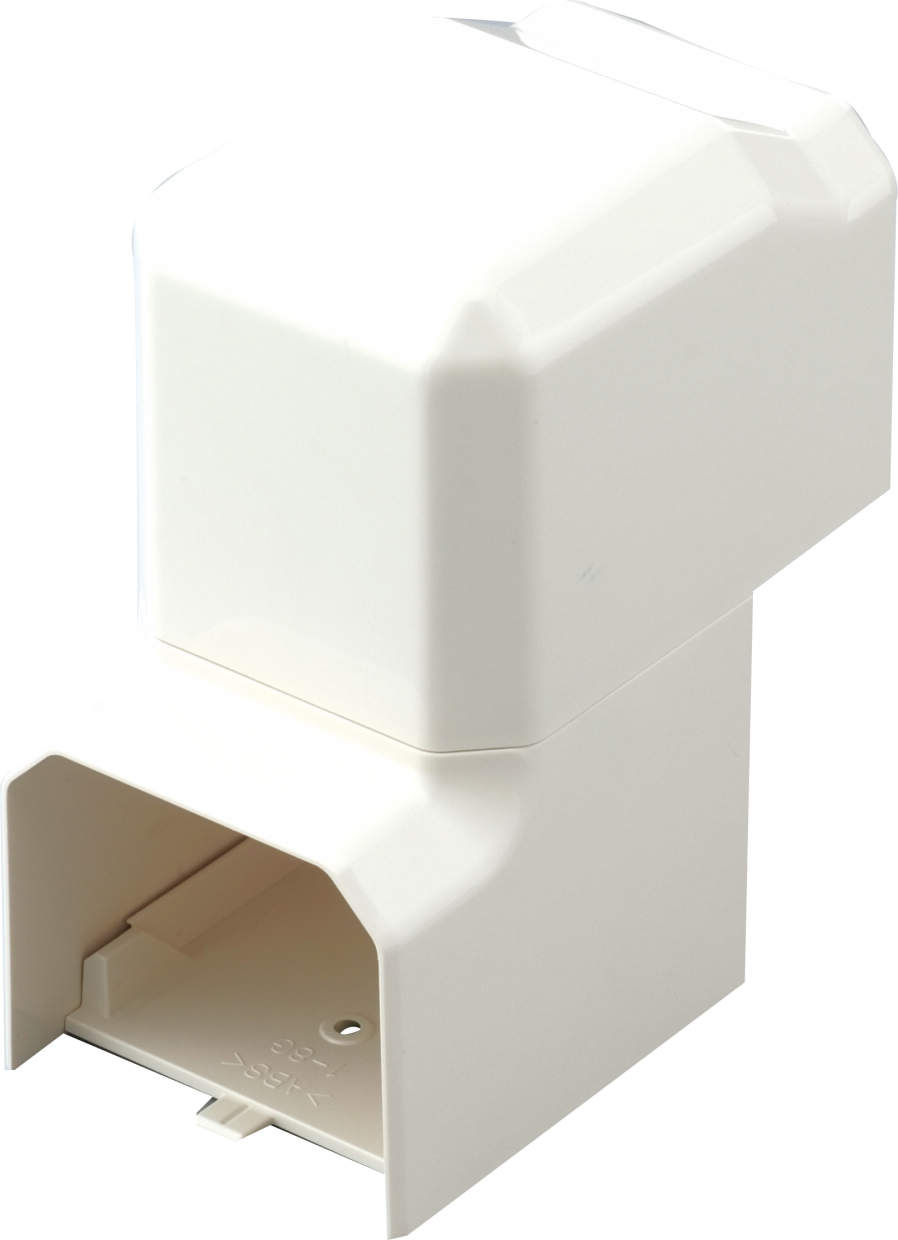

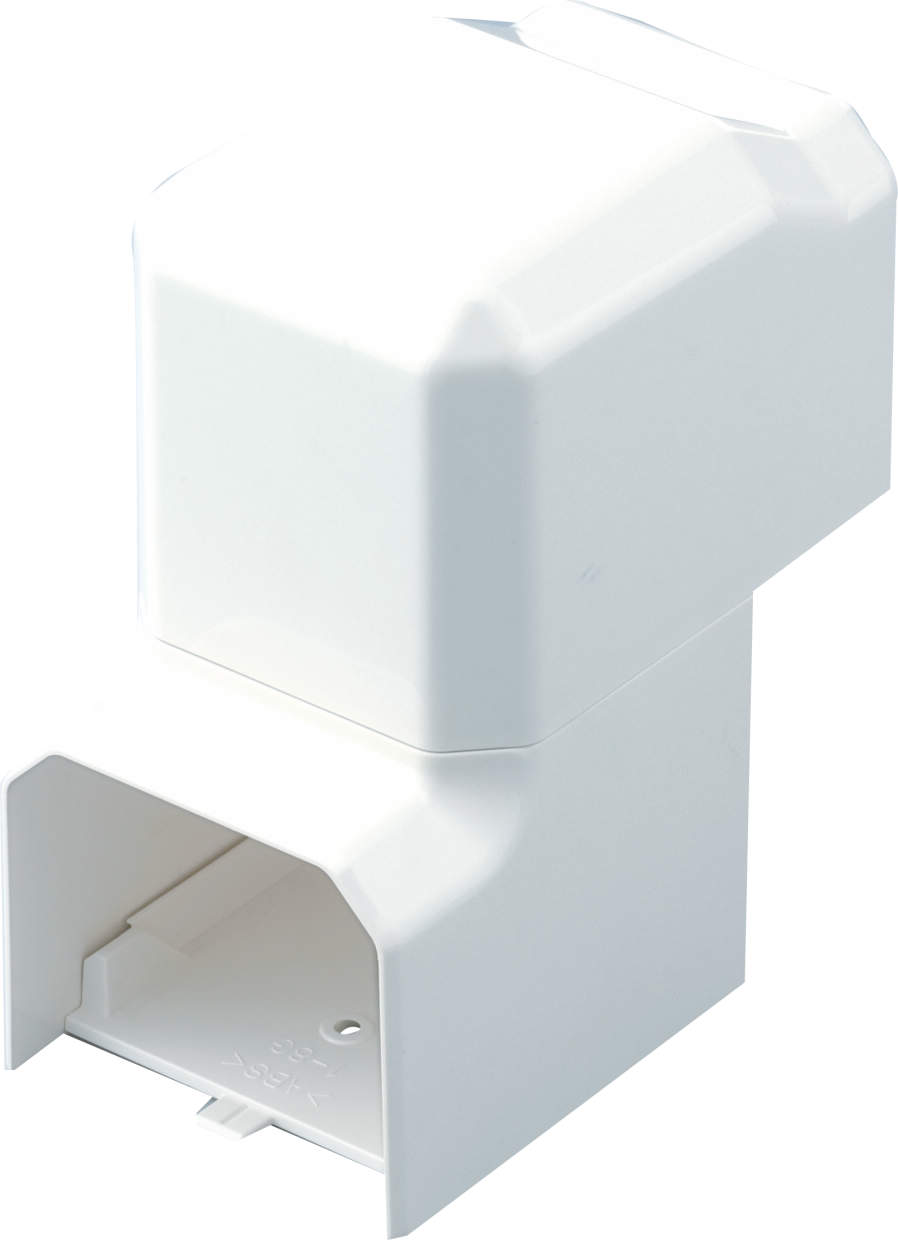

90°Slide Adjustable Vertical Ell
【MCS】90°SLIDE ADJUSTABLE VERTICAL ELL
Specifications
Material ・・・ ABS
Contact Us
Details

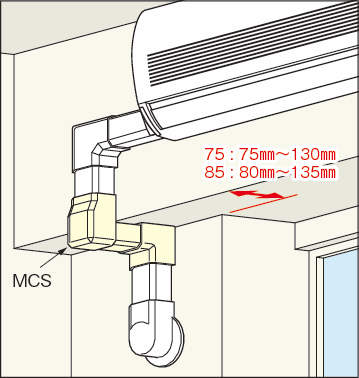

| Code number | Model number | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H (mm) | A (inch) | B (inch) | C (inch) | D (inch) | E (inch) | F (inch) | G (inch) | H (inch) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 60874061425 | MCS-75-W | 80 | 68 | 92 | 39 | 75～130 | 79 | 40 | 25 | 3 1/4 | 2 3/4 | 3 5/8 | 1 5/8 | 3～5 1/8 | 3 1/8 | 1 5/8 | 1 |
| 60874061435 | MCS-85 | 90 | 73 | 96 | 39 | 80～135 | 84 | 40 | 25 | 3 5/8 | 2 7/8 | 3 7/8 | 1 5/8 | 3 1/4～5 3/8 | 3 3/8 | 1 5/8 | 1 |
- OBuild to order
- EEnd production
- SAs long as stock
