E404-00001
For PVC Pipe Joint

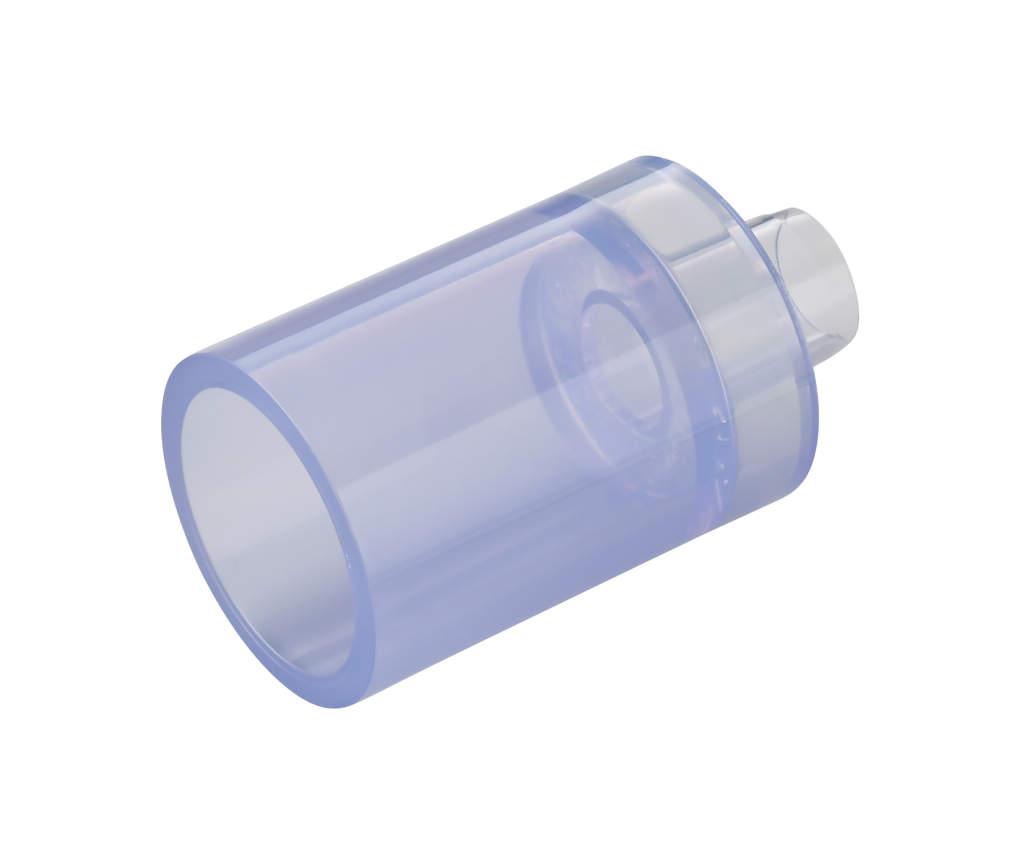

【DSH-14-V】HOSE TO PIPE ADAPTOR (FOR DSH-14)
Donwload data
-
Product Image
Contact Us
Details
| Code number | Model number | Applicable vinyl pipe | A | B | C | D | Applicable vinyl pipe | A | B | C | D |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 60874008570 | DSH-14-13V | VP O.D.=18mm | 50 | 38 | 18.4 | 24 | VP O.D.=18mm | 2 | 1 1/2 | 3/4 | 1 |
| 60874008580 | DSH-14-16V | VP O.D.=22mm | 54 | 42 | 22.4 | 28 | VP O.D.=22mm | 2 1/4 | 1 3/4 | 1 | 1 1/8 |
| 60874008590 | DSH-14-20V | VP O.D.=26mm | 59 | 47 | 26.45 | 33 | VP O.D.=26mm | 2 3/8 | 1 7/8 | 1 1/8 | 1 3/8 |
- OBuild to order
- EEnd production
- SAs long as stock
