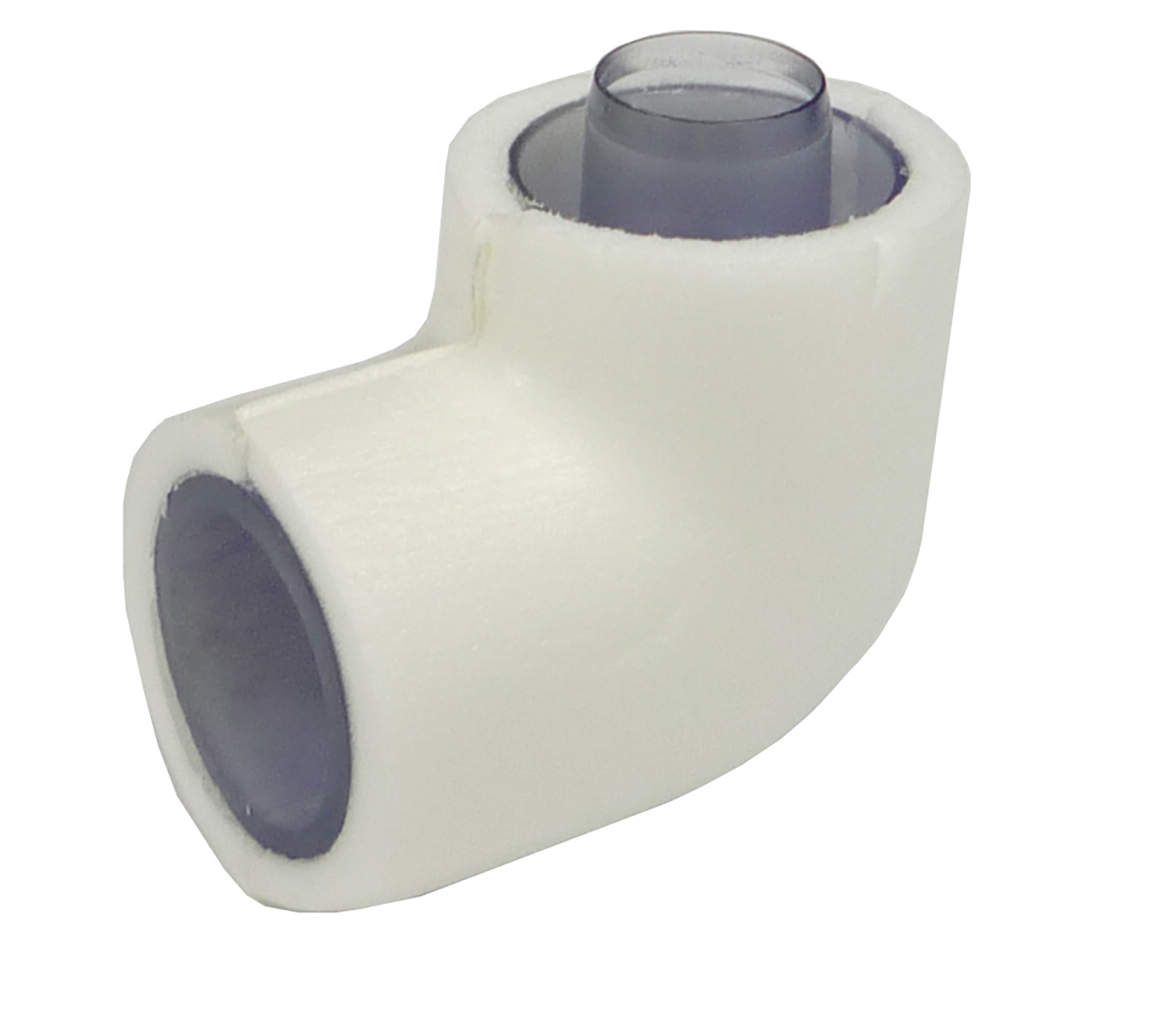

【DSH-NED】HOSE TO PIPE INSULATED ELL

Installation Materials for Air-Conditioners 2020 43

Caution

Please take taping treatment on the connection part of insulation.

Code number	Model number	Appicable drain pipe Applicable drain hose	A	B	C	D	E	F	Appicable drain pipe Applicable drain hose	A	B	C	D	E	F
60874008820	DSH-20NED	NDD-20N/DSH-20N	17	47	26.45	45	72	61	NDD-20N/DSH-20N	3/4	1 7/8	1 1/8	1 7/8	2 7/8	2 1/2
60874008830	DSH-25NED	NDD-25N/DSH-25N	22.5	53	32.55	52	81	69	NDD-25N/DSH-25N	1	2 1/8	1 3/8	2 1/8	3 1/4	2 3/4
