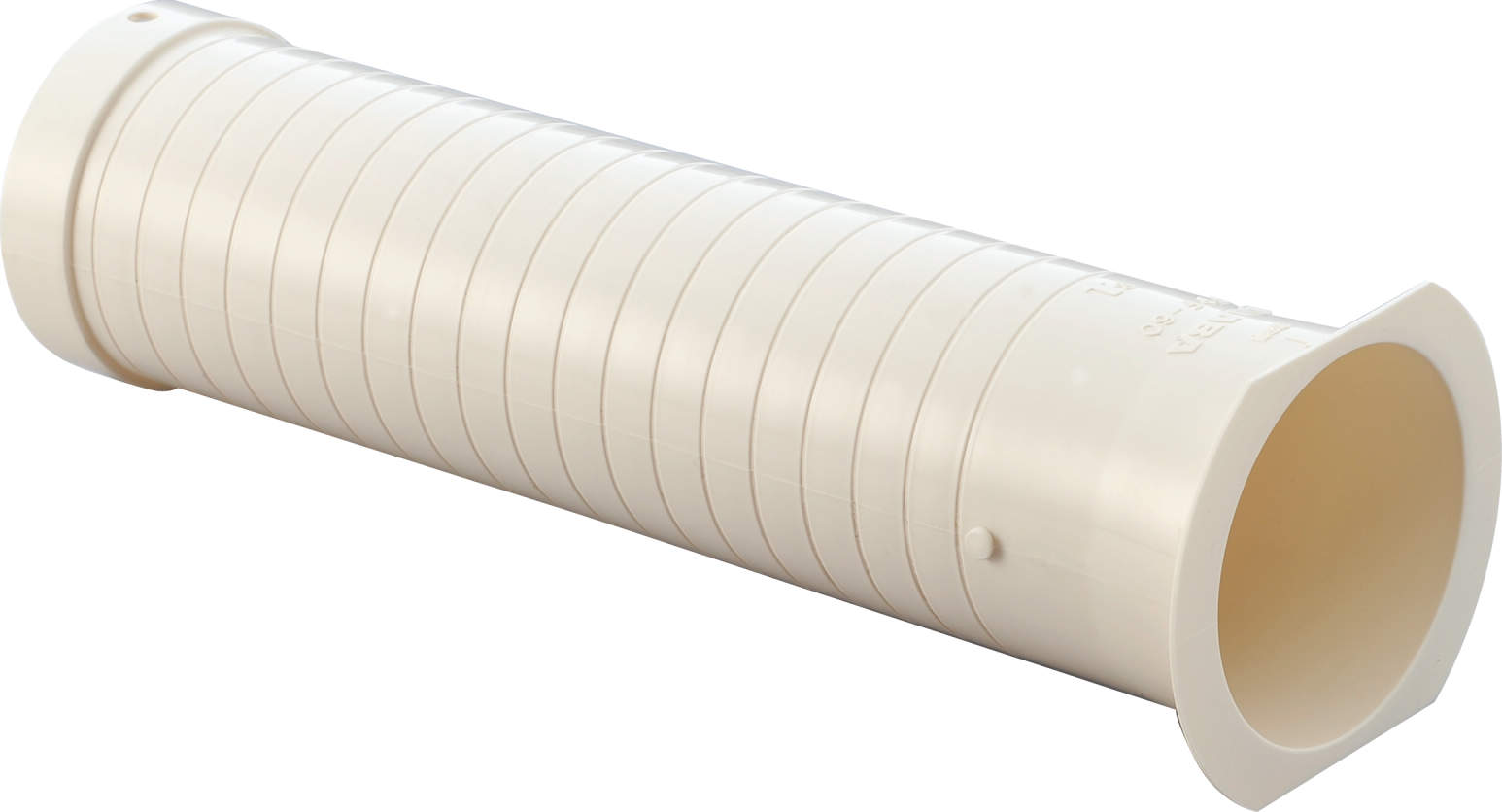

【FPF】FLANGED WALL SLEEVE <LONG TYPE> | Products

Features

Applicable to wall thickness 250mm or less (200mm or less for inclined use).

Applicable to drainage incline (5°or less) cutting the end part and then assembling in reverse direction.

With cutmarks for easy cutting for sleeve.

Cutting length easily recognized by cutmarks (at every 1cm).

Material ・・・ PE + PP

Color ・・・ Ivory (Silky White)

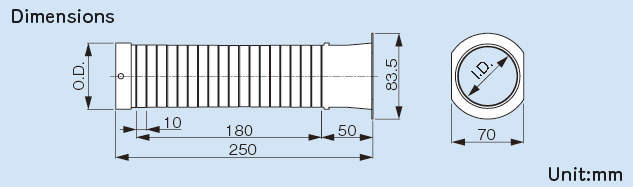

Code number	Model number	I.D.	O.D.l	Core drill diameter	I.D.	O.D.l	Core drill diameter
60874003980	FPF-60	57	64.5	φ65	2 1/4	2 5/8	φ2 5/8
