E701-00001
For W3/8" Threaded Rod

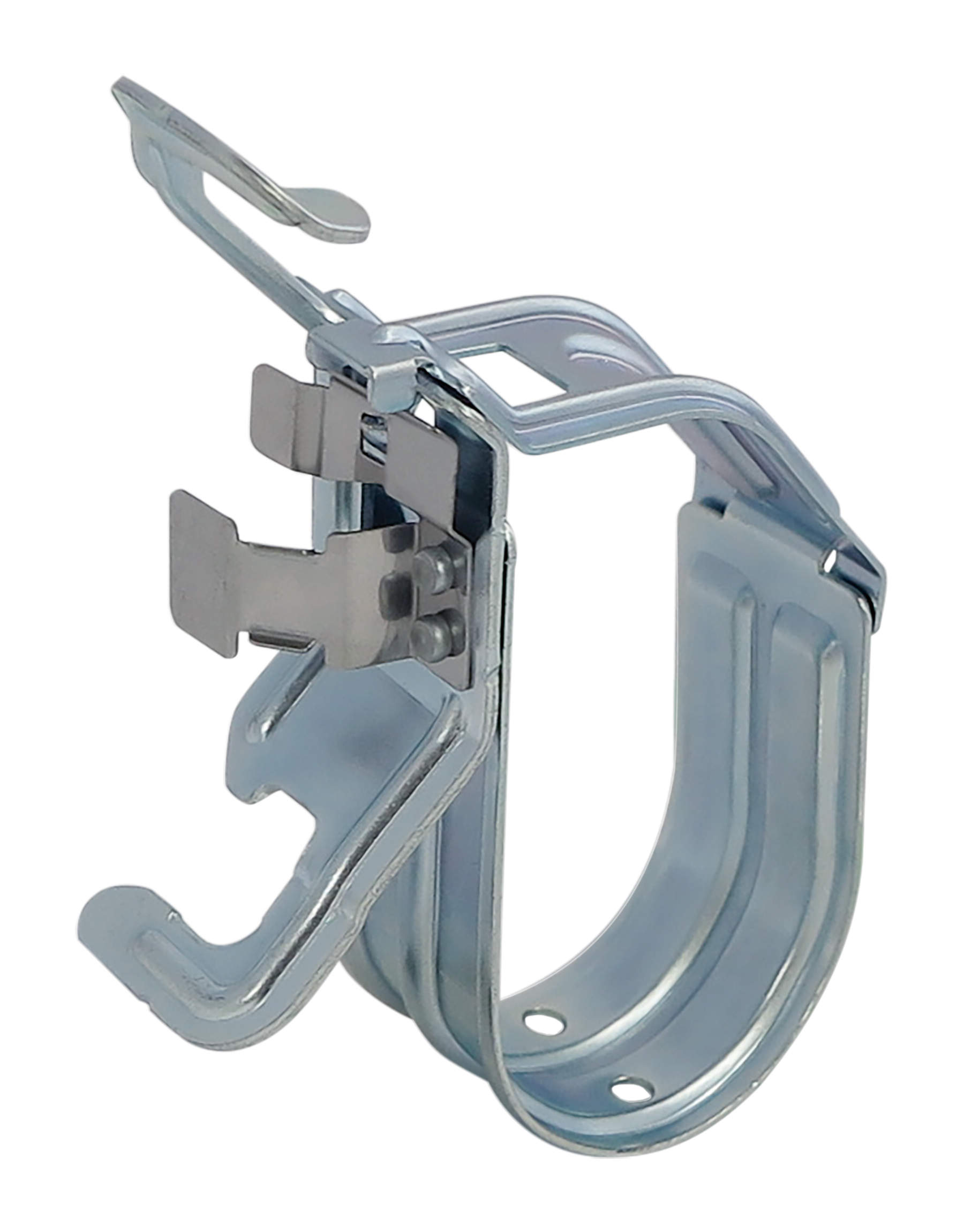

【SRV】SUPERLOCK V TYPE
Features
One-touch attachment to W3/8" threaded rod
Hinge mechanism allows temporary placement of piping.
Height adjustment to rod is easy.
Specifications
Surface treatment ・・・ Unichrome plating
Caution
For indoor use only.
Do not use for other than W3/8" threaded rod.
Contact Us
Details
| Code number | Model number | Applicable size(mm) Insulation thickness |
Applicable size(mm) Copper pipe |
Allowable statick load | L┣sub┫1┣/sub┫ | L┣sub┫2┣/sub┫ | H | A | B | Body thickness(mm)（t1） | Clip thickness(mm)（t1） | Applicable size(inch) Insulation thickness |
Applicable size(inch) Copper pipe |
L┣sub┫1┣/sub┫ | L┣sub┫2┣/sub┫ | H | A | B | Body thickness(inch)（t1） | Clip thickness(inch)（t1） | Allowable statick load (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

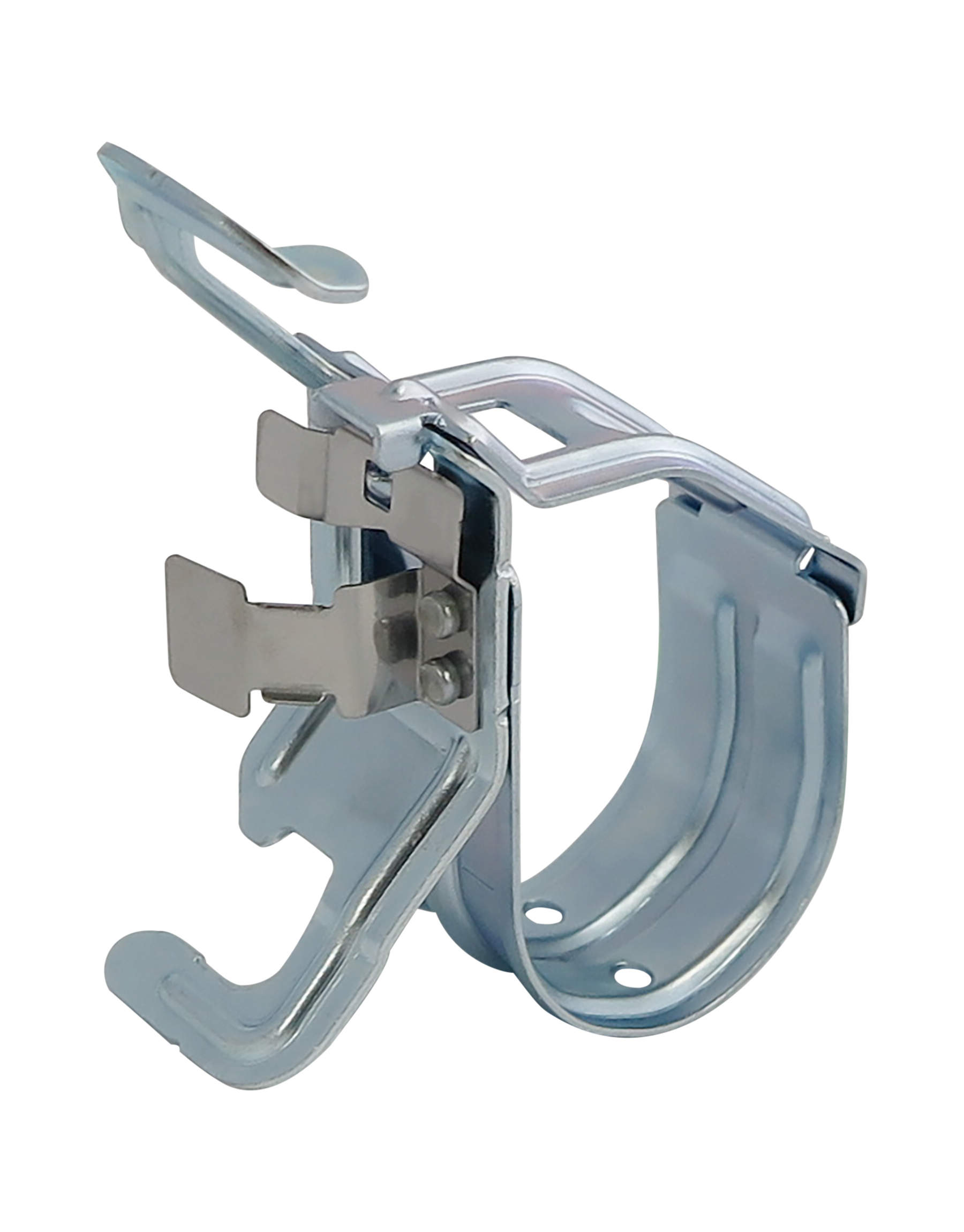

| 60874056222 | SRV-24B | 10×10 | 06.35×09.52～06.35×12.70 | 196N（20kgf） | 70 | 57.5 | 95 | 59 | 37 | 1 | 1 | 1/2×1/2 | 06.35×09.52～06.35×12.70 | 2 7/8 | 2 3/8 | 3 3/4 | 2 3/8 | 1 1/2 | 1/16 | 1/16 | 44 |

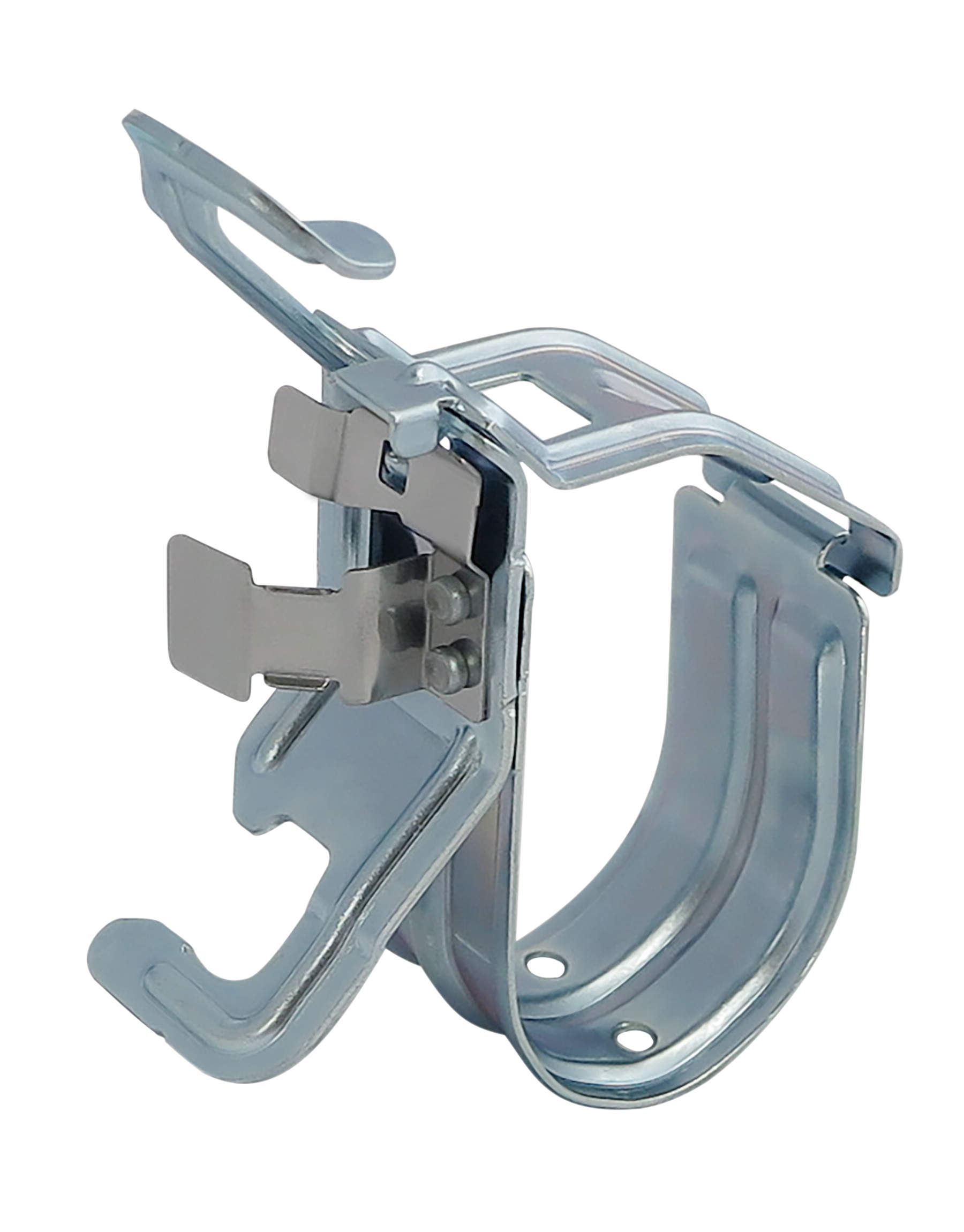

| 60874056232 | SRV-35B | 10×10 | 06.35×15.88～09.52×15.88 | 196N（20kgf） | 70 | 57.5 | 101 | 67 | 37 | 1 | 1 | 1/2×1/2 | 06.35×15.88～09.52×15.88 | 2 7/8 | 2 3/8 | 4 | 2 3/4 | 1 1/2 | 1/16 | 1/16 | 44 |

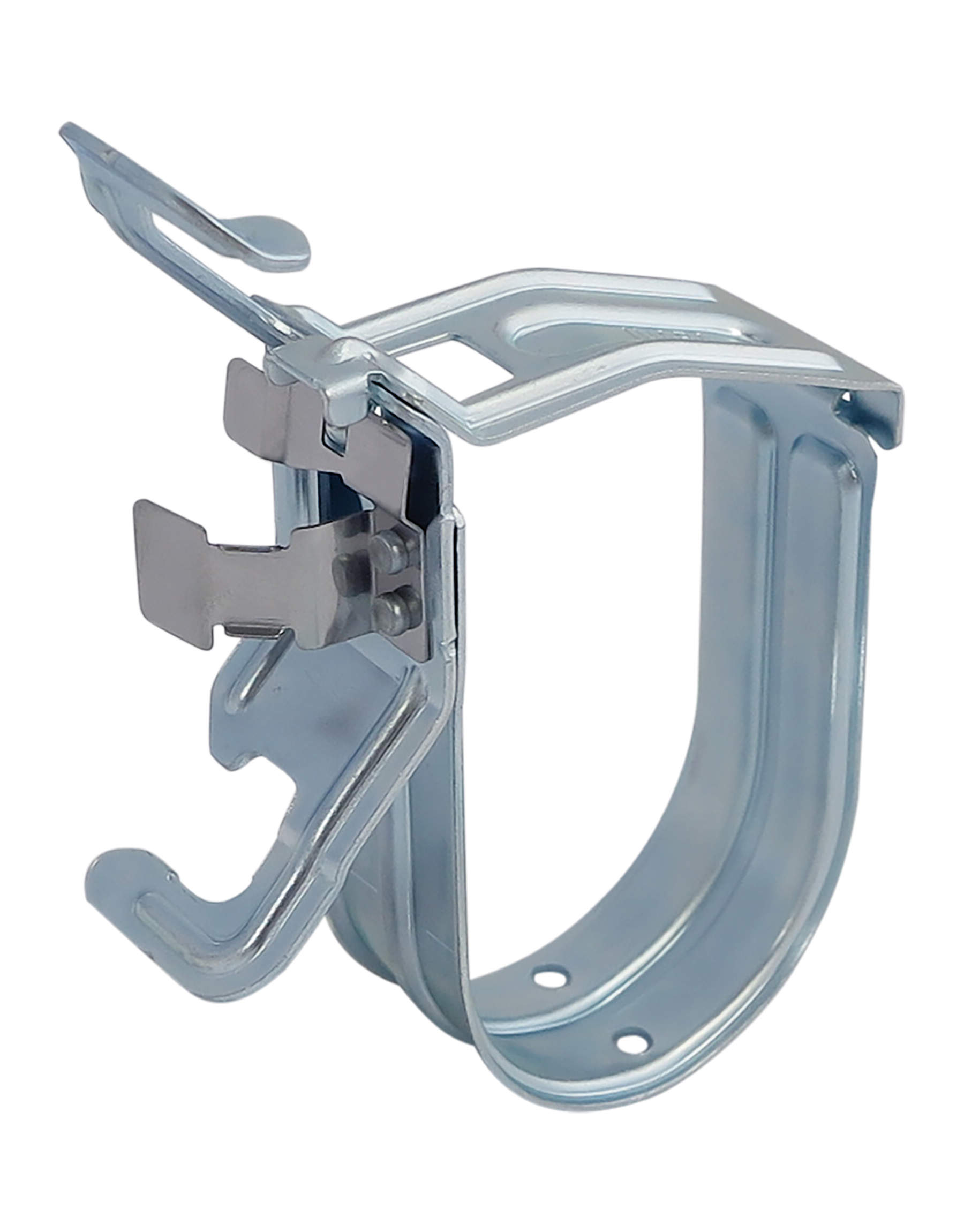

| 60874056252 | SRV-58B | 10×10 | 12.70×22.22～15.88×25.40 | 196N（20kgf） | 84 | 71.5 | 121 | 85 | 51 | 1 | 1 | 1/2×1/2 | 12.70×22.22～15.88×25.40 | 3 3/8 | 2 7/8 | 4 7/8 | 3 3/8 | 2 1/8 | 1/16 | 1/16 | 44 |

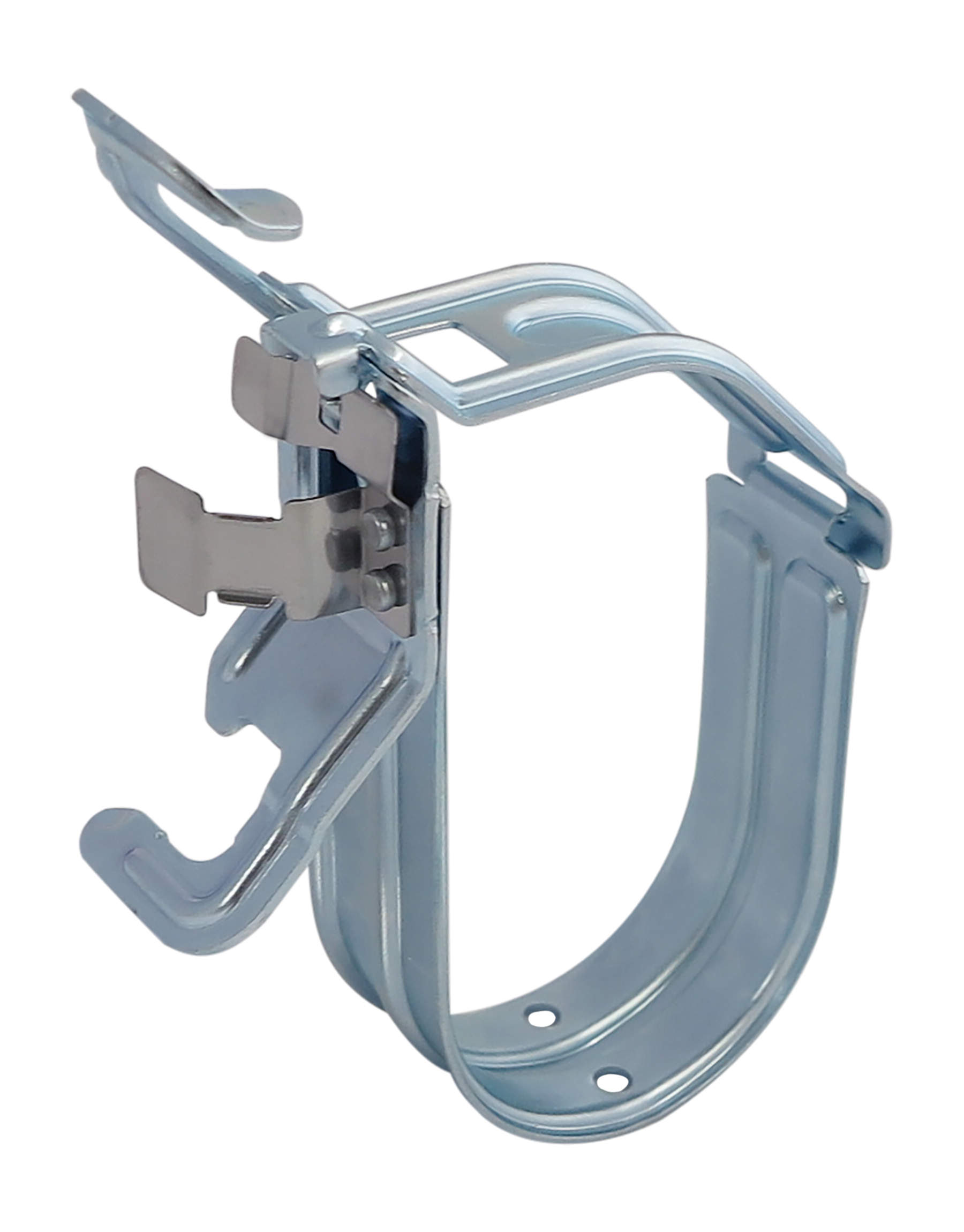

| 60874056262 | SRV-69B | 10×10 10×20 |
19.05×25.40～19.05×28.58 6.35×9.52 |
196N（20kgf） | 84 | 71.5 | 128.5 | 92 | 51 | 1 | 1 | 1/2×1/2 1/2×7/8 |
19.05×25.40～19.05×28.58 6.35×9.52 |
3 3/8 | 2 7/8 | 5 1/8 | 3 5/8 | 2 1/8 | 1/16 | 1/16 | 44 |

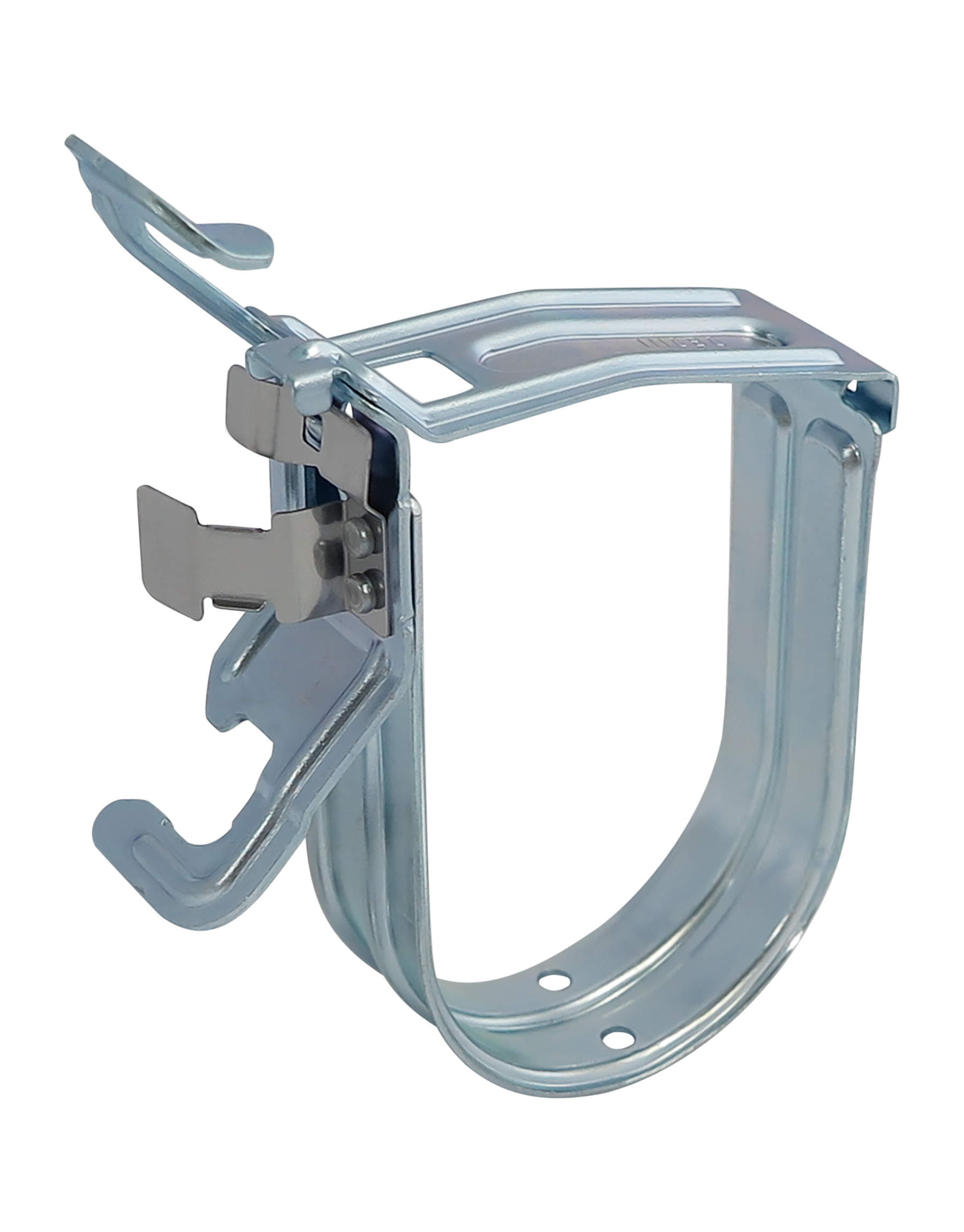

| 60874056272 | SRV-710B | 10×10 10×20 |
22.22×28.58～22.22×31.75 06.35×12.70～12.70×19.05 |
196N（20kgf） | 94 | 81.5 | 129 | 94 | 61 | 1 | 1 | 1/2×1/2 1/2×7/8 |
22.22×28.58～22.22×31.75 06.35×12.70～12.70×19.05 |
3 3/4 | 3 1/4 | 5 1/8 | 3 3/4 | 2 1/2 | 1/16 | 1/16 | 44 |

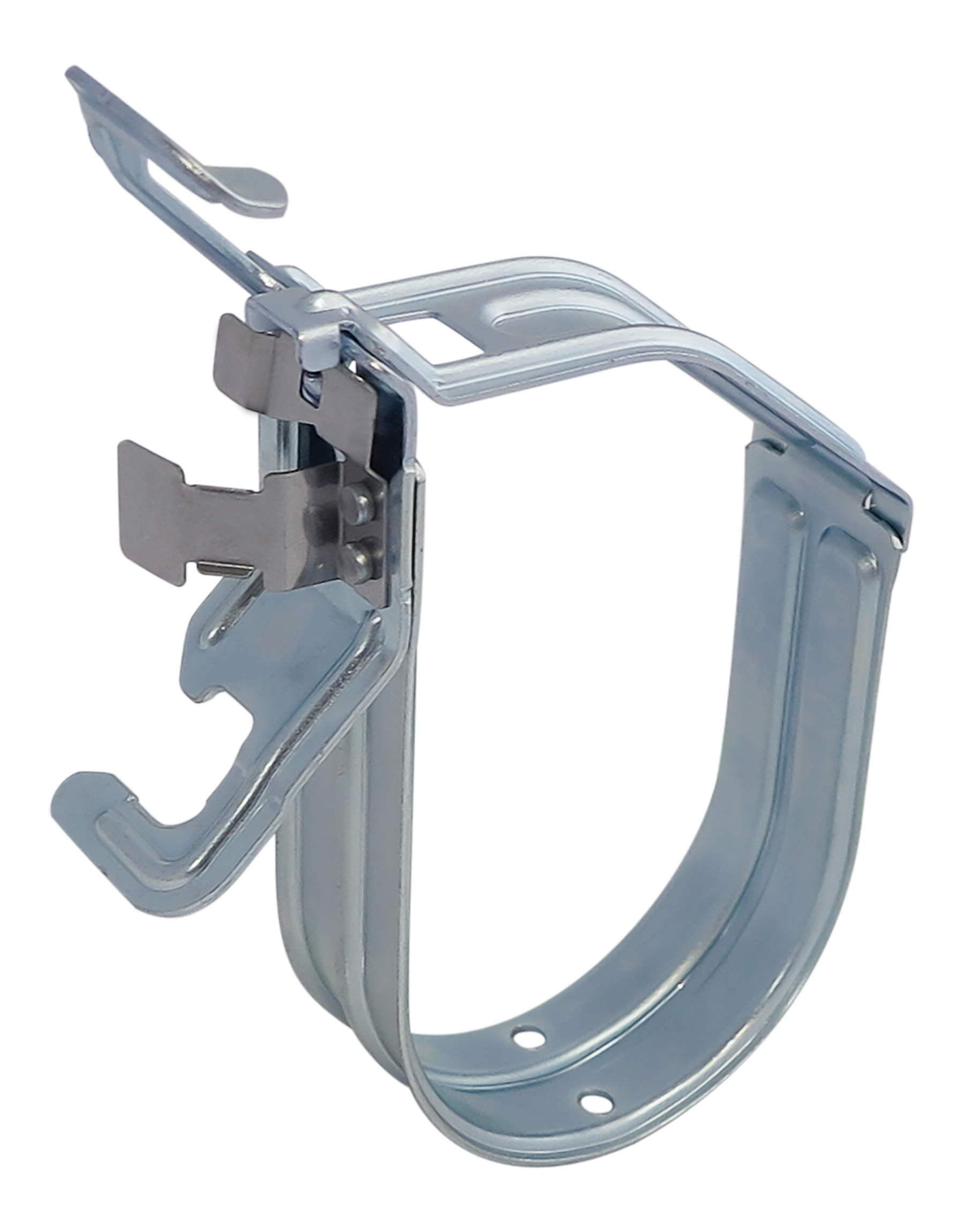

| 60874056282 | SRV-811B | 10×10 10×20 |
25.40×31.75～25.40×34.92 15.88×19.05 |
196N（20kgf） | 94 | 81.5 | 138 | 102 | 61 | 1 | 1 | 1/2×1/2 1/2×7/8 |
25.40×31.75～25.40×34.92 15.88×19.05 |
3 3/4 | 3 1/4 | 5 1/2 | 4 1/8 | 2 1/2 | 1/16 | 1/16 | 44 |

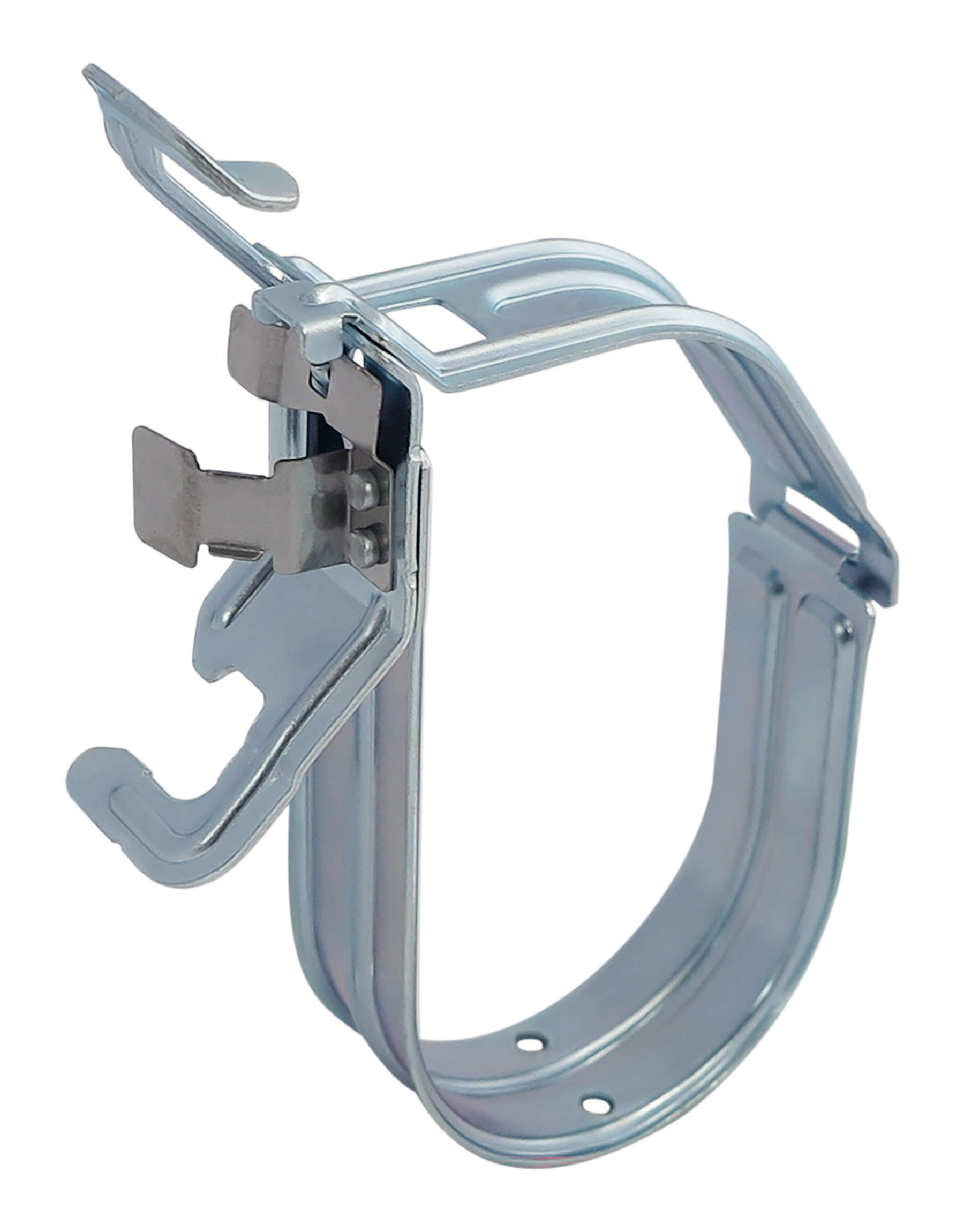

| 60874056292 | SRV-912B | 10×10 10×20 |
28.58×34.92～28.58×38.10 19.05×19.05 |
196N（20kgf） | 94 | 81.5 | 144 | 108 | 61 | 1 | 1 | 1/2×1/2 1/2×7/8 |
28.58×34.92～28.58×38.10 19.05×19.05 |
3 3/4 | 3 1/4 | 5 3/4 | 4 3/8 | 2 1/2 | 1/16 | 1/16 | 44 |

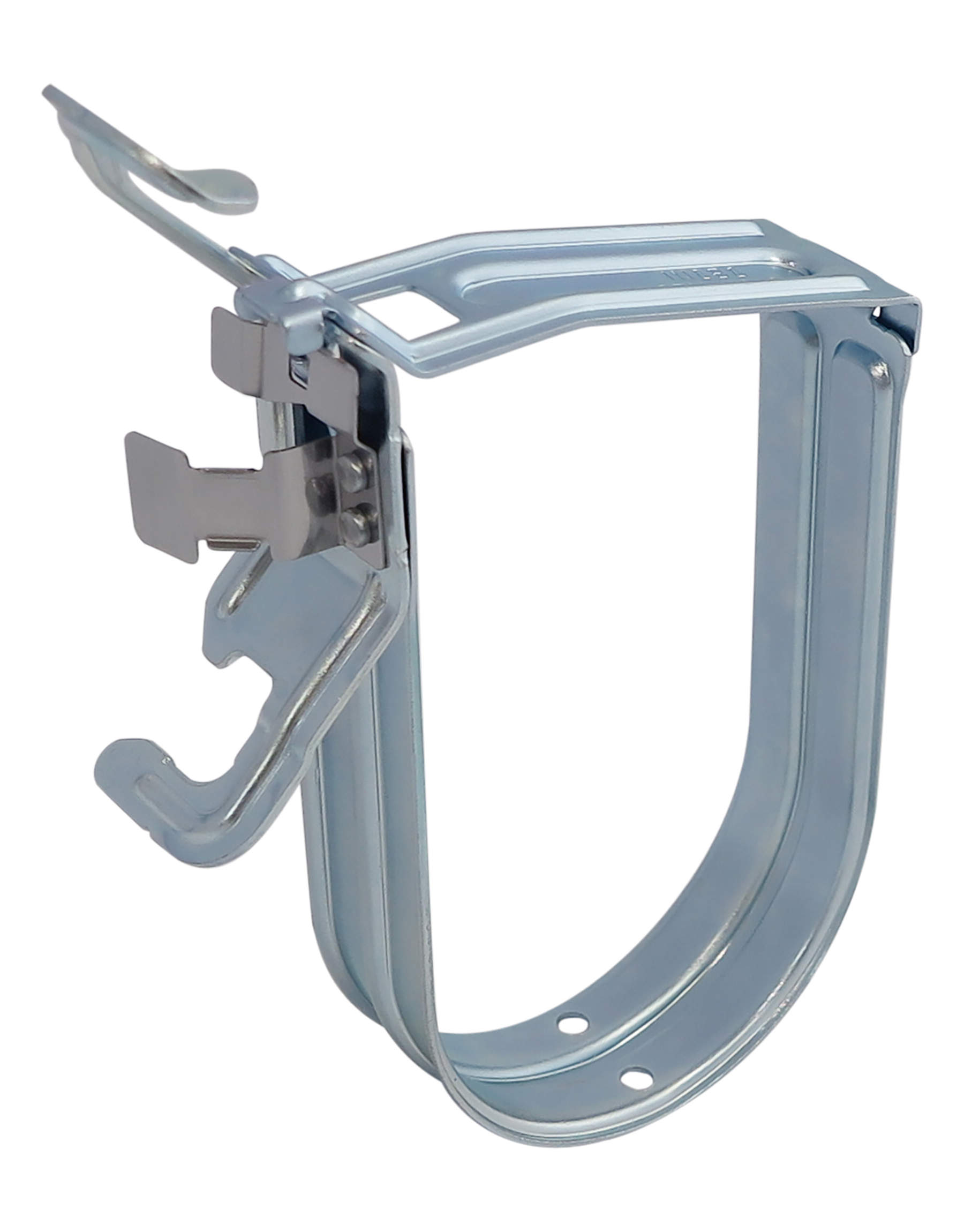

| 60874056297 | SRV-1012B | 10×10 10×20 |
28.58×38.10～25.40×41.28 15.88×28.58 |
196N（20kgf） | 103 | 90.5 | 155 | 119 | 70 | 1 | 1 | 1/2×1/2 1/2×7/8 |
28.58×38.10～25.40×41.28 15.88×28.58 |
4 1/8 | 3 5/8 | 6 1/8 | 4 3/4 | 2 7/8 | 1/16 | 1/16 | 44 |

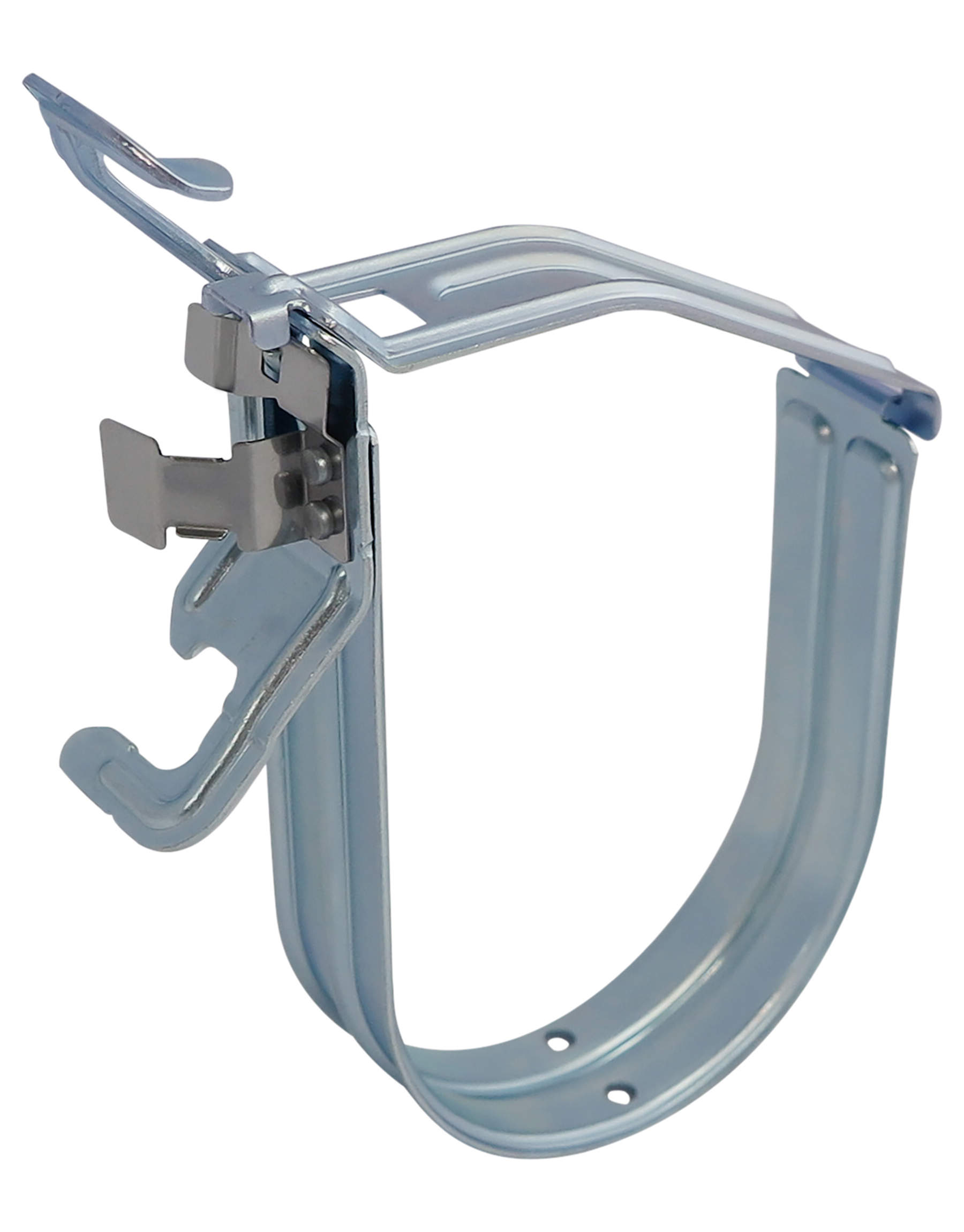

| 60874056302 | SRV-1114B | 10×10 10×20 |
31.75×38.10～34.92×44.45 19.05×38.10 |
196N（20kgf） | 113 | 100.5 | 159 | 123 | 80 | 1 | 1 | 1/2×1/2 1/2×7/8 |
31.75×38.10～34.92×44.45 19.05×38.10 |
4 1/2 | 4 | 6 3/8 | 4 7/8 | 3 1/4 | 1/16 | 1/16 | 44 |
- OBuild to order
- EEnd production
- SAs long as stock
