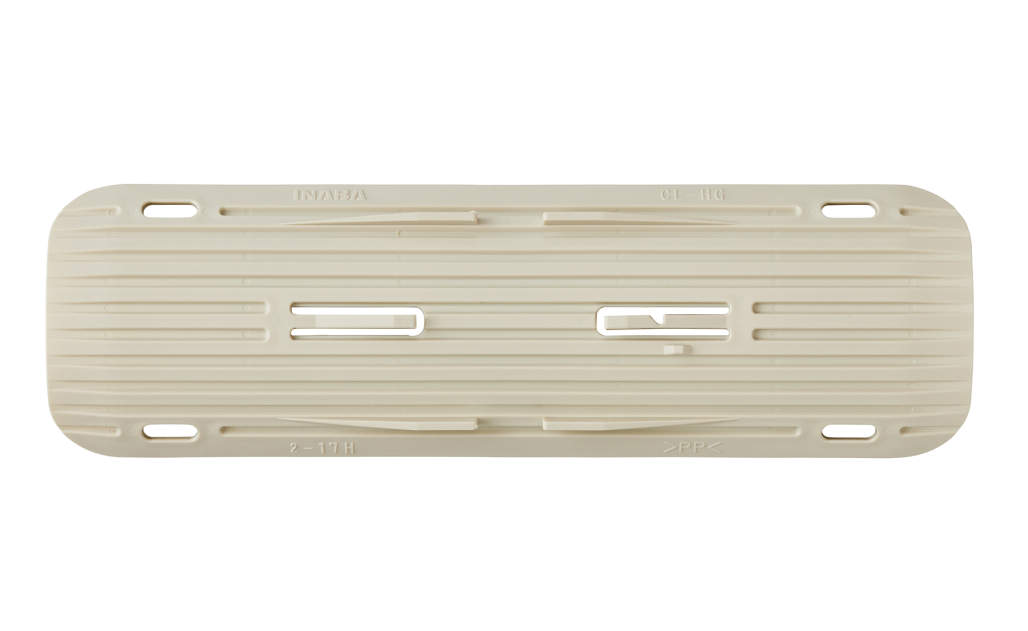

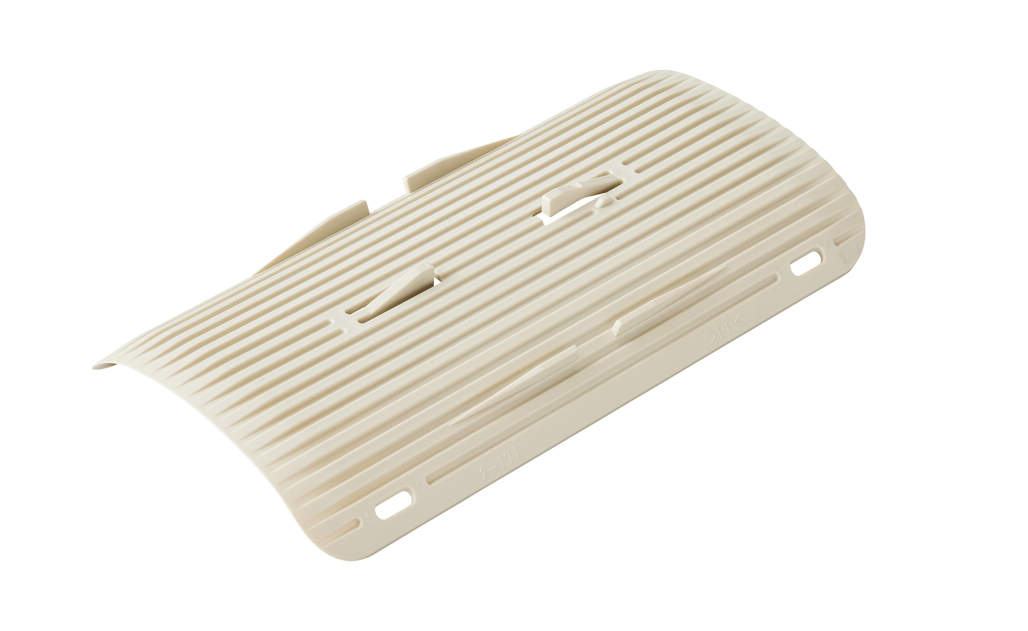

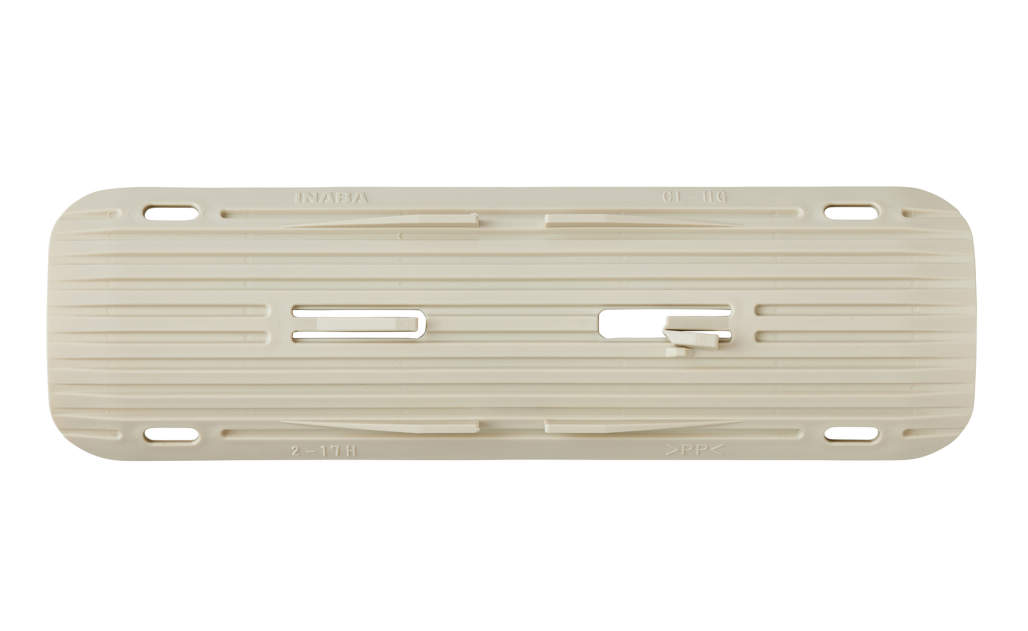

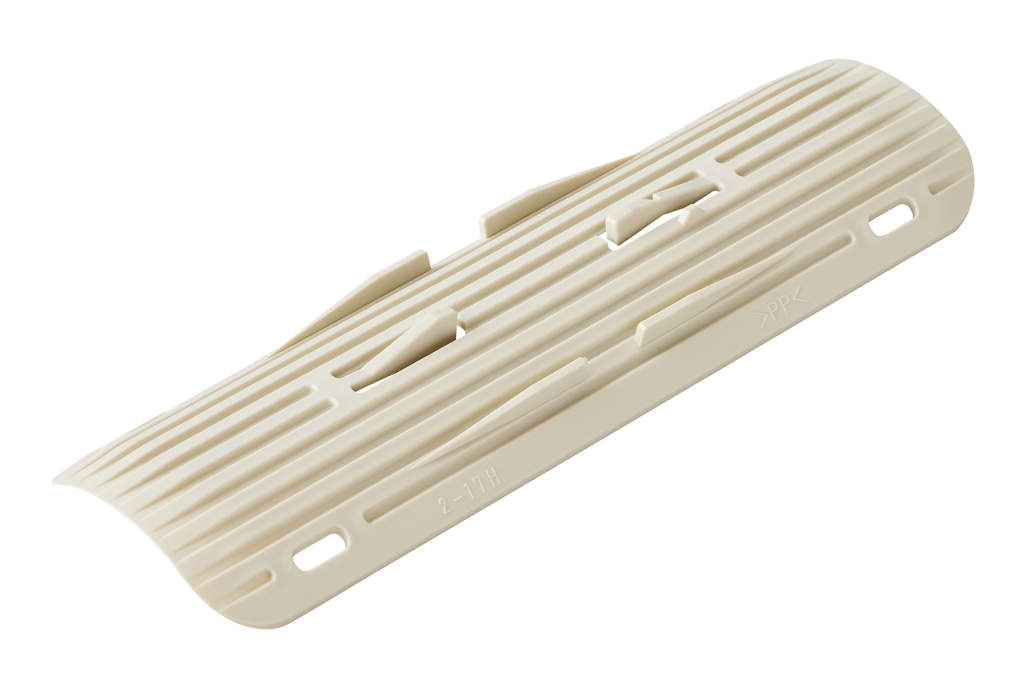

【CL-HG】INSULATION PROTECTION PLATE FOR CHANNEL・ANGLE
Material ・・・ PP
Color ・・・ Ivory

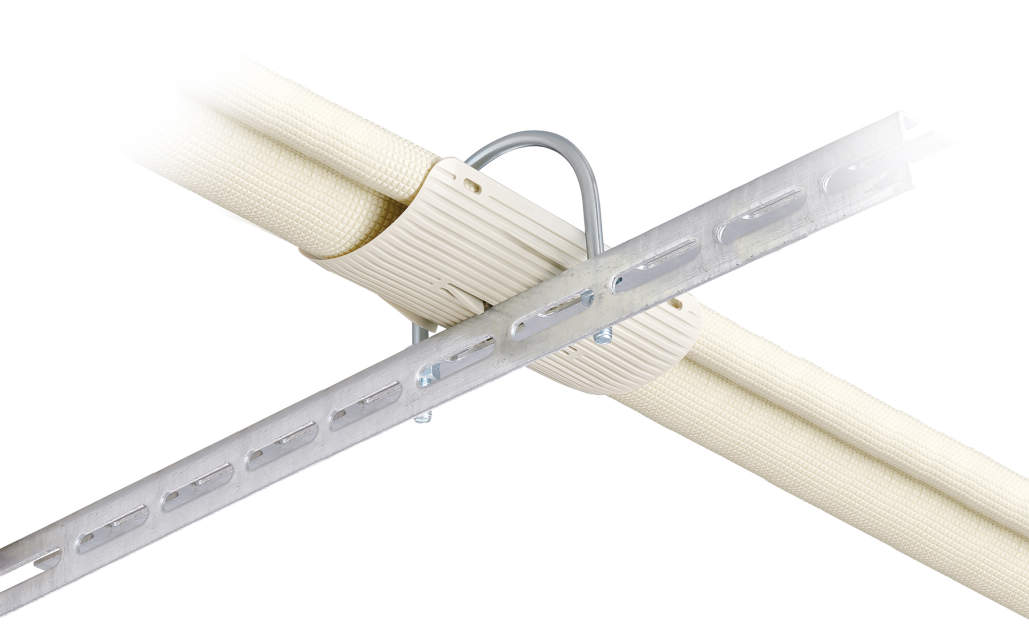

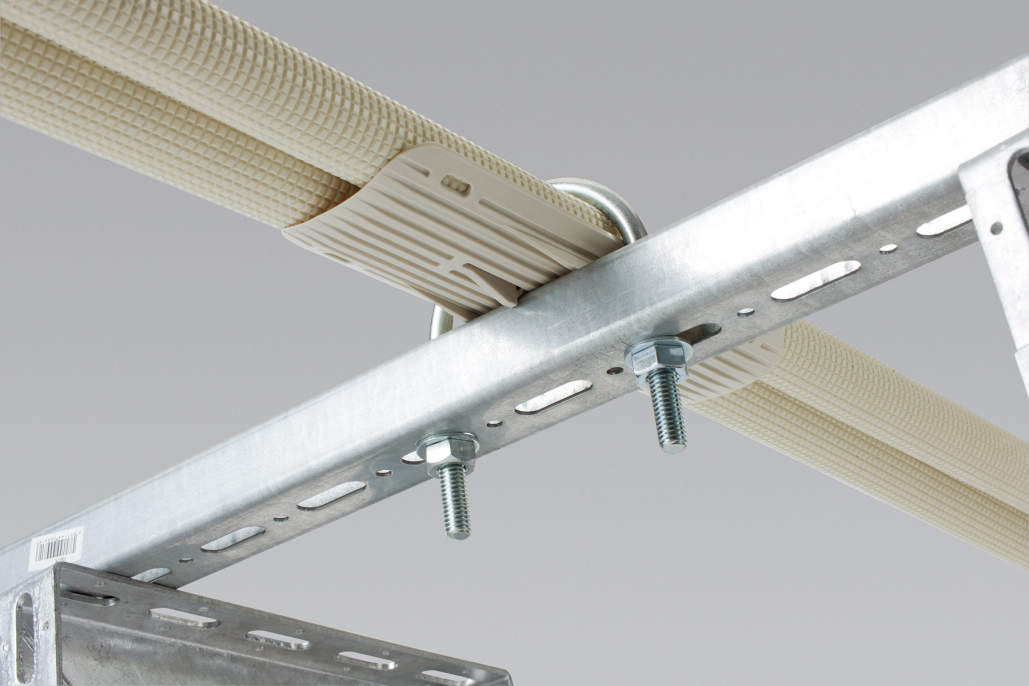

This product is for setting after installation. Insert between insulation and channel・angle after temporary installation for piping.
Do not tighten fixing band too much. To much stress may cause a damage on insulation and dew condensation will be occurred.
|Code number||Model number||【ot】Size||Applicable channel・Angle width||【ot】Correspondence U bolt（ex）||A||Applicable channel・Angle width||A|
|60874060810||CL-HG||Standard||40||【ot】32A-65A by 1pc./150A by 2pcs. Joint||68||1 5/8||2 3/4|
|60874060811||CL-HGL||Large||40||【ot】80A-125A by 1pc||118||1 5/8||4 3/4|
- OBuild to order
- EEnd production
- SAs long as stock
