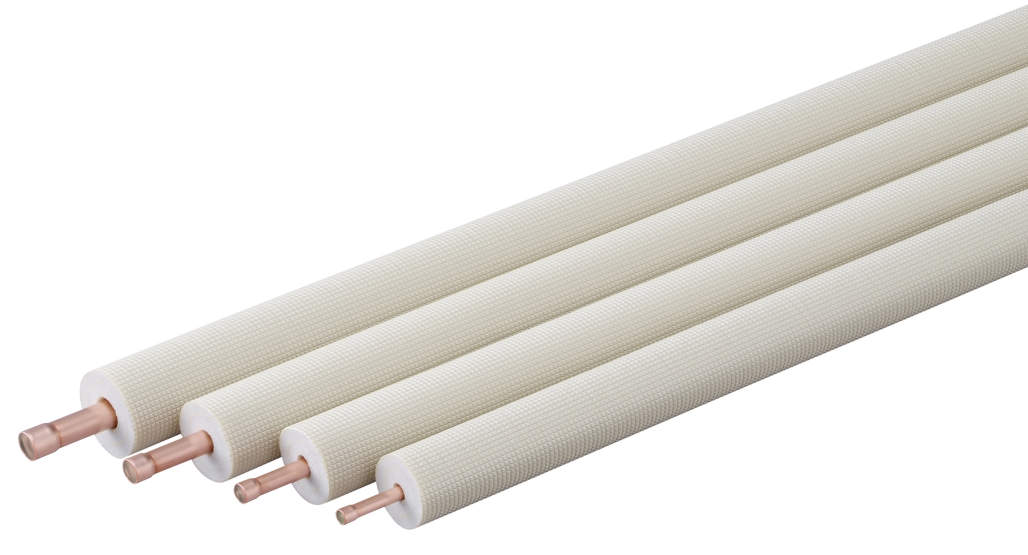

【NH-20H】NEOPIPE 4M

Installation Materials for Air-Conditioners 2020 6

Donwload data

Code number	Model number	生産	対応冷媒種別	銅管外径D	銅管材厚t	銅管質別	保温材外径d	保温材材厚	Copper tube (O.D.×Length)	Copper thickness (mm)	Insulation thickness (mm)	Copper tube (O.D.×Length)	Copper thickness (inch)	Insulation thickness (inch)
60874070590	NH-1040N-20H	-	2	31.75	1.1	1/2H	73	20
60874070597	NH-740N-20H	-	3	22.22	1	1/2H	64	20
60874070598	NH-840N-20H	-	3	25.4	1	1/2H	67	20
60874070599	NH-940N-20H	-	2	28.58	1	1/2H	70	20
60874070632O	NH-1240Z-20H	受注	2	38.1	1.35	1/2H	80	20
60974065305O	NH-340JE-20H								3/8×4m	0.8	20	3/8×13ft	0.031	25/32
60974065315O	NH-440JE-20H								1/2×4m	0.8	20	1/2×13ft	0.031	25/32
60974065325O	NH-540JE-20H								5/8×4m	0.8	20	5/8×13ft	0.031	25/32
60974065335O	NH-640JE-20H								3/4×4m	1.0	20	3/4×13ft	0.039	25/32
60974065345O	NH-740JE-20H								7/8×4m	1.0	20	7/8×13ft	0.039	25/32
60974065355O	NH-840JE-20H								1×4m	1.0	20	1×13ft	0.039	25/32
60974065365O	NH-940JE-20H								1 1/8×4m	1.0	20	1 1/8×13ft	0.039	25/32
60974065375O	NH-1040JE-20H								1 1/4×4m	1.1	20	1 1/4×13ft	0.043	1
60974065385O	NH-1140JE-20H								1 3/8×4m	1.2	20	1 3/8×13ft	0.047	1
60974065395O	NH-1240JE-20H								1 1/2×4m	1.35	20	1 1/2×13ft	0.053	1
60974066765O	NH-1340JE-20H								1 5/8×4m	1.45	20	1 5/8×13ft	0.057	1
60974066775O	NH-1440JE-20H								1 3/4×4m	1.55	20	1 3/4×13ft	0.061	1
