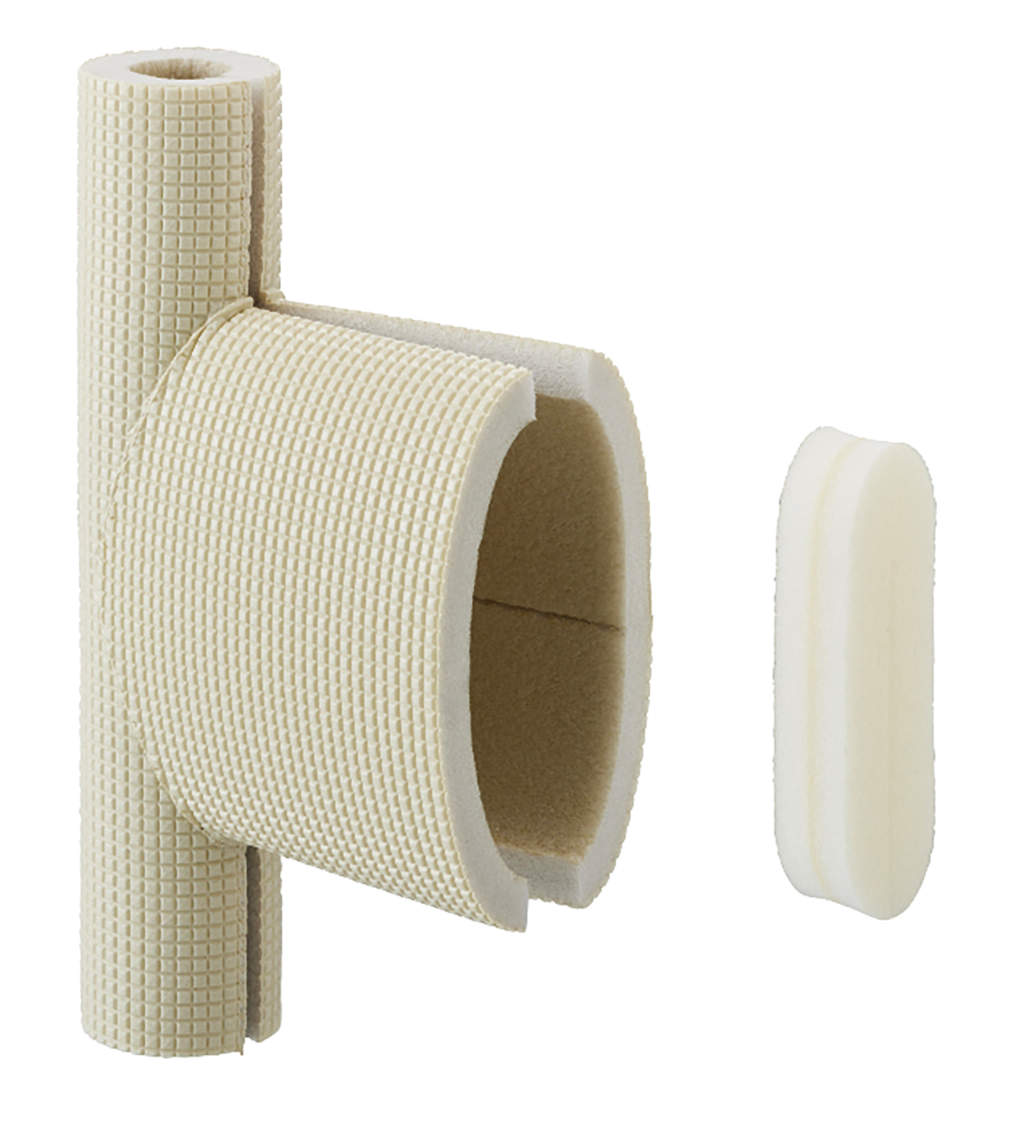

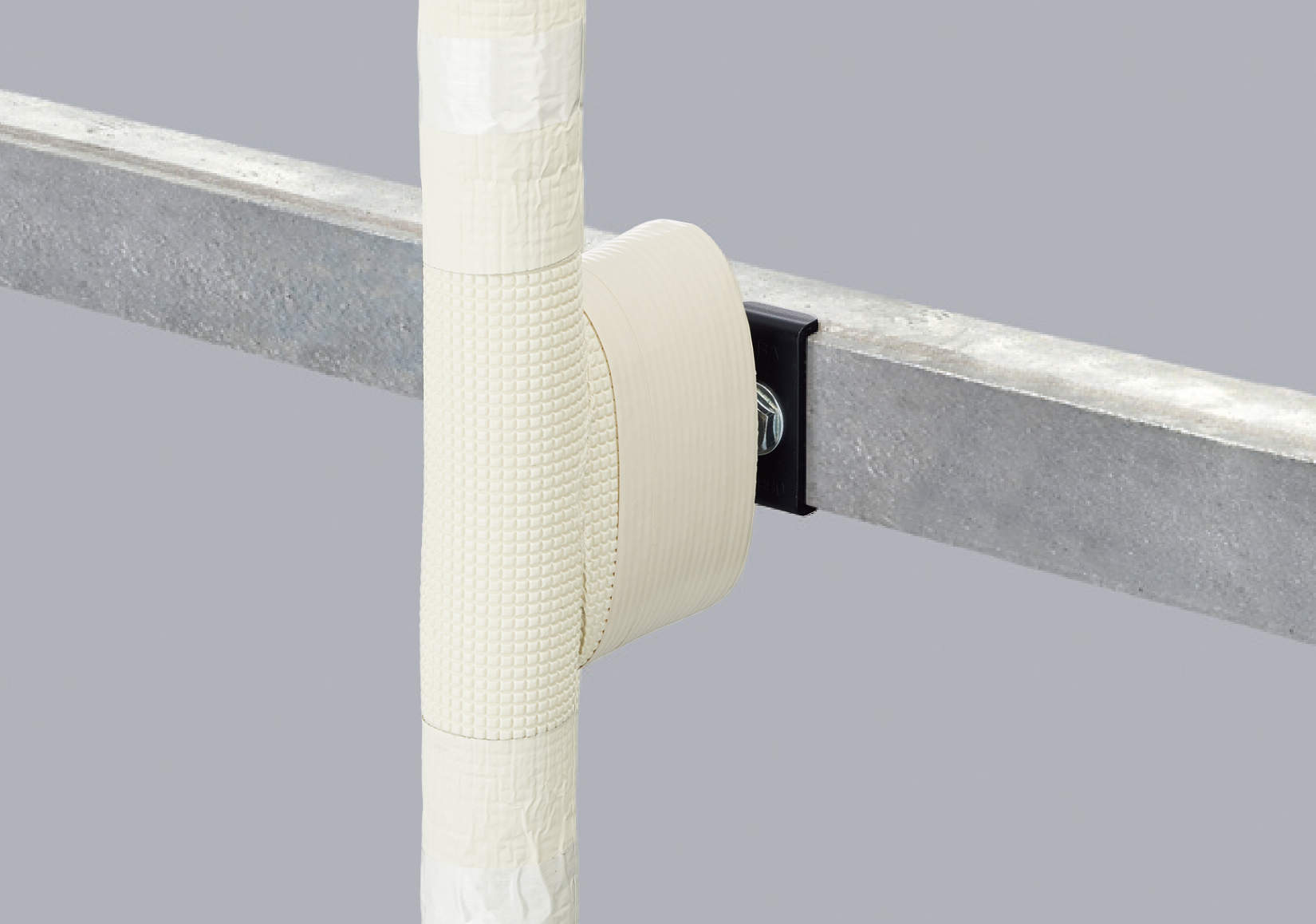

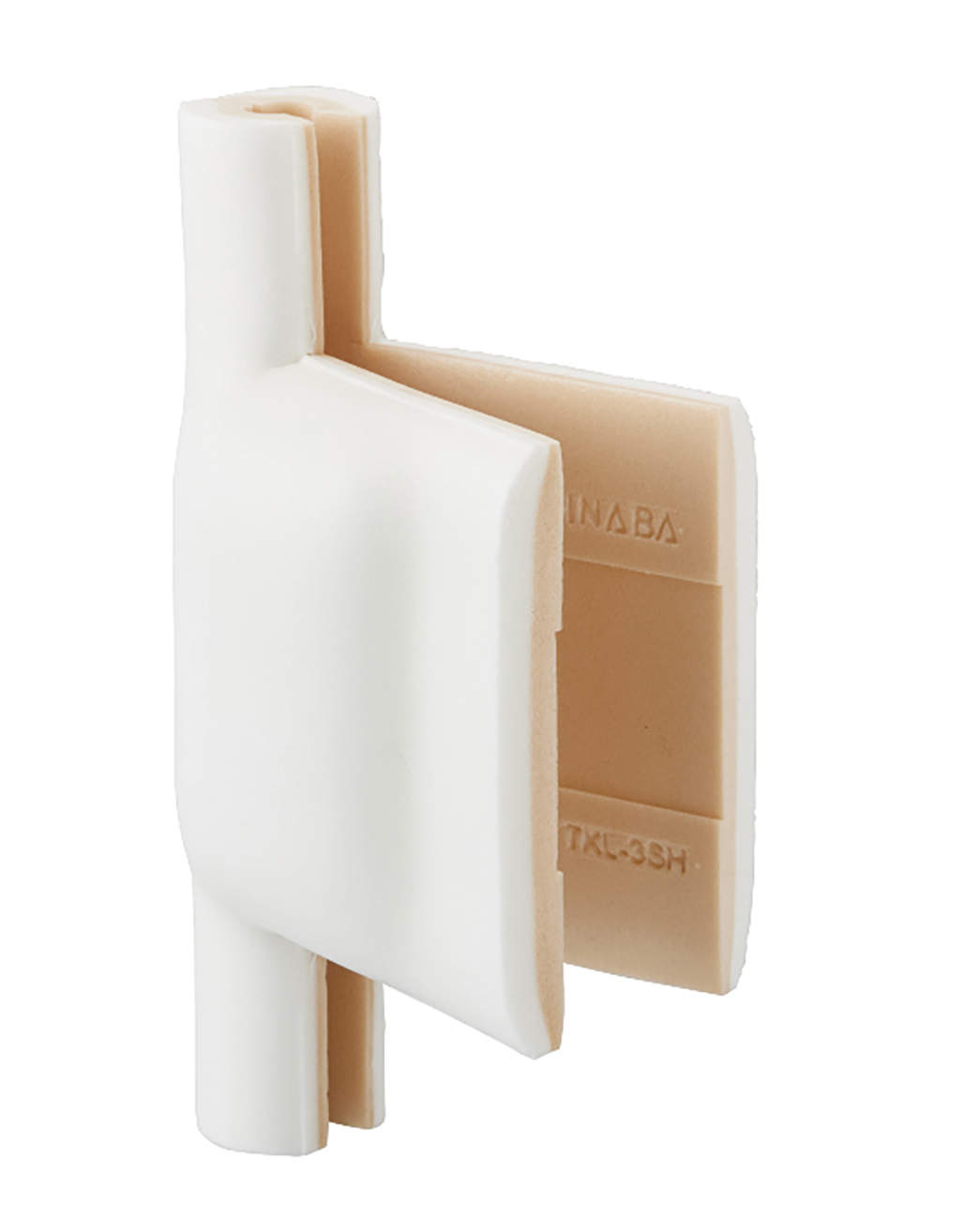

【TKL-H】Insulation cover

Donwload data

Code number	Model number	Compliant PIPELOCK TKL	Insulation thickness	A	B	C	D
60874051603	TKL-3SH	TKL-3K	10	220	120	90	52
60874051604	TKL-4SH	TKL-4K	10	220	120	90	52
60874051605	TKL-5SH	TKL-5K	10	220	120	90	52
60874051606	TKL-6SH	TKL-6K	10	220	120	90	44
60874051607	TKL-7SH	TKL-7K	10	220	120	90	44
60874051608	TKL-8SH	TKL-8K	10	220	120	90	44
60874051609	TKL-9SH	TKL-9K	10	220	120	90	44
60874051610	TKL-10SH	TKL-10K	10	220	120	90	44
60874051611	TKL-11SH	TKL-11K	10	220	120	90	44
60874051612	TKL-12SH	TKL-12K	10	220	120	90	44
60874051613	TKL-13SH	TKL-13K	10	220	120	90	44
60874051614	TKL-14SH	TKL-14K	10	220	120	90	44
60874051703	TKL-3DH	TKL-3K	20	240	140	80	72
60874051704	TKL-4DH	TKL-4K	20	240	140	80	72
60874051705	TKL-5DH	TKL-5K	20	240	140	80	72
60874051706	TKL-6DH	TKL-6K	20	240	140	80	64
60874051707	TKL-7DH	TKL-7K	20	240	140	80	64
60874051708	TKL-8DH	TKL-8K	20	240	140	80	64
60874051709	TKL-9DH	TKL-9K	20	240	140	80	64
60874051710	TKL-10DH	TKL-10K	20	240	140	80	64
60874051711	TKL-11DH	TKL-11K	20	240	140	80	64
60874051712	TKL-12DH	TKL-12K	20	240	140	80	64
60874051713	TKL-13DH	TKL-13K	20	240	140	80	64
60874051714	TKL-14DH	TKL-14K	20	240	140	80	64
